Descripción

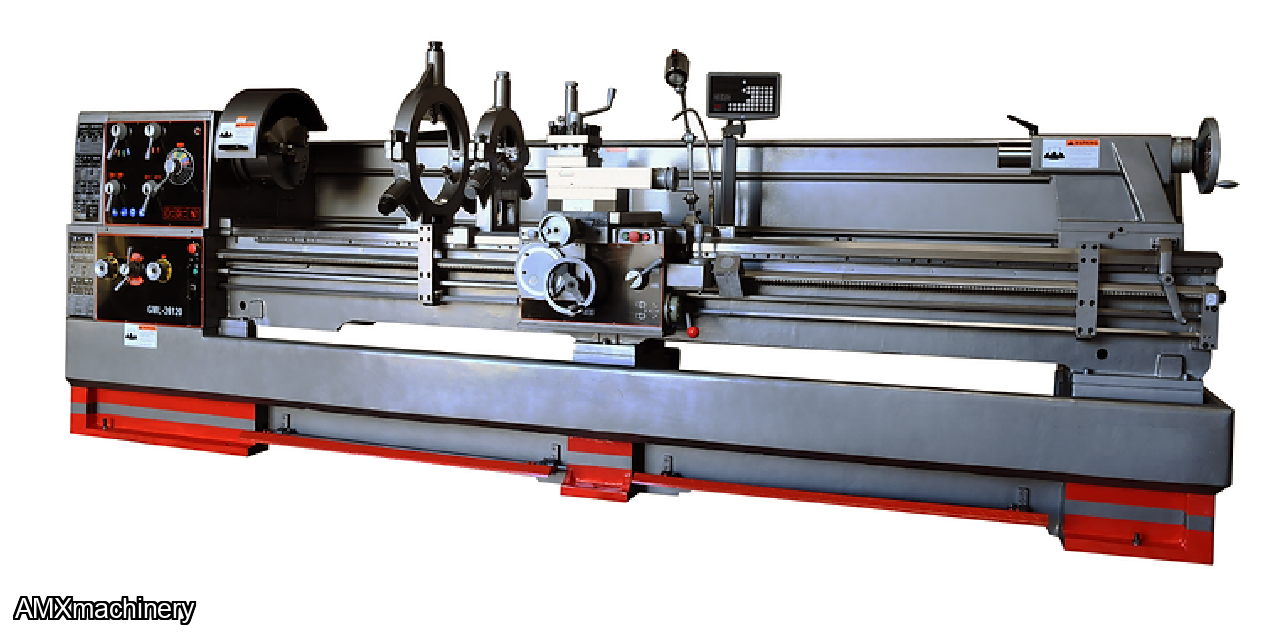

TORNO 32 x 80'' PARTE: 2GM-GML-3280
Heavy Duty Precision Gap Bed Lathe 32” x 80” 4-1/8” bore, 15HP Motor.
- ISO 9001 certified
- Large spindle bore 4-1/8”
- 4-way rapid traverse on Longitudinal and cross ways
- All dual inch/metric dials.
- solid cast iron machine base
- Heavy Duty main motor 15 HP
- 12 spindle speeds from 25-1,600 rpm
- 54 kinds of inch threads and metric threads
- Threading and feeding rate change by levers
- Spindle is balanced, hardened and precision ground
- Spindle is supported at 3-point by high precision bearings
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
- Tools box with leveling pads
Max. swing over bed | 32” |
Max. length of workpiece | 80” |
Max. swing over cross slide | 22-7/16” |
Max. Swing in gap | 40-1/2” |
Width of Bed | 16” |
Effective length in gap to spindle | 10” |
Effective length in gap to chuck jaws | 7” |
Spindle bore | 4-1/8” , D1-8 |
Taper of spindle center | MT#5 with1:20 reducing sleeve |
Spindle speeds | 25-1,600 rpm / 12 steps |
Longitudinal feeds | 0.0016-0.055 IPR, 60 kinds |
Cross feeds | 0.0008-0.027 IPR, 60 kinds |
Inch threads | 80-7/16”TPI, 54kinds |
Metric threads | 0.45-120 mm , 54 kinds |
Module threads | 0.25-60 mm, 46 kinds |
Diameter pitch threads | 60-0.25 DP , 42 kinds |
Max. travel of top slide | 9-1/8” |
Max. travel of cross slide | 16-1/2” |
Longitudinal rapid traverse | 18 ft / min. |
Cross rapid traverse | 8 ft / min. |
Diameter of tailstock quill | 3-1/2” |
Max. travel of tailstock quill | 6” |
Taper of tailstock quill center | M.T. # 5 |
Max. weight of workpiece | 2,000 LBS |
4-way tool post size | 1” x 1” |
Longitudinal leadscrew diameter / pitch | Diameter: 3” Pitch: 2 TPI |
Main Motor | 15 HP, 220V/40A / 440V/20A, 3 phase, prewired on 220V |
Rapid traverse motor | 1/3 HP, 220V/440V, 3 phase, prewired on 220V |
Coolant pump motor | 1/8 HP,220V/440V, 3 phase, prewired on 220V |
Machine weight, approx. | 9,350 LBS |
Overall dimensions, LxWxH | 146” x 48” x 67” |
- Free SINO DRO, installed
- Free Taper turning attachment, , installed
- 12” 3-jaw chuck with top reversible jaws
- 16” 4-jaw chuck
- 20” Face plate
- 10” drive plate
- ¾”-7-1/2” steady rest with roller jaws
- 1”-5” follow rest
- Removable gap
- 4-way tools post
- Chuck guard with safety shut off
- Foot brake
- Halogen Work light
- coolant system
- Full length rear splash
- (2) dead centers and (1) reducing sleeve
- Thread chasing dial
- Tool box and leveling pads
