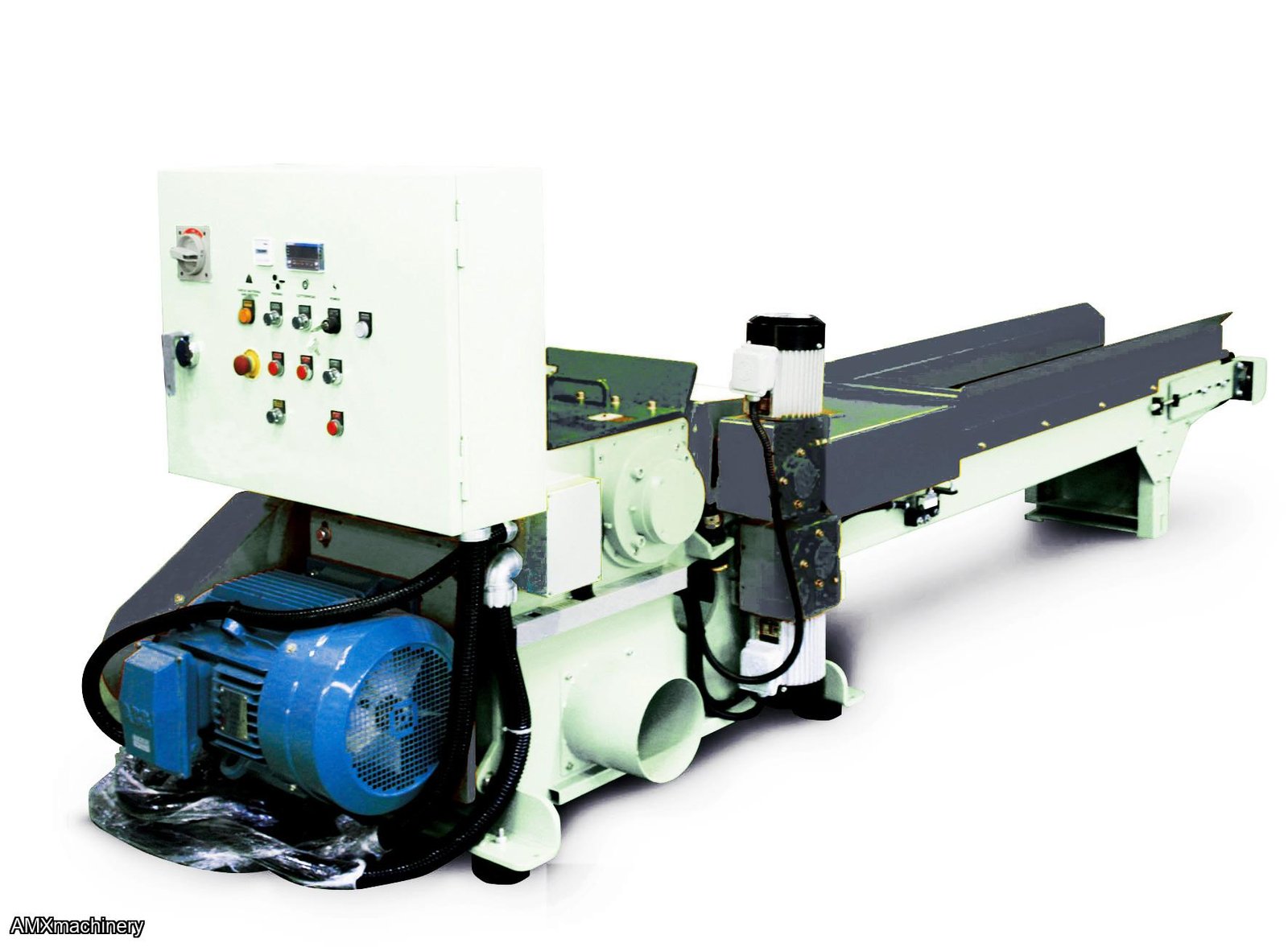

ASTILLADORA - HORIZONTAL - 24 X 4 PULGADAS - CON BANDA TRANSPORTADORA
AMXmachinery1
Descripción
PARTE: 2TA-WG-2404HC - ASTILLADORA - HORIZONTAL - 24 X 4 PULGADAS - CON BANDA TRANSPORTADORA
Features:
- A specially designed, powerful crusher for different materials such as wood, MDF, particle board,plastic, rubber, corn cob, etc.
- Excellent wearing ability and impact-resistant for time & labor saving.
- Large busting capacity and easy feeding system.
- The shaft rest for the cutter head is constructed by round hollow with special angle to keep cooling for long hours' usage
- Cutter head angle cutting design allows aggressive cutting rates & high speed shredding of waste with maximum durability.
- Movable screen for changing the size of chips and easy to clean-up.
- Energy efficient & quiet running industrial motor.
|
SPECIFICATIONS |
WG-1502H |
WG-2502H |
WG-1504HC |
WG-2404HC |
|
Entrance Capacity (L x W) |
15-3/8" x 2-3/8" |
25" X 2-3/8" |
15-3/8" x 4" |
24" X 4" |
|
Rotary Cutter (Sets) |
18 |
30 |
18 |
30 |
|
Conveyor In-feed Length |
-- |
-- |
98” |
98” |
|
Stationary Cutter (Sets) |
4 |
4 |
4 |
4 |
|
Cutter Speed (RPM) |
575 |
540 |
680 |
680 |
|
Standard Finish Size or Option |
1/2" |
1/2" |
1/2" |
1/2" |
|
Cutter Head Motor |
20 HP |
30 HP |
20 HP |
30 HP |
|
Feed Motor |
-- |
-- |
1 HP x 2 |
1 HP x 2 |
|
Dust Hood |
8” x 1 |
8” x 1 |
8” x 1 |
8” x 1 |
|
Machine Size (L x W x H) |
126" x 53” x 36" |
126" x 53” x 47" |
155" x 51" x 37" |
155" x 51" x 46" |
