Descripción

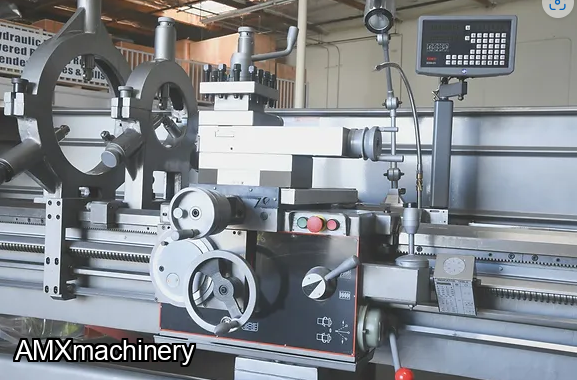

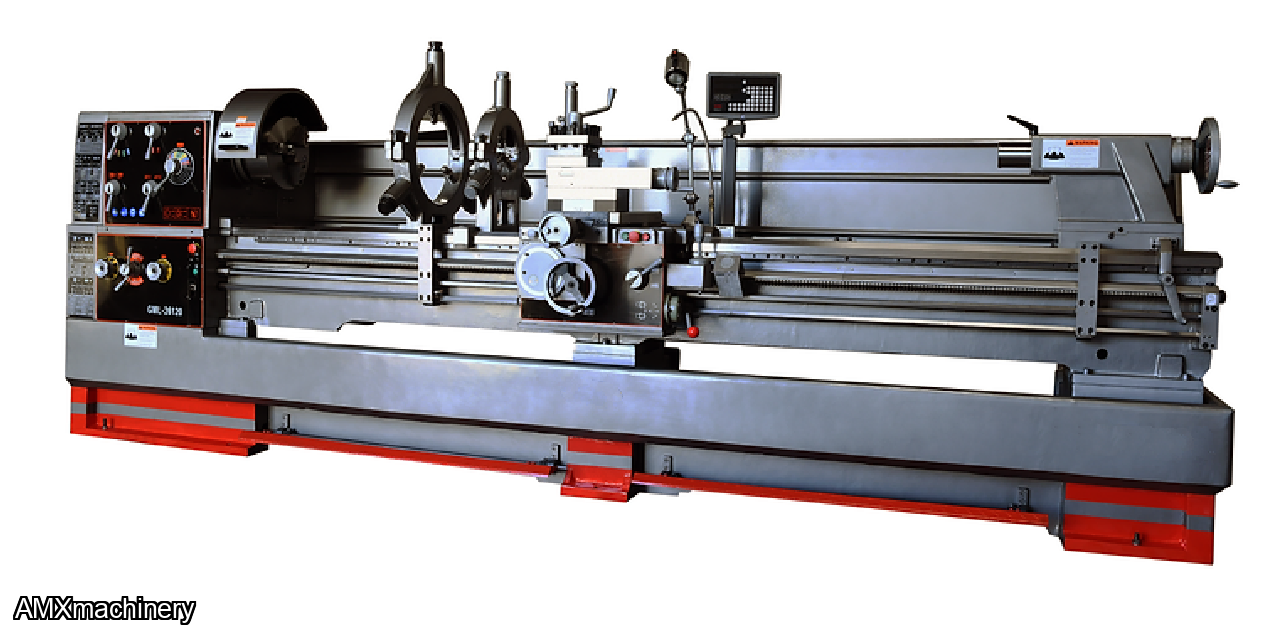

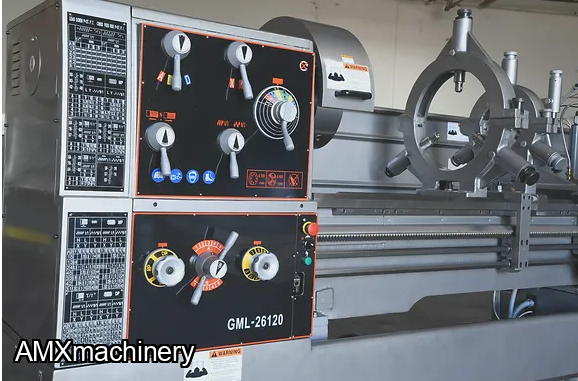

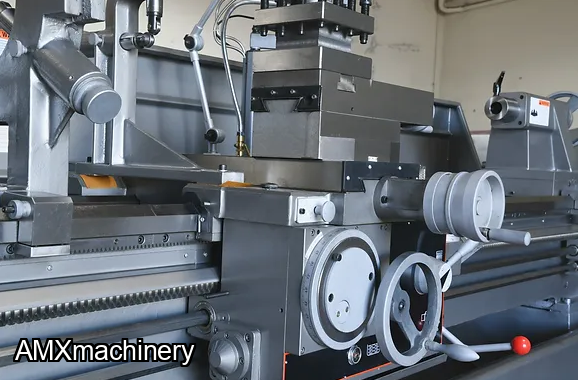

TORNO 26 X 80'' PARTE: 2GM-2680
26” x 80”, 4-1/8” bore, 10HP
ISO 9001 certified- Large spindle bore 4-1/8”
- Heavy Duty spindle D1-8
- Heavy Duty guideway width 16”
- Heavy Duty main motor 10HP
- 4-Way Rapid Traverse
- 16 spindle speeds from 25-1,600 rpm, 16 speeds
- 54 kinds of inch threads, and 54 kinds of metric threads
- Threading and feeding rate change without changing gears
- Spindle is balanced, hardened and precision ground
- Spindle is supported at 3-point by high precision bearings
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
- SINO DRO + Glass Scales
- Carriage Stop
- 12” 3-jaw chuck with top reversible jaws, direct mount
- 16” 4-jaw chuck, direct mount
- 18” Face plate
- 7-1/2” large steady rest with roller jaws
- 3” follow rest
- Removeable gap
- 4-way tools post
- Foot brake
- Halogen Work light and coolant system
- Full length splash guard
- Dead centers
- Thread chasing dial
