Identificador: 2555
Abierta
.PNG)
Descripción

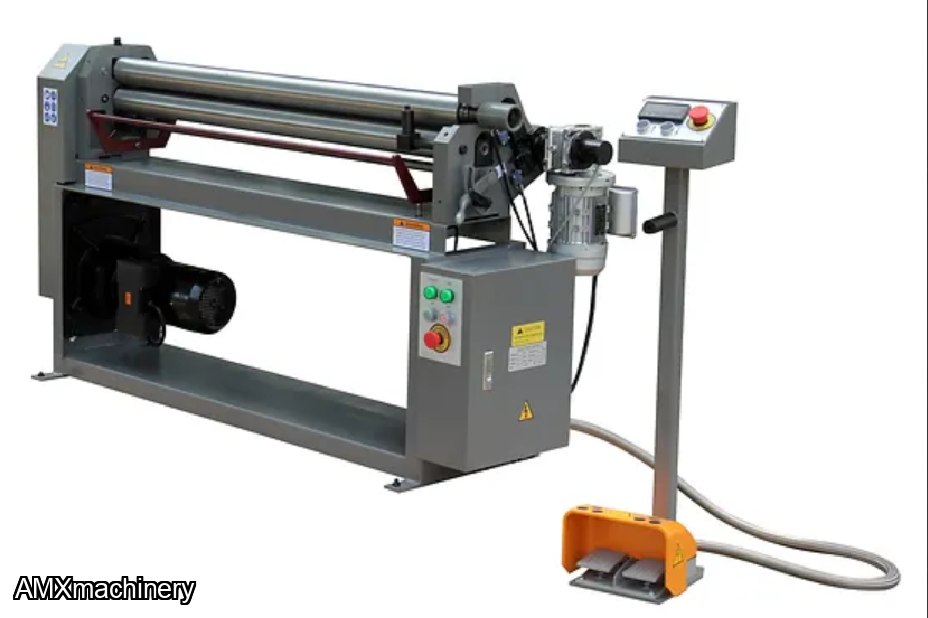

ROLADORA 50'' x 14Ga PARTE: 2GM-PSR-5014E-1PH
Power Bending roll up/down with push button
This machine has a 2 HP Motor, rated at 220V, Single Phase. Min. roll bending dia.capacity 3.5"
- ISO 9001 certified
- Bending roll is powered up/down with push button and LED display for repeat jobs and can make cone parts.
- One handle to control pinch roll up/down, more convenient and efficiency
- Heavy welded all steel construction for maximum rigidity
- Silence electrical motor
- Quick release top roller
- Two rolls are driven
- Precision ground rollers
- 1/4” roll opening
- All three rolls are made of high grade alloy steel, hardened up to 50 HRC
- All rolls run forward and reverse
- Safety type removable foot pedal
- Overload protection and disconnect switch
- One year warranty for parts
- Cone attachment
- Electrical cabinet
- Removable safety foot pedal
Rolling capacity: Mild steel Stainless steel Soft aluminum Min. thickness capacity |
50"x14Ga. 50"x18Ga. 50” x 10Ga 50"x26Ga. |
Rolls size, length x dia Min. roll bending dia. capacity | 50”x 3” 3 1/2" |
| Rolls speed | 201” / min. |
| Rolls opening | ¼” |
| (3) grooves sizes | 5/16”, 3/8” , ½” |
| Main motor | 2 HP, 220V, 1ph |
| Net weight | 985 LBS |
Machine dimensions, LxWxH | 68x32x49” |
