Identificador: 1792 Abierta

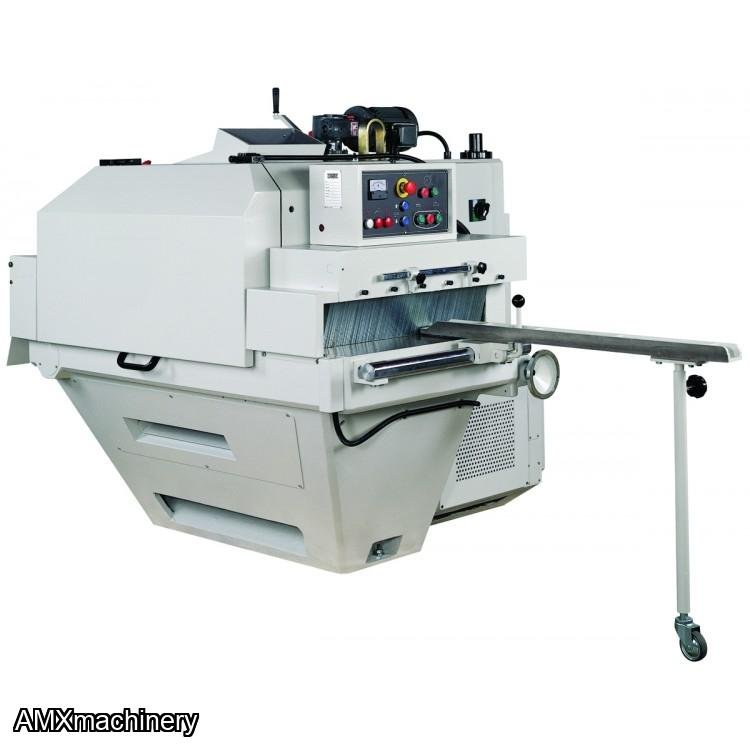

SIERRA MULTIPLE

SIERRA MULTIPLE

AMXmachinery1

Contacte al Vendedor
Descripción
PARTE: 2CK-MRS12


FEATURES

  • The Frame is Cast Iron, all the main parts are enclosed, ensuring protection and perfect stability
  • Straight line caterpillar feeding with heavy guided chain with rubber inserts. Chain blocks are special cast iron with heat treated & precision ground pins
  • Nickel chrome steel Saw Arbor with 70 mm OD – dble. keyed quick removal sleeve
  • 3 sets of Anti-Kickback Fingers 2 top, 1 bottom
  • Powered Rise & Fall to the pressure rollers
  • New style round Fence Bar support with quick shift long fence
  • Automatic Centralized lubrication system
  • Automatic Star-Delta Starter (slow speed start) and low voltage controls
  • C.E style European guard & safety features
  • Long fence for control of long material
  • Automatic star-delta starter (slow soft-low amperage start) and low voltage controls
  • Electrics to 230/460 or575 volts 3 phase 60 cycles – as required to UL/CSA Standards
  • With 3 rubber coated hold down rollers at outfeed end of machine
  • Overload protection device – Feed speed will slow down automatically if saw motor becomes overloaded

Maximum working thickness

3 3/8” (85mm) with standard pressure shoe

*2 ¾” (70mm) with short stock attachment:

Minimum Length

12” with short stock attachment

Saw Sleeve Usable Length

(between outside saws)

12″ (305 mm)

Sawblade Dia.

200 to 305mm (8” to 12”)

Saw arbor Sleeve OD (Diameter)

70 mm

Saw arbor diameter

50 mm

Saw arbor vertical adjustment

3.6” (90 mm)

Saw Motor HP

60 HP 460 volt

Powered Pressure Rollers(Rise/Fall)

½ HP motor

Saw Arbor Speed

3800 RPM

Feed Speeds

25 – 100 FPM

Feed Motor HP

3 or 5 HP

Voltage

Machine can be ordered 230,460,
or 575 v, stock machine is 460 v electrics

Table Size

30” x 60″

Table Height from floor

33.5″

Net Weight

4510 lbs.

Machine Dimensions

82.68” 59” x 56 ½”
