Descripción

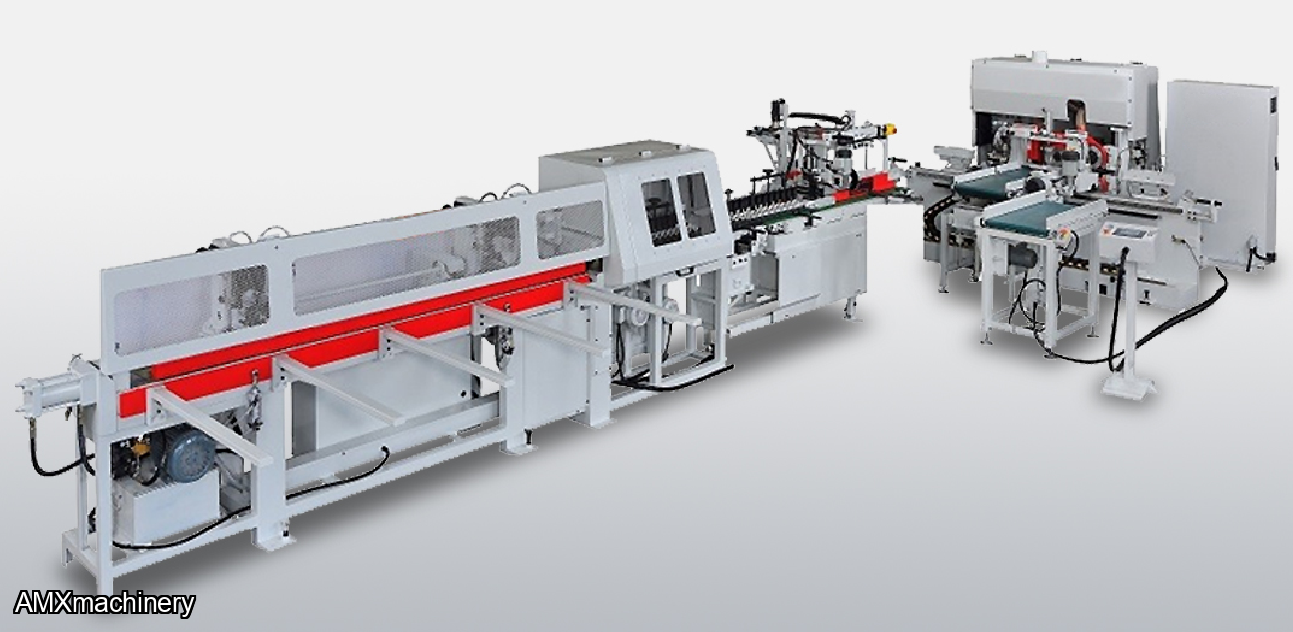

FINGER JOINT SEMI AUTOMATICA PARTE: 2CK-FL14
Represents a state-of-the-art finger jointing production line, meticulously crafted to transform extra short wood waste into valuable materials, all the while upholding an exceptional balance between performance and cost-effectiveness. Its compact design with multiple automatic features and options makes it an ideal solution for a small sized finger jointing operation. By utilizing a solitary shaper setup, this system delivers extraordinary value in performance and affordability, positioning it as an enduring revolutionary force within the woodworking sector.
- Semi-automatic finger jointer with a small footprint
- Excellent performance-to-cost ratio

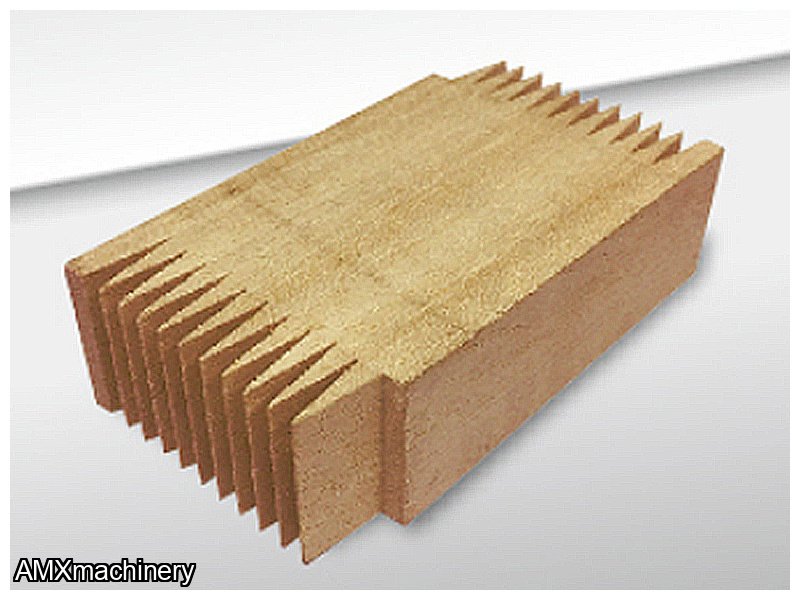

- Right/left finger shaper scores, profiles, and glues both right and left joints in a single machine
- Workpieces automatically travel between profiling & gluing stations
- Production speed: 2~3 cycles/min
- Length of cut is calculated by an encoder and set on a touch screen for increased accuracy with a finished board tolerance of 0 to 0.08” (0 to 2mm)

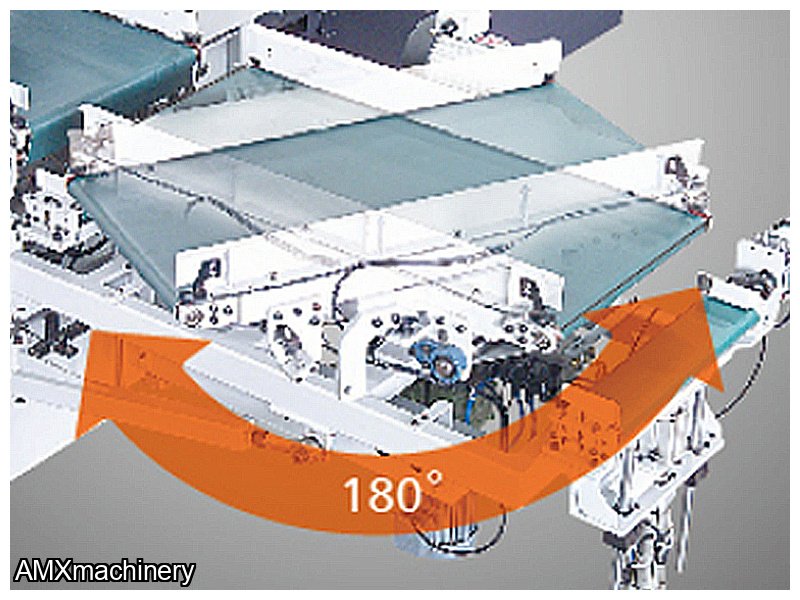

- Manual rotary table design turns pieces to allow processing of both ends on a single shaper system – optional automatic rotary table available

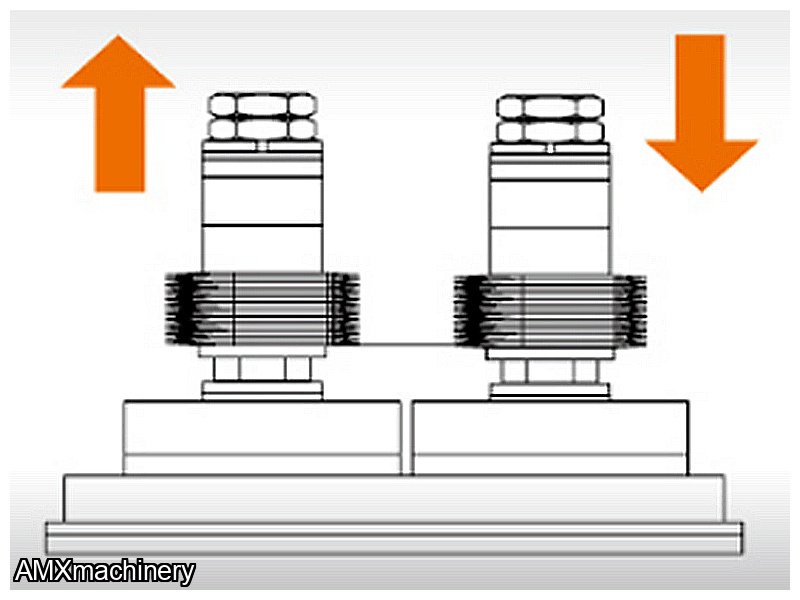

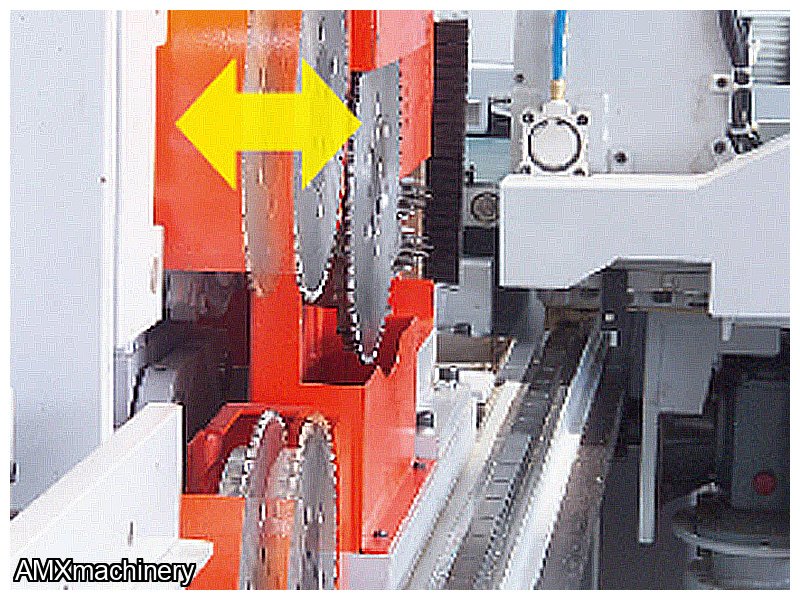

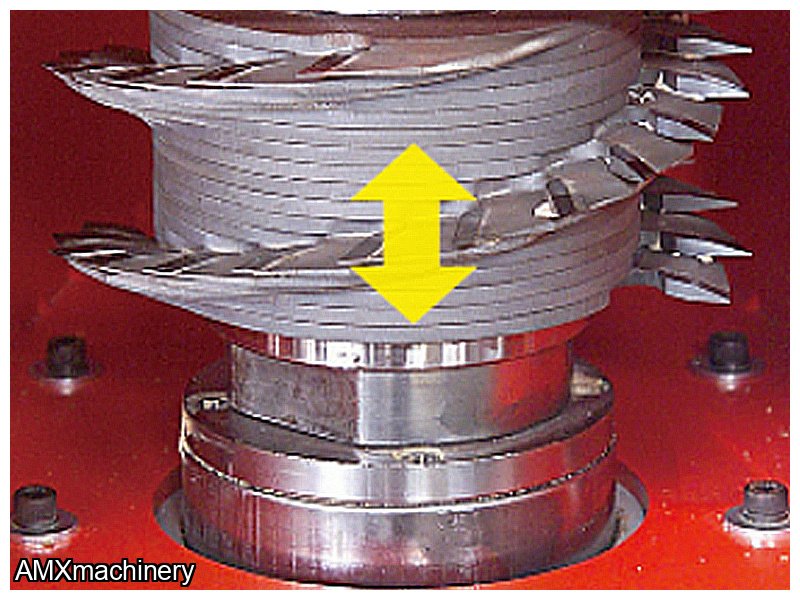

- Optional automatic adjustment of the scoring blades and shaper section for left & right profiles
- Presses available in various lengths to suit your production needs
- Applicable for machining extra short wood waste of 4” (100mm)
- Only two operators required for max production
- Hopper loader mounted for workpieces to automatically feed into the assembly press comes standard with the FL-24
- As standard we use PVAc glue, but we have optional gluing systems for PUR, MUF, EPI, etc. available upon request
- Synchronized jointing and length cutting is performed in a 2-step process within the F-A05 or A07 single stage automatic infeed finger assembler
Includes the following:
F-C03W01 Finger Shaper (Injection Glue System)
DESCRIPTION | |
Max. available width working table | 650 mm (25.6”) |
Range of workpiece length | 100~1000 mm (4.7~27.5”) |
Range of workpiece width | 20~60 mm (3.9~39.4”) |
Range of workpiece thickness | 30~160 mm (1.2~6.3”) |
Trimming saw speed | 2800/3400 RPM |
Finger cutter speed | 6000 RPM |
Finger cutter diameter (in/out) | ø70 / ø160 mm (ø2.8 / ø6.3) |
Dust out diameter | 6 x 2” |
Machine dimensions (L x W x H) | 4425 x 1815 x 1855 mm (175 x 72 x 73”) |
POWER REQUIRED | |
Table-drive motor (Infeed & Outfeed) | 1/2 HP x2 |
For conveyor motor | 1/2 HP x2 |
Scoring saw motor (Top & Bottom) | 2 HP |
Trimming saw motor | 5 HP |
Shaper cutter motor | 15 HP |
* 1: Injection type glue applicator – using PVAc glue only
* 2: Finger cutters – 10 pieces
* 3: Comes with saw blades
F-D06-1.4 Roller Table
DESCRIPTION | |
