Identificador: 1783 Abierta
SIERRA DE BANCO - 14 PULGADAS
SIERRA DE BANCO - 14 PULGADAS
SIERRA DE BANCO - 14 PULGADAS
SIERRA DE BANCO - 14 PULGADAS
SIERRA DE BANCO - 14 PULGADAS
SIERRA DE BANCO - 14 PULGADAS
SIERRA DE BANCO - 14 PULGADAS
SIERRA DE BANCO - 14 PULGADAS
SIERRA DE BANCO - 14 PULGADAS

SIERRA DE BANCO - 14 PULGADAS

AMXmachinery1

Contacte al Vendedor
Descripción
PARTE: 2CK-TA12

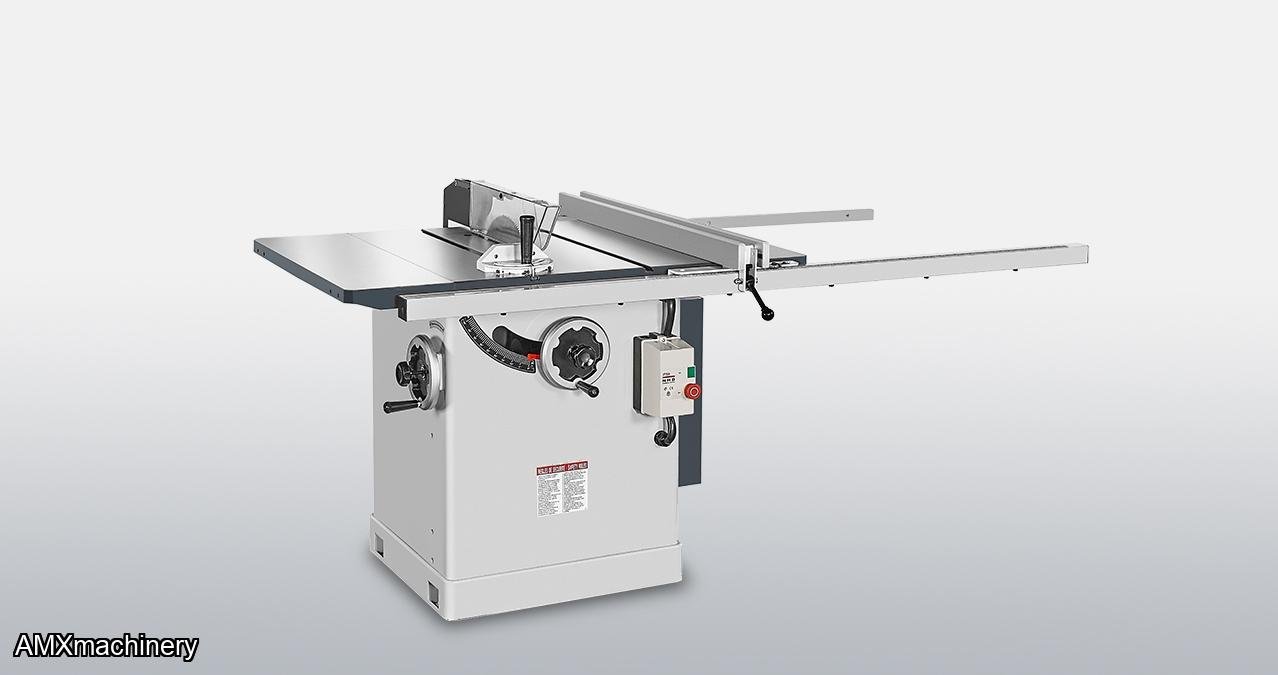

Is for serious woodworkers and production shops that require an industrial strength and powerful table saw. The large precision-ground & polished cast-iron table and cast-iron saw unit ensure vibration free cutting with optimum cut quality.  The quick setting T-square rip fence is equipped with dual inch & metric scales for precise rip cutting. The blade guard is mounted to a splitter with anti-kickback pawls for safe operation.  Comes standard with both standard and dado arbors and table inserts.  Driven by a powerful 5HP motor it can make the cuts you need effortlessly.

  • Heavy-duty cast iron table is precision ground for accuracy & precision
  • Industrial strength cast iron saw carriage and trunnion for vibration free cutting
  • 50” capacity T-square rip fence assembly locks on front rail for a precise parallel reference to the saw blade
  • Right tilt blade to 45o

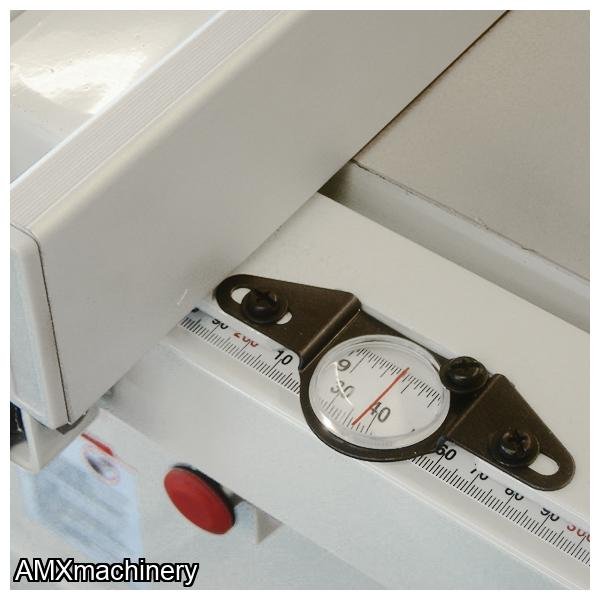

  • Dual Inch/Metric scale guide rail on rip fence with magnifying glass for easy visibility

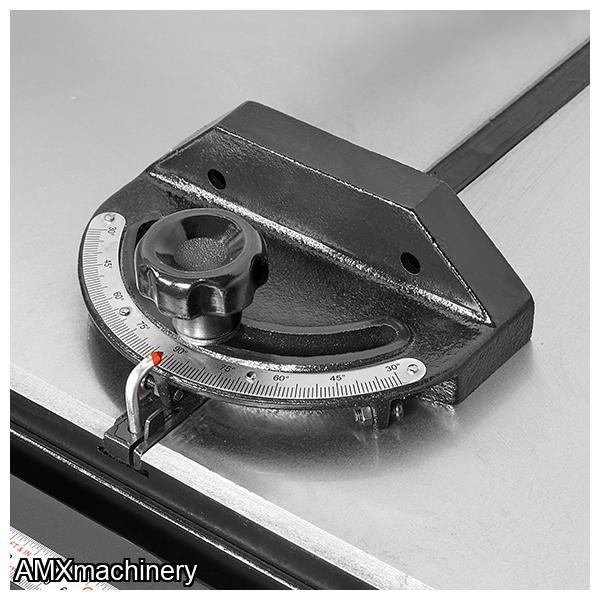

  • Miter gauge with two miter slots in the table

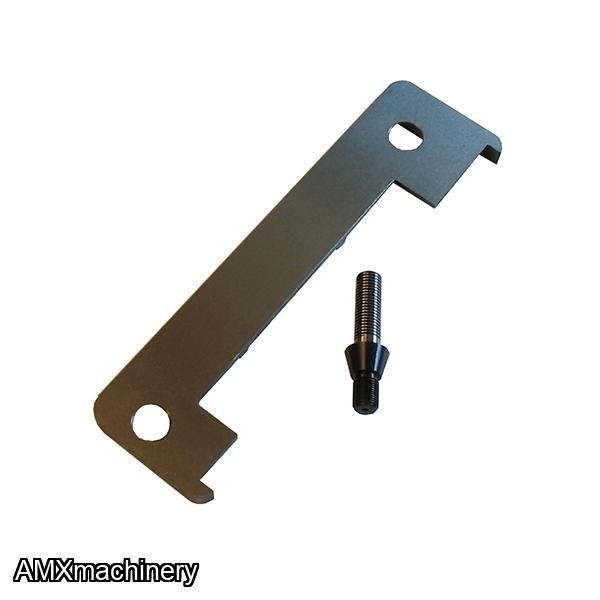

  • Comes with dado arbor & dado table insert

KEY ADVANTAGES

  • Rugged machine frame construction provides maximum stability and reduced vibration

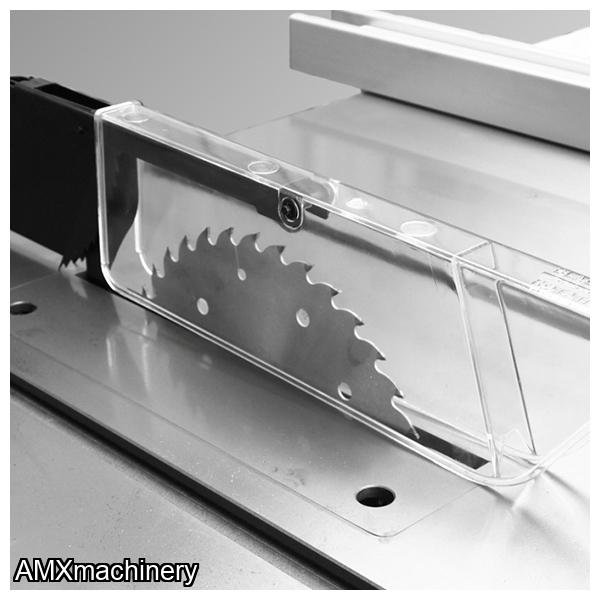

  • Saw guard with built in splitter and safety anti-kickback unit
  • 1” standard and 5/8” dado arbor included along with appropriate cast iron table inserts
  • Handwheel adjustment for blade height and tilting adjustments which can be locked in place
  • CSA / UL approved magnetic switch

Saw Blade Diameter

12″

Max. depth of cut at 90°

4″

Max. depth of cut at 45°

2 ¾”

Arbor diameter

1″

Dado arbor diameter

5/8”

Arbor speed

4000 RPM

Table size

48″x30″

Table height

34 ¼”

Max. rip to right of blade

50″

Motor

5HP

Electrical

230/3/60 = 15.2 Full Load Amps

230/1/60 = 28 Full Load Amps

Net weight

572 lbs

Gross weight

704 lbs
