Descripción

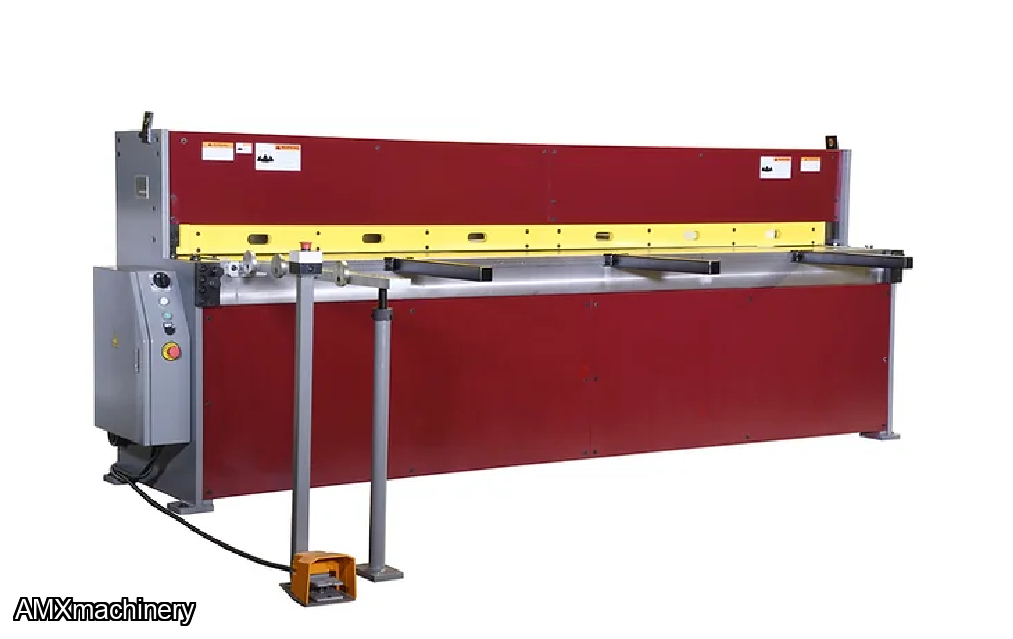

CORTADORA DE METAL HIDRAULICA PARTE: 2GM-HS-0610MD
6 foot hydraulic metal shears can cut up to 10 gauge by 72” wide mild steel sheet metal. A hardened shearing blade is installed and pre-gapped ready for buyers to operate upon arrival. Our light duty hydraulic shears are dependable and deliver sharp razor cuts with ease.
- Taiwan machines
- ISO 9001 certified
- HD all steel construction for maximum rigidity
- German logic quiet Rexroth hydraulic system
- Adjustable stroke from 16-20 strokes per minute

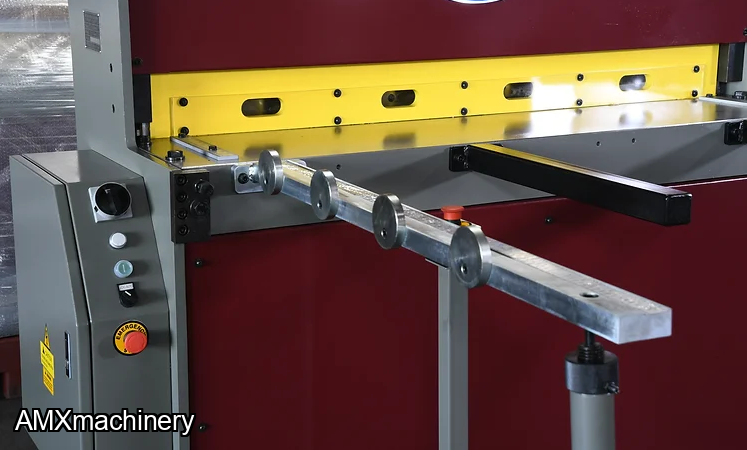

- 60” long squaring arm with inch / mm scale
- Spring hold-downs
- High grade carbon/chrome alloy steel blades and hardened to 62 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
- Full length with full view finger guard
- Front supports and (2) side gauges
- Safety type foot pedal control
- Jog, single continuous auto operation modes

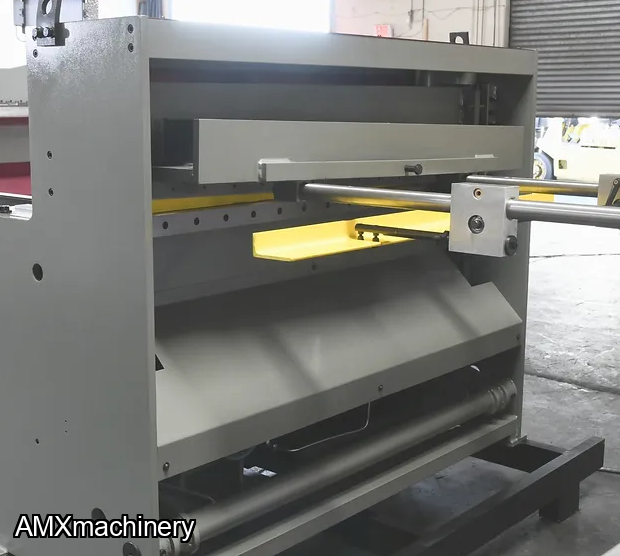

- 26” manual back gauge with inch/metric dual scale & one side operated hand wheel
- 60” long squaring arm with inch / mm scale
- 2 each 24” front support arms
- 2 each 14” Side gauges with inlaid inch/metric dual scale
- Spring independent hold-downs
- Full length finger guard
- Removable safety foot pedal control
- One set of blades
Cutting Capacity: Mild Steel Stainless Steel Soft aluminum Minimum Capacity |
6' x 10Ga. 6' x 14Ga. 6' x 1/4" Ga. 24 Ga. |
| Blade Length | 6' 6" |
| Strokes per minute adjustable | 16-20 |
| Throat depth | 16" |
| Worktable height | 30 1/2" |
| Front support arm | 24" |
| Back gauge | 26" |
| Blade Rake Angle | 1.5 Degree |
| Oil Tank Capacity | 21 Gal |
| Main Motor | 5 1/2 HP Prewired: 220/3-Phase Optional: 440V 3-Phase |
| Machine Weight | 4,150 lbs. |
| Machine Dimensions | 98" x 35" x 52" |
