Description

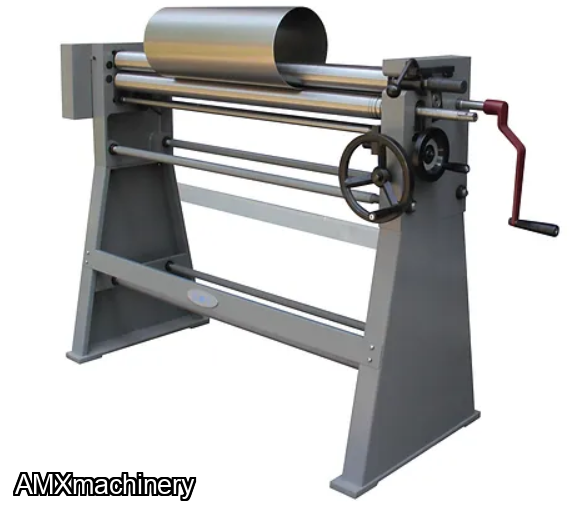

ROLADORA MANUAL 41'' PARTE: 2GM-SR-4116
41" Manual Slip Roll, designed for effortless shaping and forming of up to 16-gauge materials. Craft rounded tunnels, curved patches, panels, bends, cones, and intricate metal artwork with precision and ease. Accompanied by a robust metal stand, providing essential stability and support for your projects.
- ISO 9001 certified
- Heavy welded all steel construction for maximum rigidity
- Quick release top roller
- Precision ground rollers
- 1/4” roll opening
- All rolls run forward and reverse
- With high floor stand, assembly required
- One year warranty for parts
Rolling capacity: mild steel stainless steel Soft aluminum min. thickness capacity |
41” x 16Ga. 41” x 22Ga. 41”x 11Ga. 41” x 28Ga |
Rolls size, length x dia Min. roll bending dia. capacity | 41” x 2-3/8” 3” |
2 rolling speeds | 2 speed gearbox |
Rolls opening | ¼” |
(4) grooves sizes | 1mm, 2mm, 3mm, 4mm |
Machine weight / shipping weight | 457 LBS / 529 LBS |
Machine dimensions, LxWxH | 66” x 22” x 55” |
Shipping dimensions, LxWxH | 61”x 20” x 27” |
