Descripción

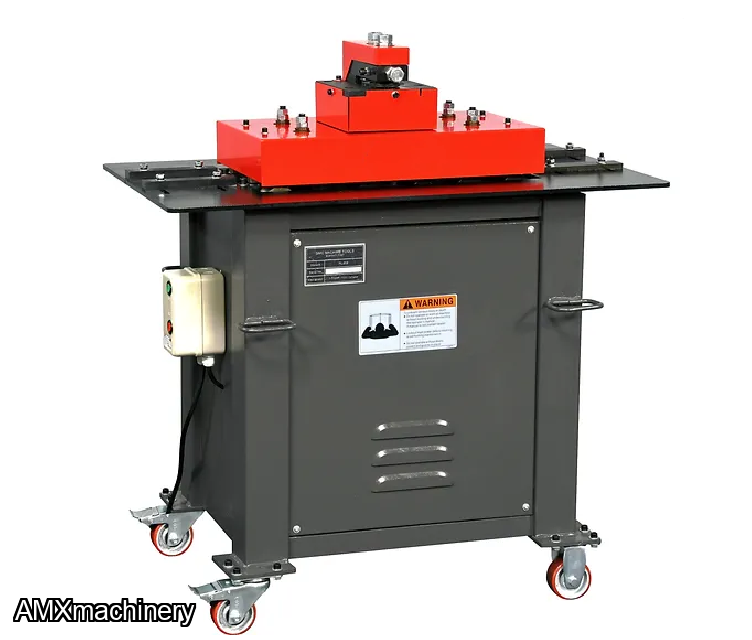

ENGANCHADORA DE METAL PITTSBURG PARTE: PL-20E
- 20 gauge capacity: can handle sheet metal up to 20 gauge, making it suitable for a wide range of applications.
- Creates tight, interlocking joints between two pieces of sheet metal
- Made with high-quality materials and construction for durability and longevity
- Maintenance-friendly design: The machine is designed for easy maintenance, with quick-access panels that allow for easy cleaning and lubrication.
- Compact and portable design for easy storage and transport
- Compatible with a variety of Lockformer accessories and attachments for added versatility and functionality
- ISO 9001 certified
- 1.5 HP Heavy Duty AC main motor, 110V

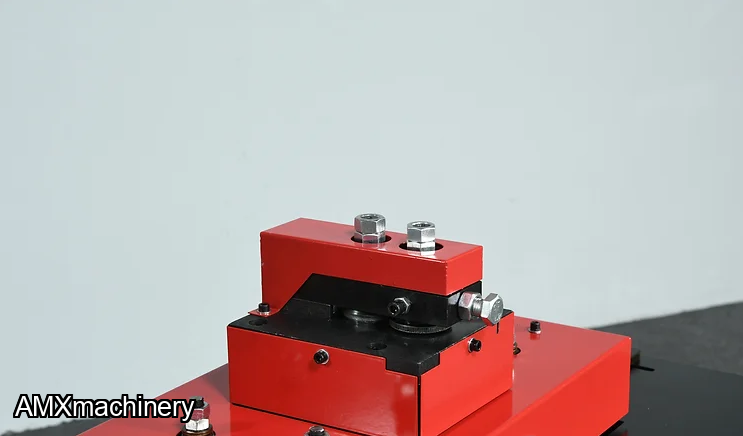

- Standard Pittsburgh Attachment
- Standard Round Power Flange Attachment, Double Seam Roll and Drive Cleat Roll (power flange attachment can only do radius parts)
- ACME side can be operated at same time
- Heavy duty caster wheels for easy moving
- Standard Pittsburgh Attachment # PA-20E, installed
- Power Flange Attachment # FA-20E, installed
- Drive Cleat Roll # DCR-20E, installed
- Double Seam Roll # DSR-20E, installed
Capacity: Pittsburgh Lock |
26 Ga. - 20 Ga. |
| Double Seam Lock | 26 Ga. - 20 Ga. |
| Drive Cleat Lock | 26 Ga. - 22 Ga. |
| Power Flanger 1/4" | 26 Ga. - 20 Ga. |
| Depth of pocket | 1/2" |
| Feeding speed | 32 FPM |
| Main Motor | 1.5 HP, 10 AMP Prewired: 110VAC |
| Weight | 458 LBS |
| Machine Dimensions (LxWxH): Shipping Dimensions: | 36" x 23" x 43" 38" x 25" x 42" |
