Description

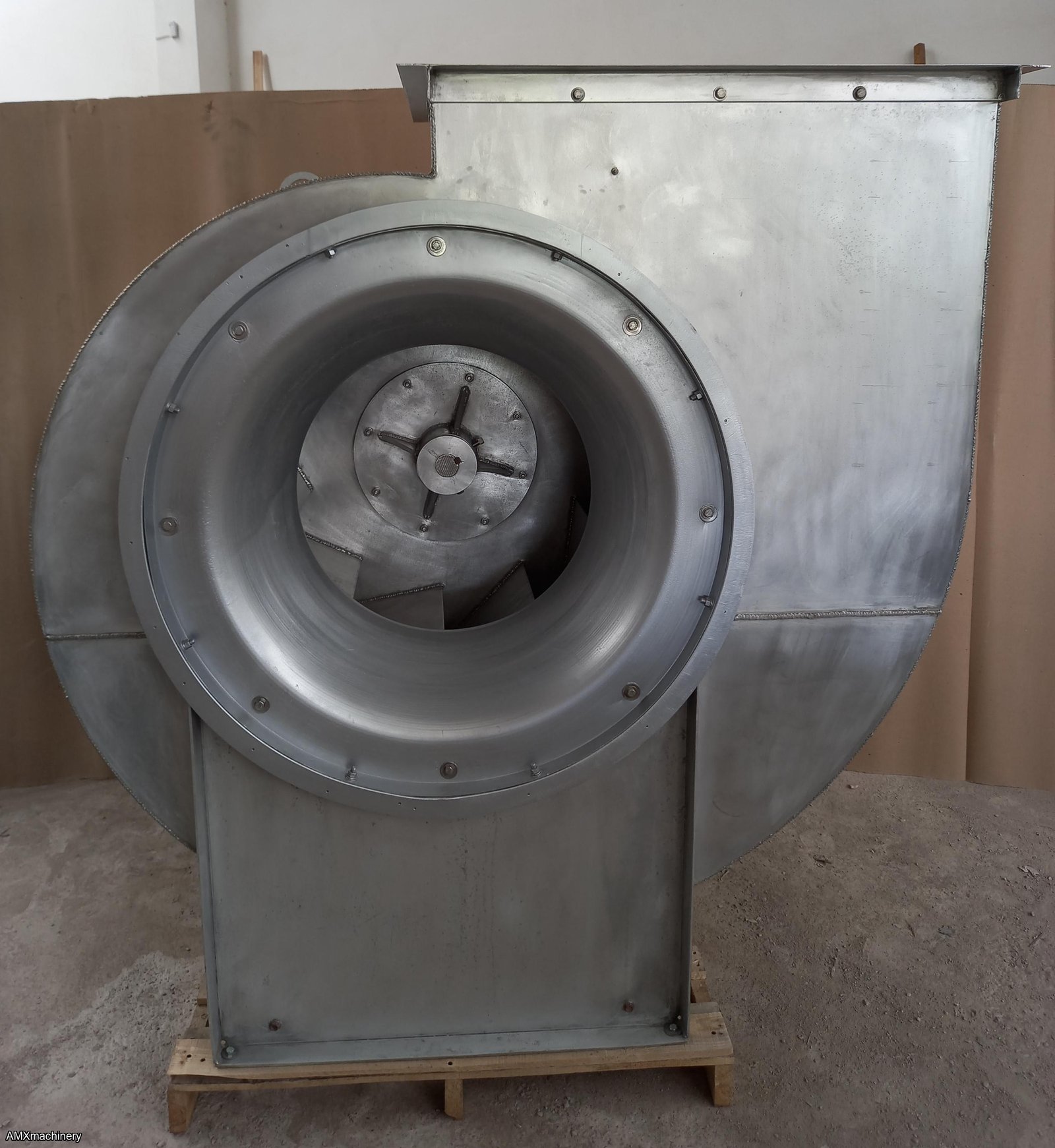

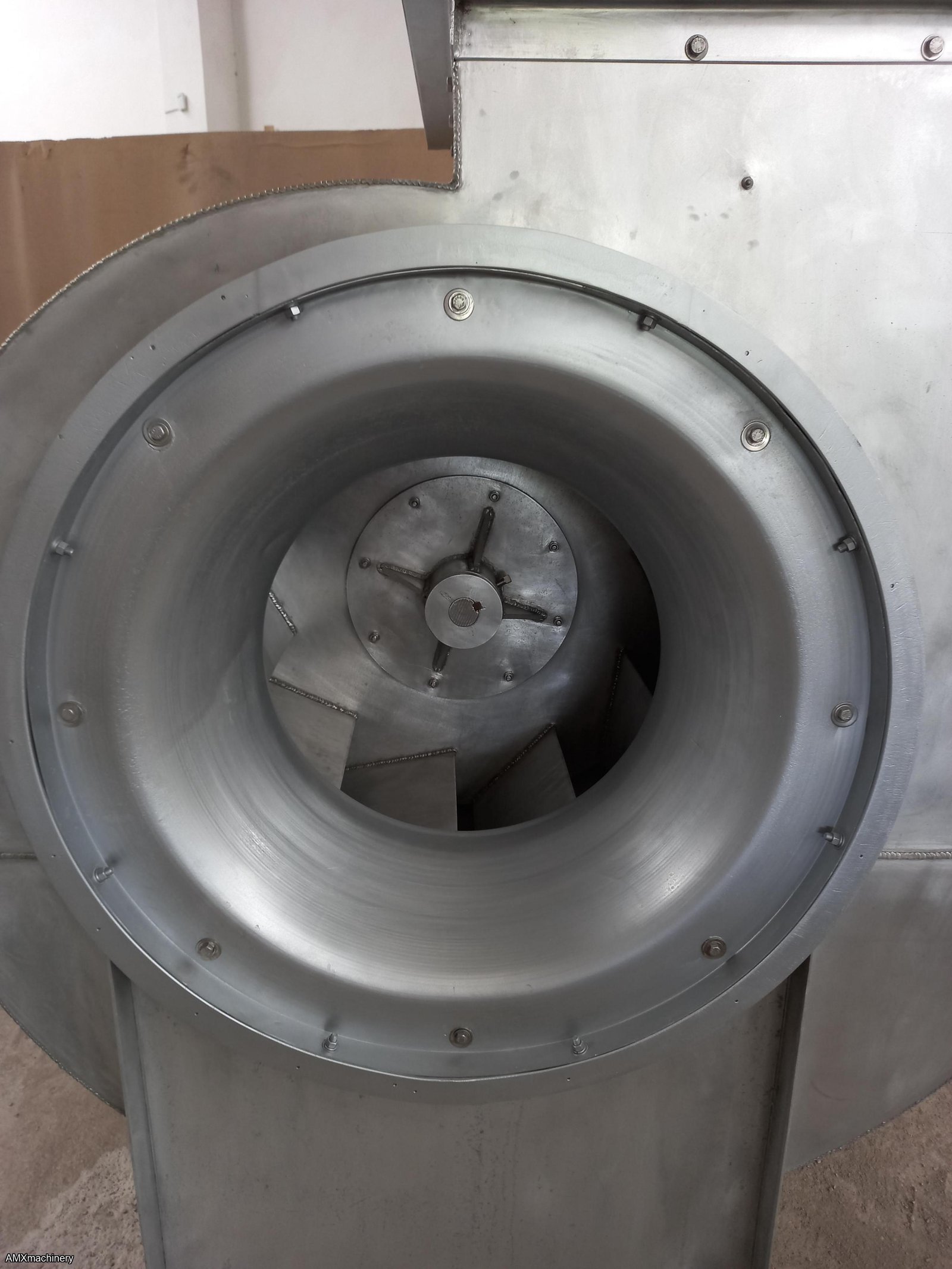

PARTE: AMX-10120 - EXTRACTOR DE AIRE - INDUSTRIA - RESTAURANT - COCINA - MOTOR 10 HP - LOREN COOK
USADO - MUY BUENAS CONDICIONES
ACERO INOXIDABLE
MARCA: LOREN COOK COMPANY
MODELO: 330 CPA - EF-1
HECHO EN USA
FABRICADO EN ALUMINIO - RUEDA INTERIOR Y CABINA EXTERIOR DEL EXTRACTOR
FABRICADO EN ACERO - ESTRUCTURA DONDE VA EL MOTOR, LA POLEA Y LA FLECHA EXTERIOR
MOTOR BALDOR 10 HP, 208-230/460V, 3 FASES

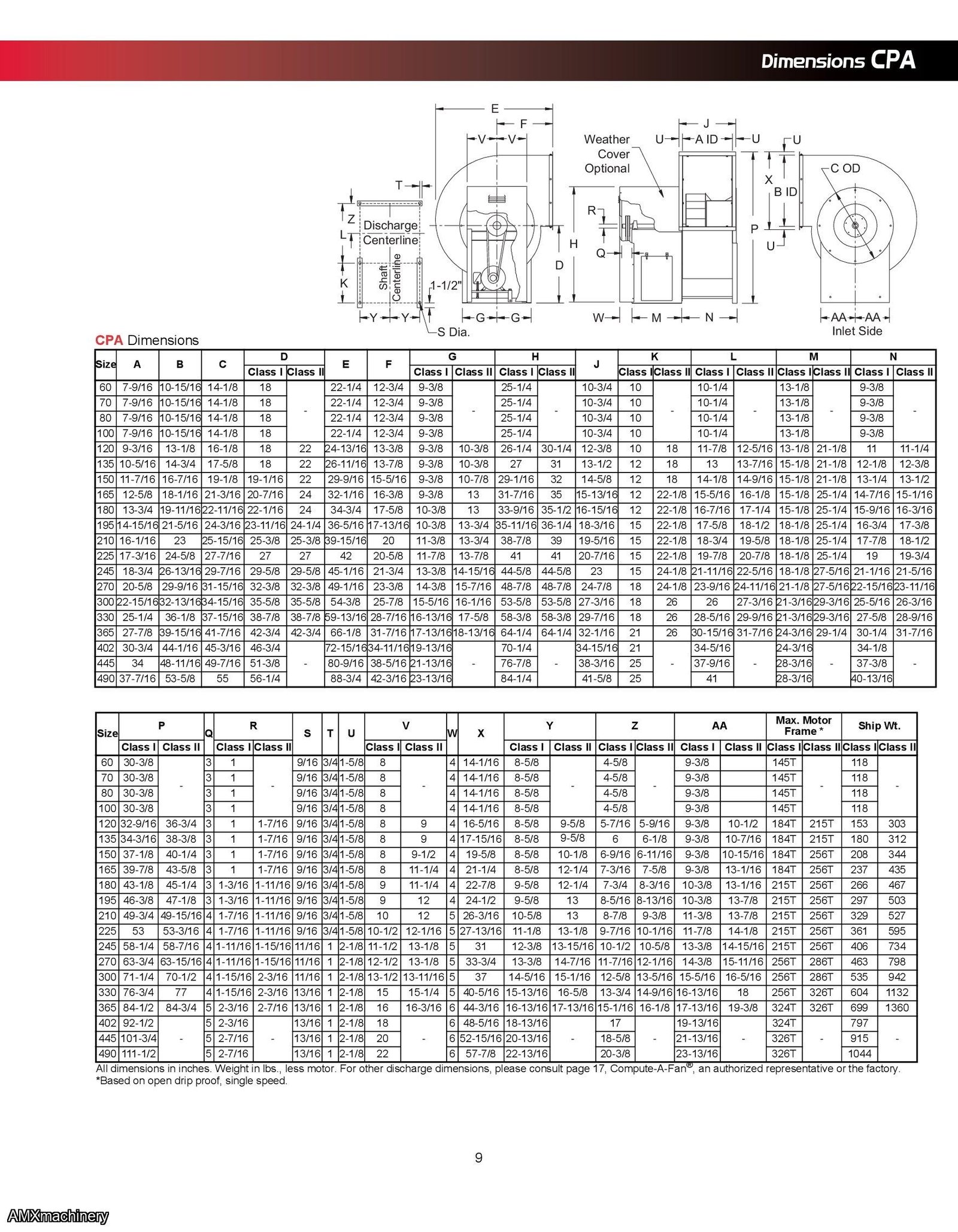

MEDIDAS TOTALES: 63” ANCHO X 52” FONDO X 67.5” ALTO
MEDIDA ENTRADA: 41” DIAMETRO ABERTURA CEJA
MEDIDA ENTRADA: 22” DIAMETRO ABERTURA ADENTRO
MEDIDA SALIDA SUPERIOR: 36” ANCHO X 25” FONDO
PESO APROXIMADO: 550 KG
==============================================================================================

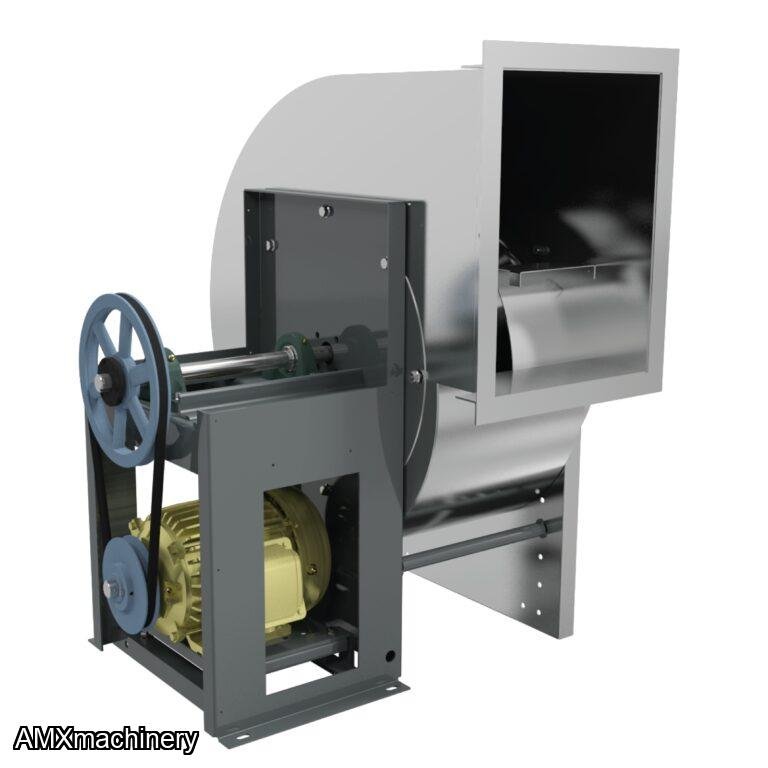

Centrifugal unit with a welded backward inclined aluminum wheel.
Fully welded aluminum housing that meets AMCA 99, Type ‘A’ spark resistant construction guidelines.
Additional application includes corrosive airstream, general ventilation and up to 300º restaurant exhaust.
FEATURES

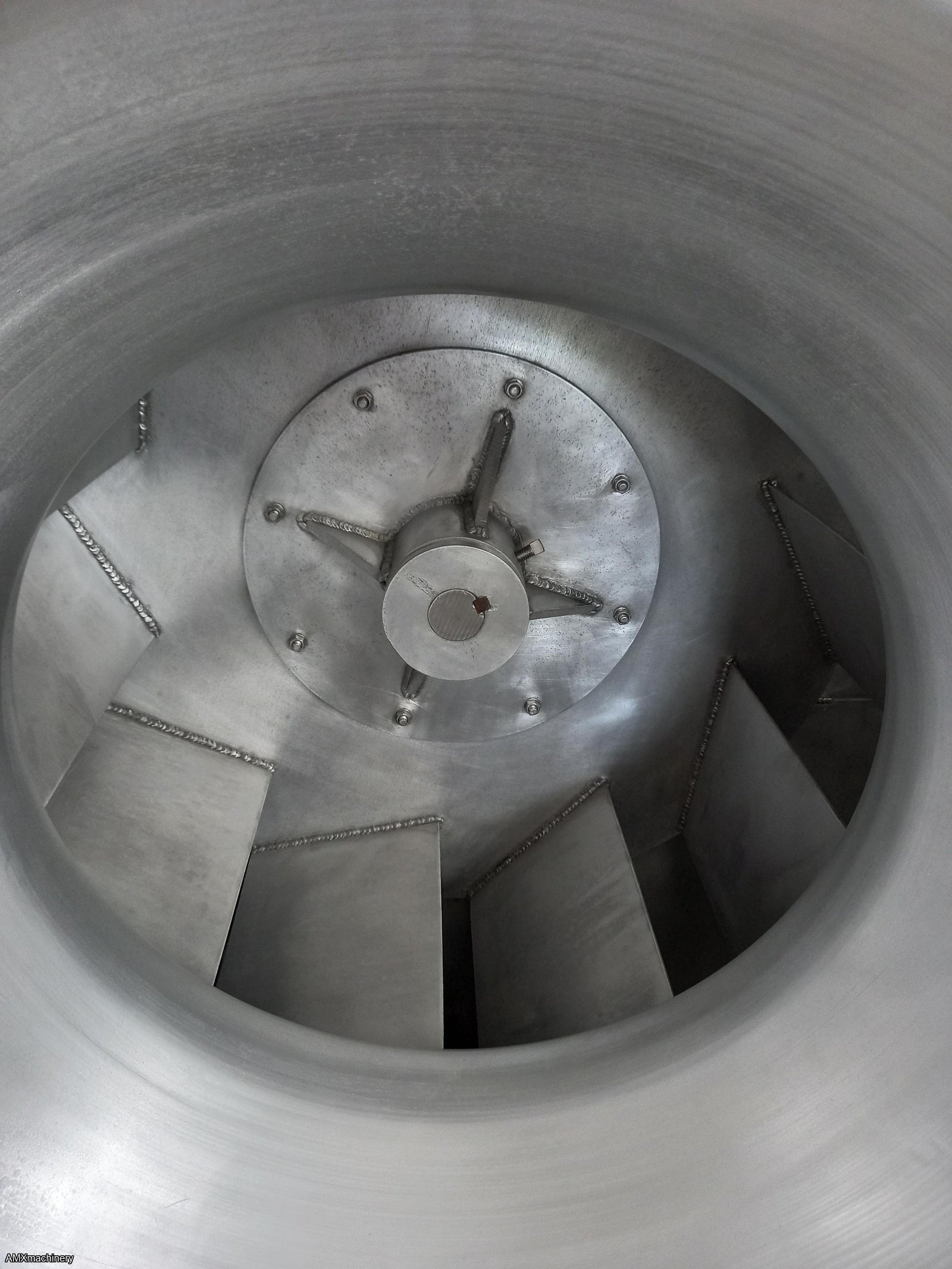

Fully welded aluminum backward inclined wheel
Full welded aluminum housing
Standard construction meets AMCA Type ‘A’ spark resistant construction
Housing field rotatable one of eight discharge position
Available in arrangement 10 (Belt drive)
Available in arrangement 4 (Direct drive)
Removable discharge flange
Lifting lugs
Cast regreasable bearings
CONSTRUCTION
Housing Material: Aluminum, Steel
Finish: Lorenized ™
Ventilator Type: Blowers/Utility Sets
Impeller: Centrifugal
Bearings: L-50, over 200,000 hours
CONFIGURATION
Mounting: Roof (Curb Mount), Roof (Rail Mount), Floor
Drive Type: Direct Drive, Belt Drive
Motor: AC
Class: 1, 2
Discharges: THD, TAD, TAU, DB, UB, BHD, BAU
Arrangements: 4, 10
Rotatable Housing: Yes
Max Operating Temp (Standard Construction): 180°F
Max Operating Temp (Alt. Construction): 300°F
Speed Control: VFD, Vari-Flow, SimpliDrive
Flow: Supply, Exhaust
Filtration: Unfiltered
The information provided was gathered from literature, internet &/or physical inspection.
It is thought to be accurate; but not guaranteed.
