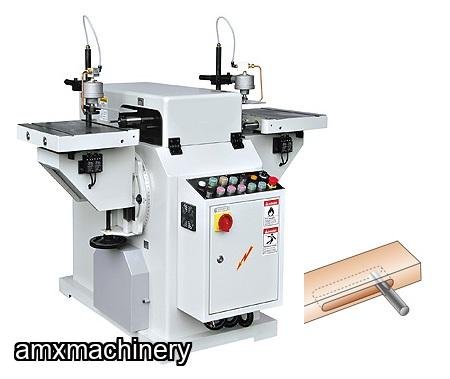

PARTE: 2TA-CM-100 - 3YC-YOM-120 - ESCOPLO OSCILANTE - 2 MESAS - AMX MACHINERY
Nueva con garantia
- A faster rectangular mortise machine provides variable oscillating speed at 7 ~ 200 strokes per minute.
- Two working tables built in both side of the machine to double the production for high efficiency mortising operation.
- Pneumatic hold down clamps and pneumatic depth movement for smooth finish.
- Fully automatic mortise produce cycles simply by stepping on the foot pedal.
- Hydraulic pistons for drilling depth speed control, enable for best results.
- Width and depth of mortising is easily adjustable.
- Table can be tilted 20 degrees at each side for angular slot.
- Powerful industrial motor for maximum cutting capacity.
- Precision sealed long-life bearing.
- Heavy cast iron frames and table for durability usage.
SPECIFICATIONS | SET-100 | CM-100 |
Max. Width of Tenon (Mortise) | 4" | 4" |
Max. Depth of Tenon (Mortise) | 2" | 2-3/8" |
Oscillation Rate | 13 ~ 80 PCS/MIN. | 7 ~ 200 STROKE/MIN. |
Table Tilts | 20° | 20° |
Spindle Drive Motor | 3 HP | 3 HP |
Cutter Feed Motor | 1 HP | ½ HP |
Cutter Speed | 9500 RPM | 9500 RPM |
Table Vertical Adjustment | 3" | 3" |
Max. Thickness | 4" | 4" |
Max. Stoke Width | 5" | 4" |
Air Pressure | 80 PSI | 80 PSI |
Machine Size | 63" x 51" x 51" | 51" x 47" x 47" |
N.W. | 2200 LBS | 1540 LBS |
G.W. | 2640 LBS | 1880 LBS |
