PARTE: 2CK-GT610HI

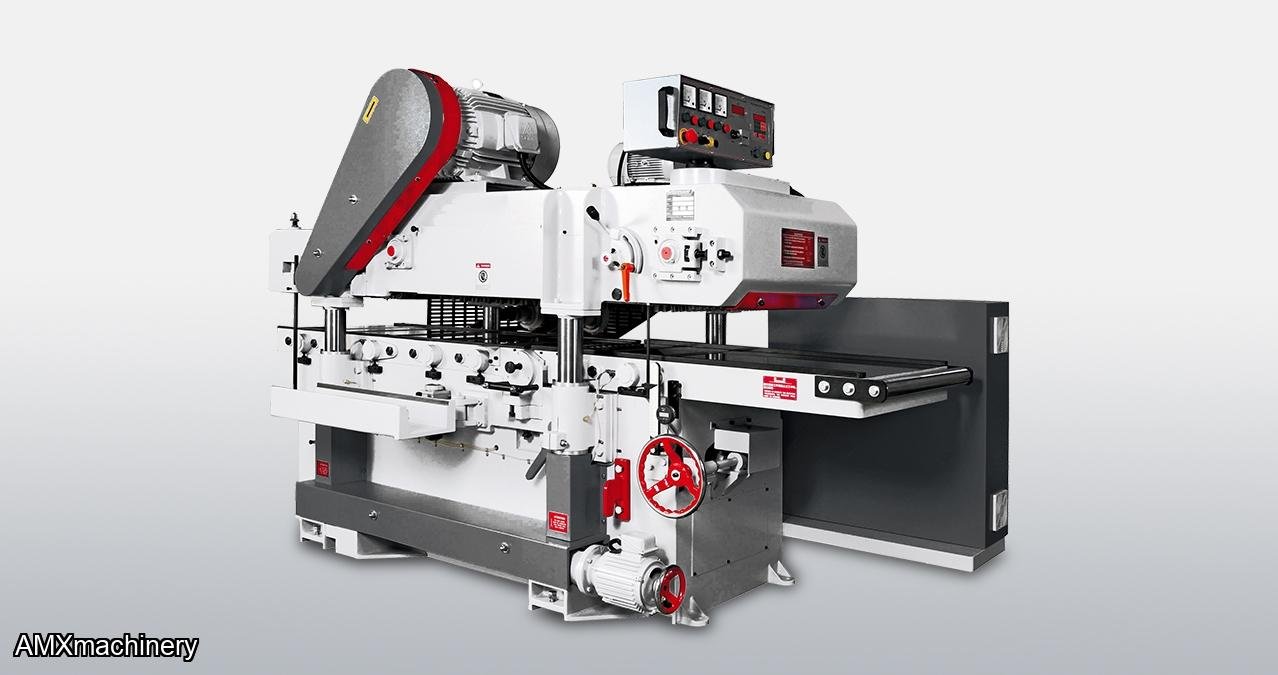

Is capable of speeds up to 98 feet per minute and its robust cast-iron body & industrial cardan drive system ensure high production planing day in and day out. The large diameter cutterheads are spiral type with two-sided solid carbide inserts which produce a clean finish with superior stock removal capacity. The spring loaded feed system passes the material over the bottom head allowing it to act like a jointer to flatten the board prior and then a sectional infeed roller feeds the material through the top head for accurate dimensioning.
- Powerful 40HP top head motor and 30HP bottom head motor for maximum stock removal

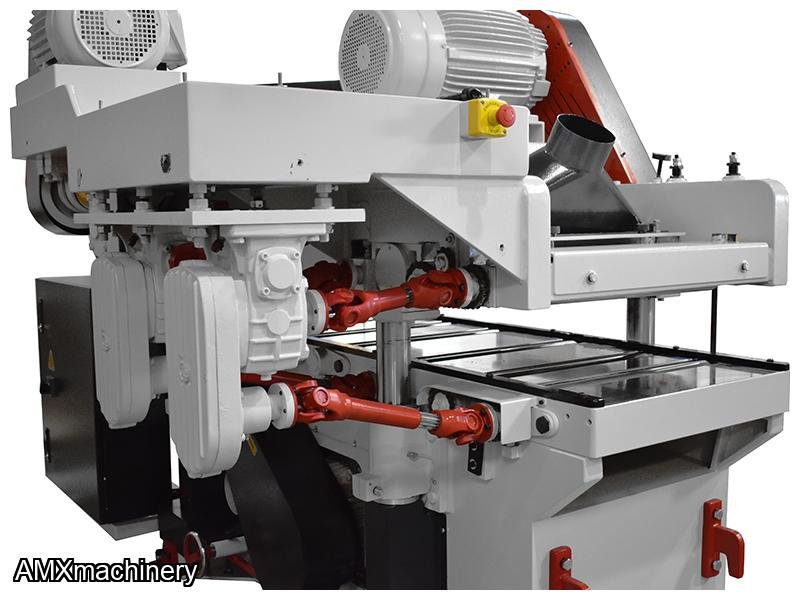

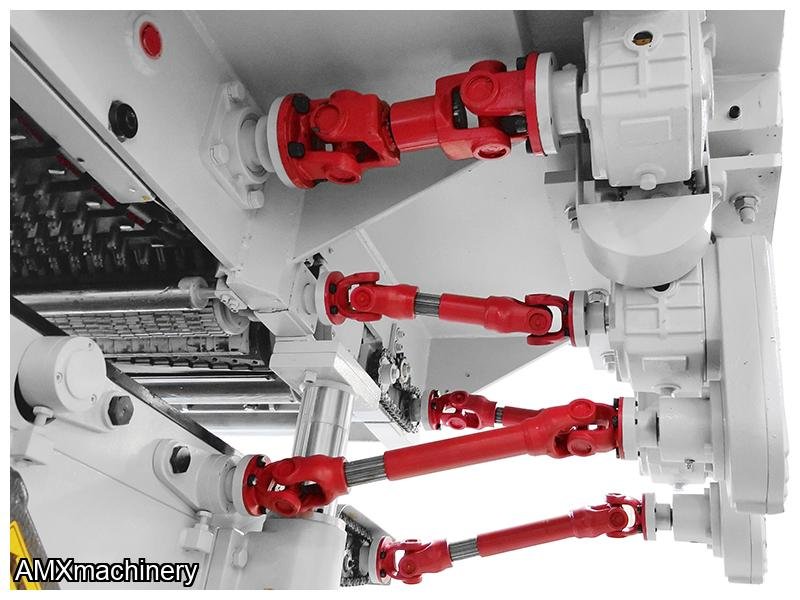

- Full cardan shaft feed system allowing for faster feed speeds up to 98 FPM
- Planing capacity up to 24” wide and 8” thick
- Pin type carpet feed system passes the material over the bottom head to ensure a flat surface
- (7) bed rollers including (3) driven rolls for superior feed speeds

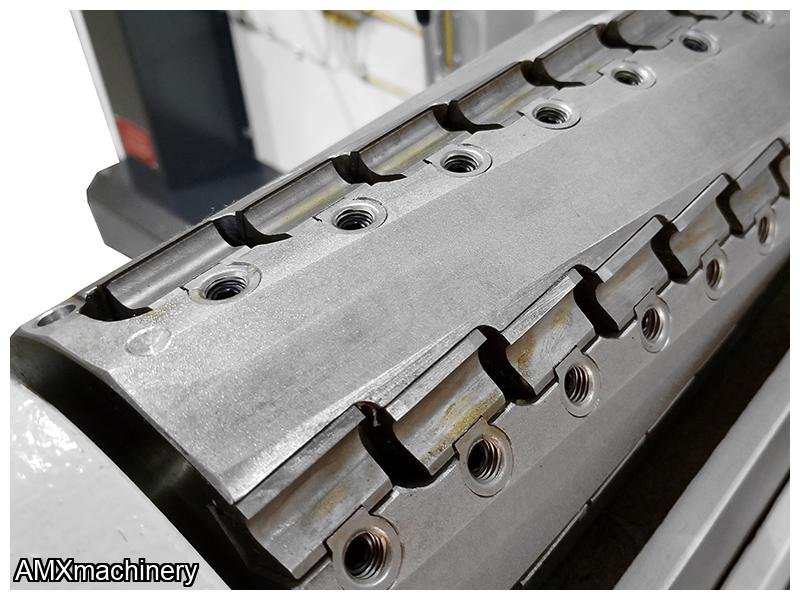

- Spiral insert knife cutterheads with 6 rows of two-sided 30x12x2.5mm solid carbide insert knives provide superior stock removal, reduced machine load and noise, and optimum finish quality
KEY ADVANTAGES
- Cast iron machine frame for superior vibration damping resulting in a long machine & bearing life
- Chrome-plated tables and top and bottom for maximum wear resistance
- Cutterheads are mounted in precision ABEC 7 RHP bearings

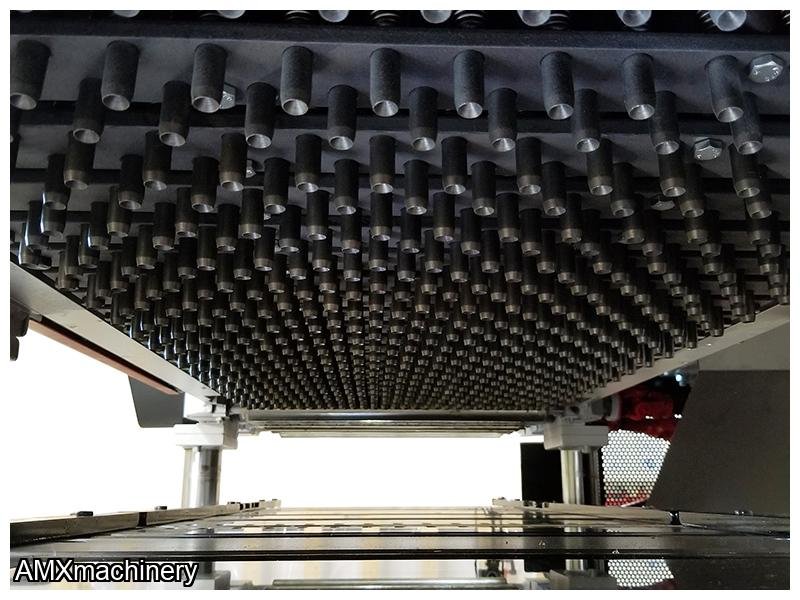

- Feed system uses a spring-loaded pin arrangement to pass material over the bottom jointing head.

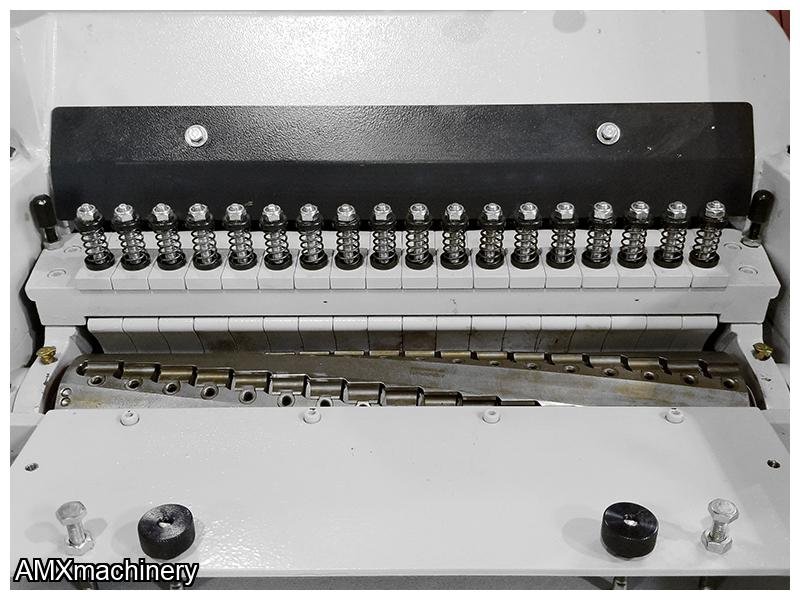

- Sectional serrated infeed roll before the top cutterhead
- Variable feed speed by frequency inverter (VFD) with digital display for the feed speed
- Digital thickness control for quickly and precisely setting the desired thickness

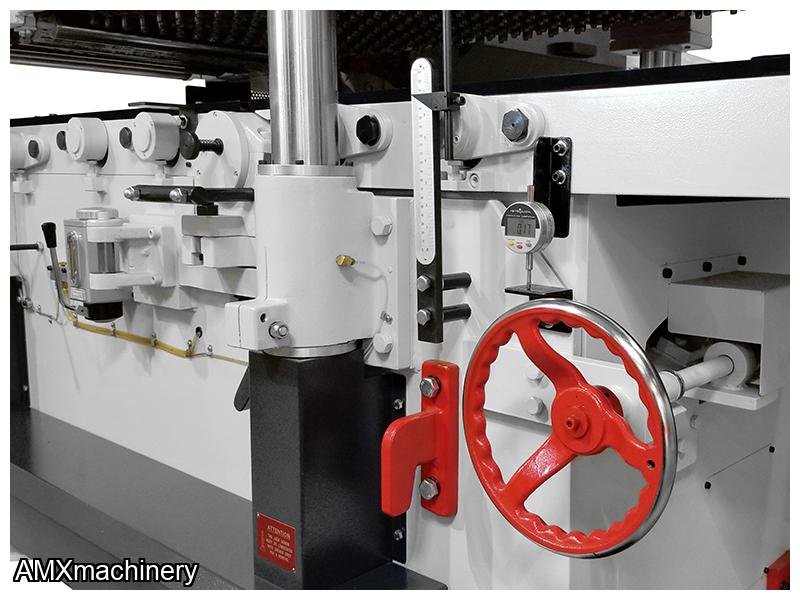

- Upper assembly is adjusted for desired thickness by four large diameter cylindrical postsAdjustable infeed bed by easily
- accessible handwheel to set desired stock removal on the bottom head
- Easy to access swivel control panel with individual ammeters for load monitoring and hour meter to aid in maintenance planning
- Cutterhead starters are Y-Delta providing soft start to the heads for reduced power consumption on startup

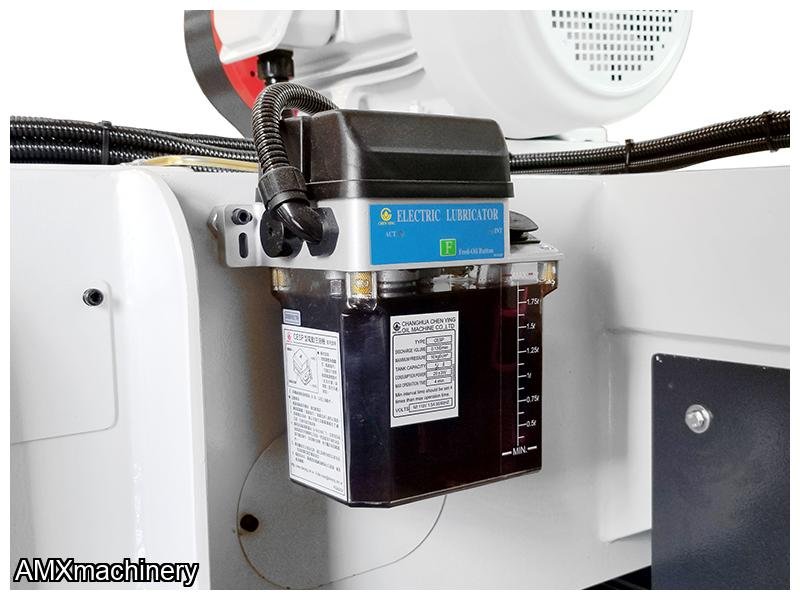

- Automatic lubrication to the conveyor feed system
- High quality Schneider electrical components to CSA/UL standard
|
|
INCH
|
METRIC
|
|
Max. working width |
24” |
610mm |
|
Max. working thickness |
8” |
200mm |
|
Min. working thickness |
5/16″ |
8mm |
|
Min. working length |
12” |
300mm |
|
Cutterhead RPM |
5000 RPM |
|
|
Cutterhead diameter |
5.3” |
135mm |
|
Feed speed |
30-98 FPM |
10 – 30 m/min |
|
Top cutterhead motor |
40 HP |
|
|
Bottom cutterhead motor |
30 HP |
|
|
Feed motor |
5 HP |
|
|
Table Rolls |
7 (3) driven |
|
|
Opening hoist motor |
1 HP |
|
|
Machine weight |
8800 lbs |
4000 kgs |
|
Machine dimensions (LxWxH) |
112” x 67” x 67” |
2830x1700x1700mm |
