Identificador: 1935
Abierta
Descripción

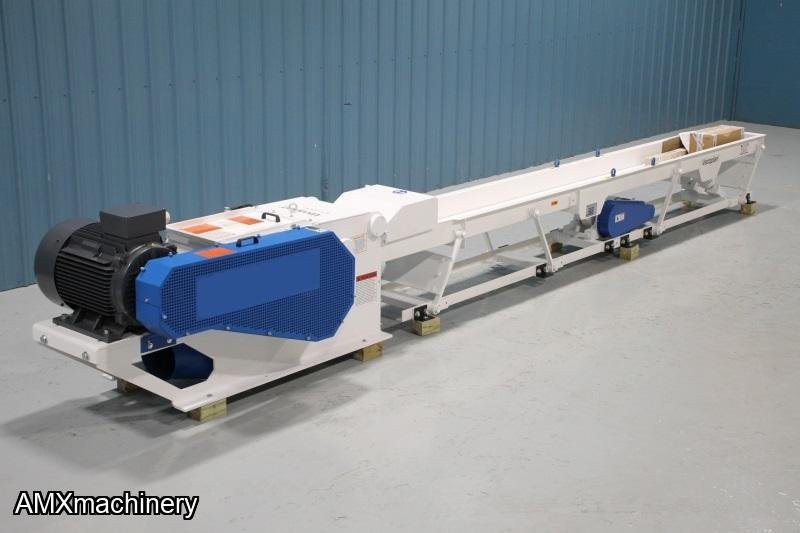

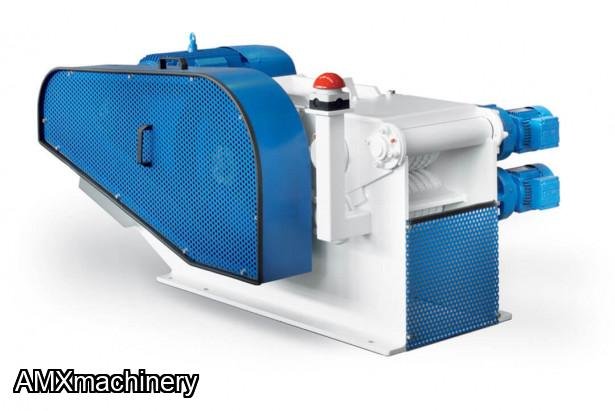

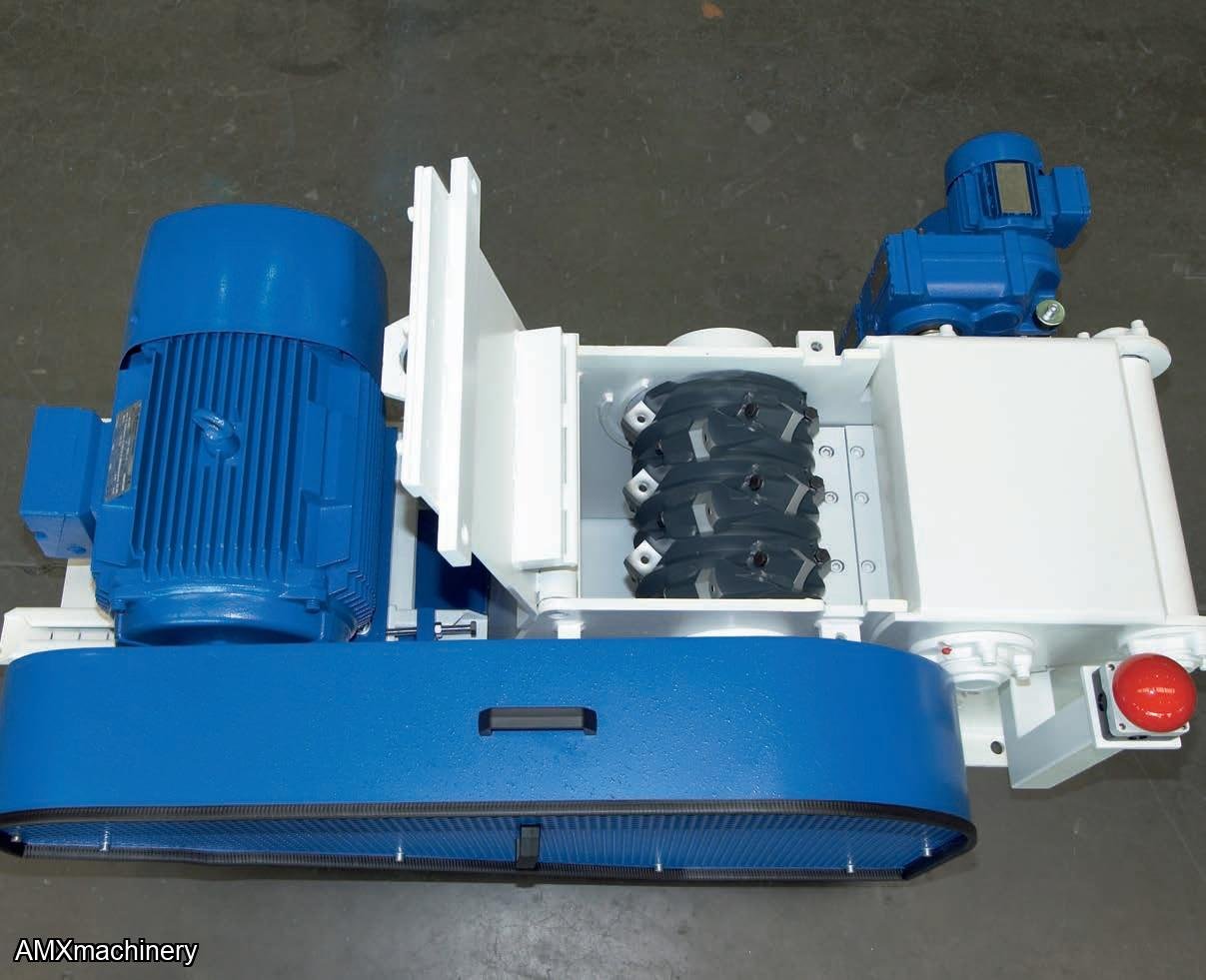

PARTE: 2VE-VTH-35/8/2VU - ASTILLADORA PARA MADERA - HORIZONTAL - 40 HP
TRANSPORTADOR VTBRATORIO 16” LARGO
NUEVA CON GARANTIA
Application Description:
Type of material to be ground: Wood – Pine, kiln dried
Form of material to be ground: Rips from gang-rip, waste wood from cut-offs
Typical size of material to be ground: < 5” x 18” x 16’
Required volume of material to be ground: 1,000 lbs/hr
Desired screen or particle size: 3/4”
Use of ground product: Not Specified

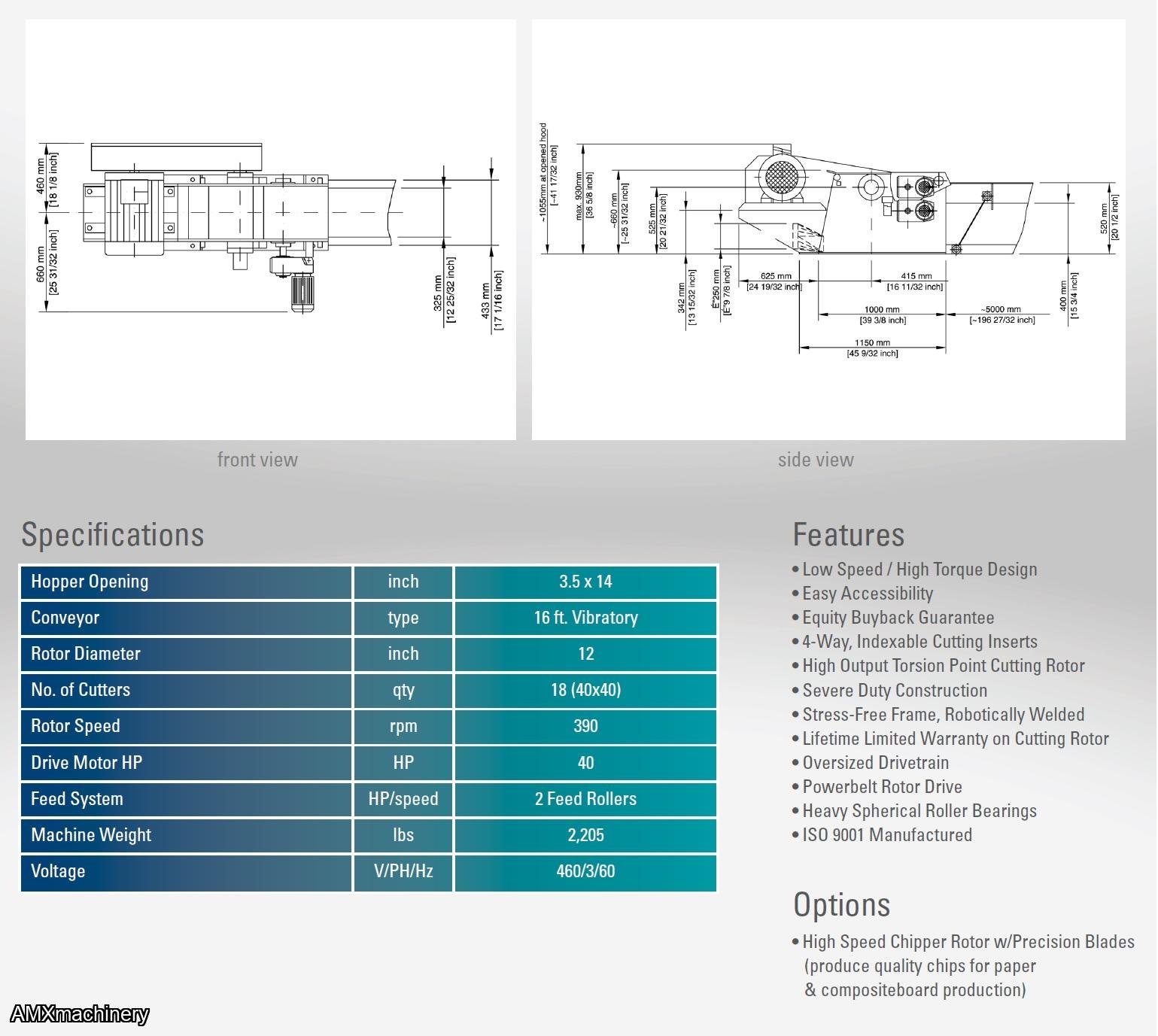

SPECIFICATIONS
Machine Infeed Opening: 3.5” H x 14” W
Rotor Length: 14”
Rotor Diameter: 12”

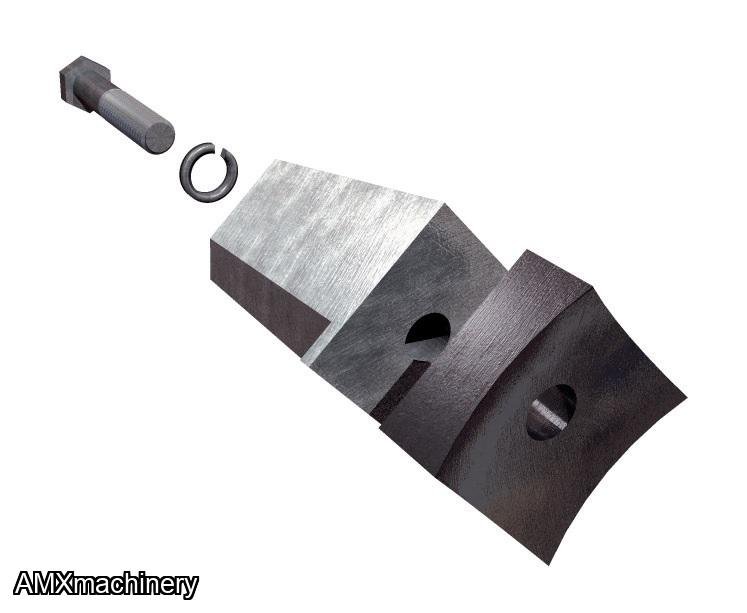

Number Of Cutters: 18 (40 mm x 40 mm)
Rotor Speed: 390 rpm
Infeed Conveyor: 16’ Vibratory Conveyor
Drive Motor HP: 40
Voltage: 460V/3ph/60Hz
NOTE: A throughput rate in excess of 1,000 lbs/hr through a 3/4” screen is achievable dependent on the type of material, form of material, screen size and method of feeding.
Throughput estimates are based on maximum obtainable rates and may vary according to material types and screen sizes.
