Descripción
PARTE: 2GM-PRB - DOBLADORA DE TUBO HIDRAULICA 3''

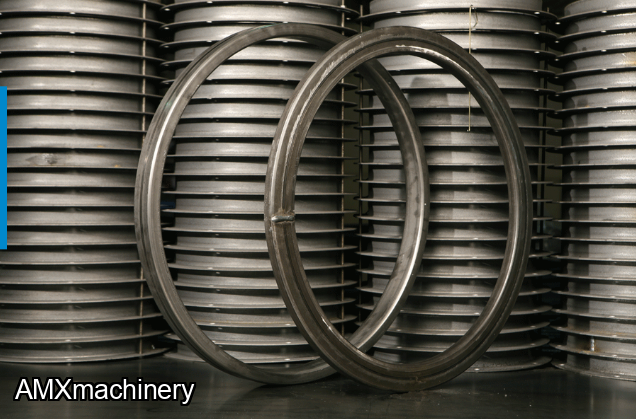

Fully equipped with a 3" die set to roll metal square tube into rings. Perfect solution for any fabrication shop looking to speed up the manual process. These metal roller benders are popular amongst the metal fence manufacturing, green house manufacturing, roll cage fab shops, and welding fab shops.
- ISO 9001 certified
- Hydraulic top roller positioning with digital readout
- Max capacity: 4” tube and 3-1/2” pipe
- Heavy Duty 5-1/2HP AC main motor
- Heavy welded all steel construction
- Quiet compact hydraulic system
- Custom-made rollers are available per request, such as steel, nylon, etc.
- One year industrial warranty for parts
- One set of universal combination rollers can do most works except pipes & round tubes (will need special dies)
- Foot pedal
| Dia. of Roller | 8 1/2" |
| Dia. of Roller Shaft | 3" |
| Roller Speed | 16 RPM |
| Motor | 5-1/2" HP, 220V/440V, 3 Phase |
| Dimiensions | 51" x 45" x 72" |
| Weight (with top roller hydraulic positioning) | 2,450 lbs. |
| Oil Capacity | 28L =8 Gal |
| 34T-PRB-75H | ROLL SET FOR 3/4 INCH TUBING FOR GMC PRB-75H |
| 1T-PRB-75H | ROLL SET FOR 1 INCH TUBING FOR GMC PRB-75H |
| 114T-PRB-75H | ROLL SET FOR 1-1/4 INCH TUBING FOR GMC PRB-75H |
| 112T-PRB-75H | ROLL SET FOR 1-1/2 INCH TUBING FOR GMC PRB-75H |
| 2T-PRB-75H | ROLL SET FOR 2 INCH TUBING FOR GMC PRB-75H |
212T-PRB-75H
3T-PRB-75H | ROLL SET FOR 2-1/2 INCH TUBING FOR GMC PRB-75H
ROLL SET FOR 3 INCH TUBING FOR GMC PRB-75H |
| 34P-PRB-75H | ROLL SET FOR 3/4 INCH PIPE FOR GMC PRB-75H |
| 1P-PRB-75H | ROLL SET FOR 1 INCH PIPE FOR GMC PRB-75H |
| 114P-PRB-75H | ROLL SET FOR 1-1/4 INCH PIPE FOR GMC PRB-75H |
| 112P-PRB-75H | ROLL SET FOR 1-1/2 INCH PIPE FOR GMC PRB-75H |
| 2P-PRB-75H | ROLL SET FOR 2 INCH PIPE FOR GMC PRB-75H |
212P-PRB-75H
3P-PRB-75H | ROLL SET FOR 2-1/2 INCH PIPE FOR GMC PRB-75H
ROLL SET FOR 3 INCH PIPE FOR GMC PRB-75H |
