Identificador: 400
Abierta
Descripción

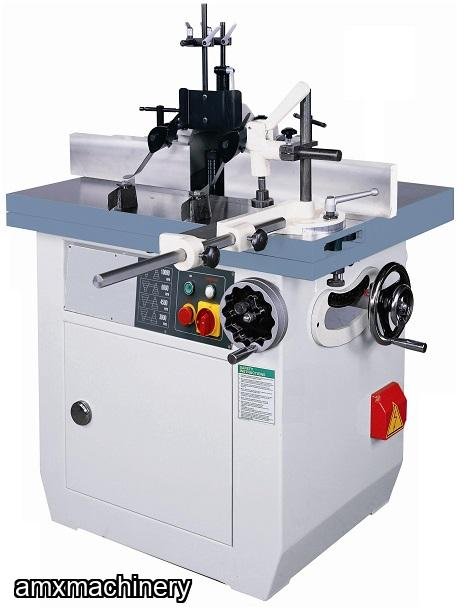

PART # 2TA-SP-735S - TROMPO CON MESA DESLIZABLE
New with warranty
Features:
Designed for heavy industrial work.
Industrial full power motor for maximum cutting capacity.
Quick-change spindles.
Forward / reverse switch.
Individual two side micro adjustable fence.
Precision ground large cast iron table.
Three spindle speeds for versatile cutting.
Industrial full power motor for heavy cutting capacity.
Sealed long-life ball bearing.
Metal 4” dust hood.
Heavy sheet metal cabinet base for durability usage.
Magnetic control for overload protection.
SPECIFICATION | LP2-SP-732 | LP2-SP-735 | LP2-SP-742 |
Table Sizes | 28" x 32" | 27-1/2" x 35-1/2" | 31-1/2" x 41-1/2" |
Fence Sizes | 4-1/3" x 12" | 5" x 13-1/2" | |
Height of Working Table | 33-1/2" | ||
Table Insert Diameter | 3", 7" | 6-1/2", 8-1/2" | |
Spindle Dimension | |||
Diameter | 1", 1-1/4" | ||
Length under Nut | 4" | 4-1/2" | |
Stroke | 4" | 5" | |
Max. Height under Table | 4-1/4" | ||
Speed (RPM) | 6000/ 8000/ 10000 | 3000/ 4500/ 7500/ 10000 | |
Motor | 5 HP, 3 PH | 7-1/2 HP, 3 PH | |
N.W. | 585 LBS | 690 LBS | 850 LBS |
G.W. | 630 LBS | 860 LBS | 900 LBS |
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
MESA ARMADORA BASTIDORES - PIES 5X12
PARTE # 2RT-R200E/A - MESA ARMADORA BASTIDORES - PIES 5X125'x12' Assembly TableHold Down Beam with (5) Adjustable Hold Down Cylinders45 Degree Vertical EaselSquaring Bars on Right, Left, and Bottom Sides1" Thick Formica Surfaced TableHeavy Duty Steel FrameScrew Driver Not IncludedCrated Dimensions: 67" X 168" X 30" H and 2152 LbsOptions:- R200A - Additional Beam Assembly
AMXmachinery
CORTADORAS DE PERNOS - ¼” - ¾” - PARA HACER TAQUETES RAYADOS
PARTE:
2TA-DC78 - CORTADORAS DE PERNOS - ¼” - ¾” -
PARA HACER TAQUETES RAYADOSNUEVA CON GARANTIACAPACIDAD DE DIAMETRO: 1/4" A 3/4"MOTOR: 1 HP, 1 PH, 115VVELOCIDAD: 24 A 28 PIES/MINTAMANO MINIMO DE ALIMENTACION: 8-3/4" DE LARGOTAMANO PAQUETE: 25" X 21" X 27"PESO NETO: 128 LBSPESO DE EMBARQUE: 187 LBSALIMENTACION AUTOMATICA Y ROTATIVAHACE PEQUENO ANGULO A CADA PUNTA DE LOS PERNOS PARA FACIL USOLONGITUD DE LOS PERNOS AJUSTABLEBASE DE HIERRO FUNDIDOSE USA TAMBIEN JUNTO CON LA BASTONERA LB-...
AMXmachinery
PARTE: 12526 - CENTRO DE TRABAJO CNC - ROVER GOLD 1232
PARTE: 12526 - CENTRO
DE TRABAJO CNC - ROVER GOLD 1232
USADO - MUY BUENAS CONDICIONESNumerically
controlled machining centre ROVER GOLD 1232
Working fields: X = 3.280 mm; Y = 1.260 mm; (electrospindle axis)
Z Clearance = 180 mm with H=74 mm modules – Z Stroke = 364 mm
WORKING TABLE
6
ATS panel supports - L = 1240 mm - 18 sliding bases for vacuum
6
back stops of 115 mm stroke and 26 mm height spacers
...
AMXmachinery
PARTE: AMX-10159 - EXTRACTOR DE TUBO - DIAMETRO INTERNO 15-3/4” - MOTOR 3/4 HP
PARTE: AMX-10159 - EXTRACTOR DE TUBO - DIAMETRO INTERNO
15-3/4” - MOTOR 3/4 HP
USADO - MUY BUENAS CONDICIONES
MOTOR 3/4 HP, 220/440V, 3 FASES,
1750 RPM, SIEMMENS
DIAMETRO INTERNO: 15-3/4”
DIAMETRO EXTERNO: 18”
MEDIDAS TOTALES: 25” LARGO X 13”
ANCHO X 18” ALTO
TODOS LOS 4 BALEROS NUEVOS
