Description

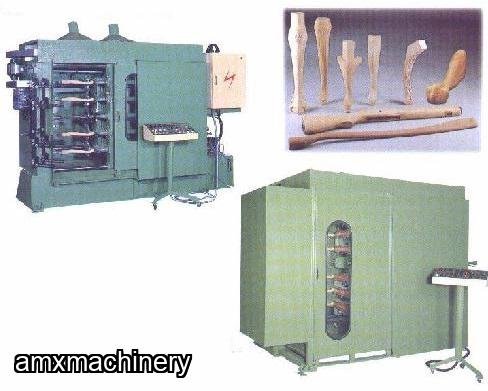

PARTE # 2TA-CL-1006S - TORNO COPIADOR IRREGULAR MULTIPLE CON LIJADOR
PARA FABRICAR 4 a 5 PIEZAS A LA VEZ

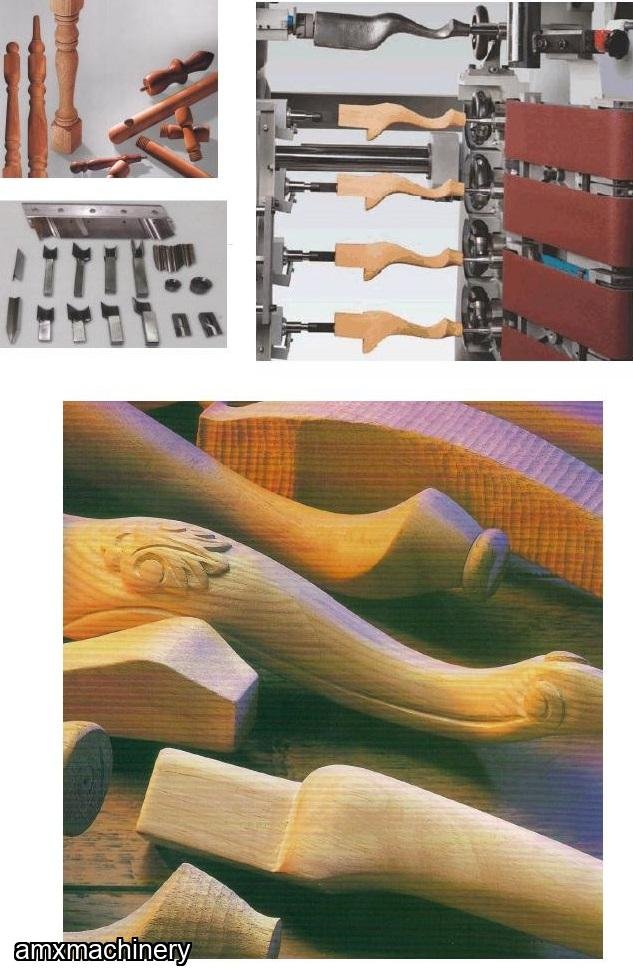

IDEAL PARA EL COPIADO MULTIPLE DE PIEZAS COMO PATAS PARA SILLAS PROVENZALES Y QUEEN ANNE, CABOS PARA PALA, ZAPAPICO, ETC.
Features:
Use the template to make easy duplicate copy performance.
Specially designed for processing wood under the length of 39-1/2" and diameter of 8-1/4".
Runs automatic continual cycles from feeding to finish.
Variable cutting speed controls and uses hydraulic power to get best driving and cutting force.
Performs exact positioning setting for wood materials and operates very efficiently.
Besides the two rough cutters, the machine also coordinates with profile-typed blades for the fine finish shape cutting.
The centralized control panel provides convenient operation of the machine.
Industrial full power motor for maximum cutting capacity.
Precision sealed long-life bearing.
Heavy cast iron frames and table for durability usage.
|
SPECIFICATIONS |
2TA-CL-1006 |
2TA-CL-1006S |
|
Max. Working Length |
6-3/8" ~ 39-1/2" |
|
|
Max. Working Diameter |
1-1/8" ~ 8-1/4" |
|
|
Turning Motor |
10 HP x 2 |
|
|
Hydraulic Motor |
3 HP x 1 |
|
|
Sander Motor |
----------- |
1 HP x 2 |
|
Working Pieces per Cycle |
5 pcs |
5 pcs |
|
Cutting Circle |
2 ~ 12 Times/ Min. |
|
|
Main Spindle Speed |
2000 ~ 6000 RPM (var) |
|
|
Electrical Control Style |
By AC 220V Relay Control |
|
|
Machine Dimensions |
120" x 47" x 110" |
|
|
N.W. |
6240 LBS |
|
|
G.W. |
6900 LBS |
|
