Descripción

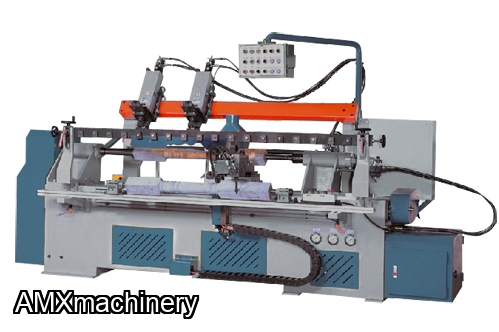

PARTE # 2TA-CL-51SAP – TORNO COPIADOR AUTOMATICO – 59” ANCHO
Nuevo con garantia
Features:
- The lathe is suitable for little quantity and multiple style production use.
- Just put original material or template for duplicate productions.
- It is not needed to use profile knife for cutting, saves the cutter's cost.
- The cutter carriage's forward and backward movements are hydraulically operated with feed speed control providing a smooth motion and stable cutting performance.
- Adopts the precision hydraulic copy unit, the workpiece of most form can be duplicated.
- Easy to operate and lower maintenance cost.
- There is a tong shaving knife to precut and guide ring to support the workpieces when cutting. This will enable the cutting performance to be stable and more accurate.
- Equipped with two sets of copying devices. One is copying device, which is driven by links and adopts U-cutting tools. The other one is sample copy device by hydraulic system and adopts V-cutting tools.
- Equipped with material center set up rack and automatic lubricator to lubricate the slide ways and keeps the slide ways in the optimal lubricated condition.
- Industrial full power motor for maximum cutting capacity.
- Precision sealed long-life bearing.
- Heavy cast iron frame and table for durability usage.
SPECIFICATIONS | CL-59SAP |
Max. Between Center | 59" |
Max. Finish Product Dia. | 4-1/4" |
Spindle Speed | 2000 ~ 6000RPM |
Main Motor | 7.5 HP |
Hydraulic Motor | 3 HP |
Template Copier | One |
Model Copier | One |
Max. Copier Travel | 3-1/8" |
Total Cutting Knife | 4 |
Feed Speed | Variable |
Operation | Manu. Semiauto, Auto |
N.W. | 2900 LBS |
G.W. | 3400 LBS |
