Descripción

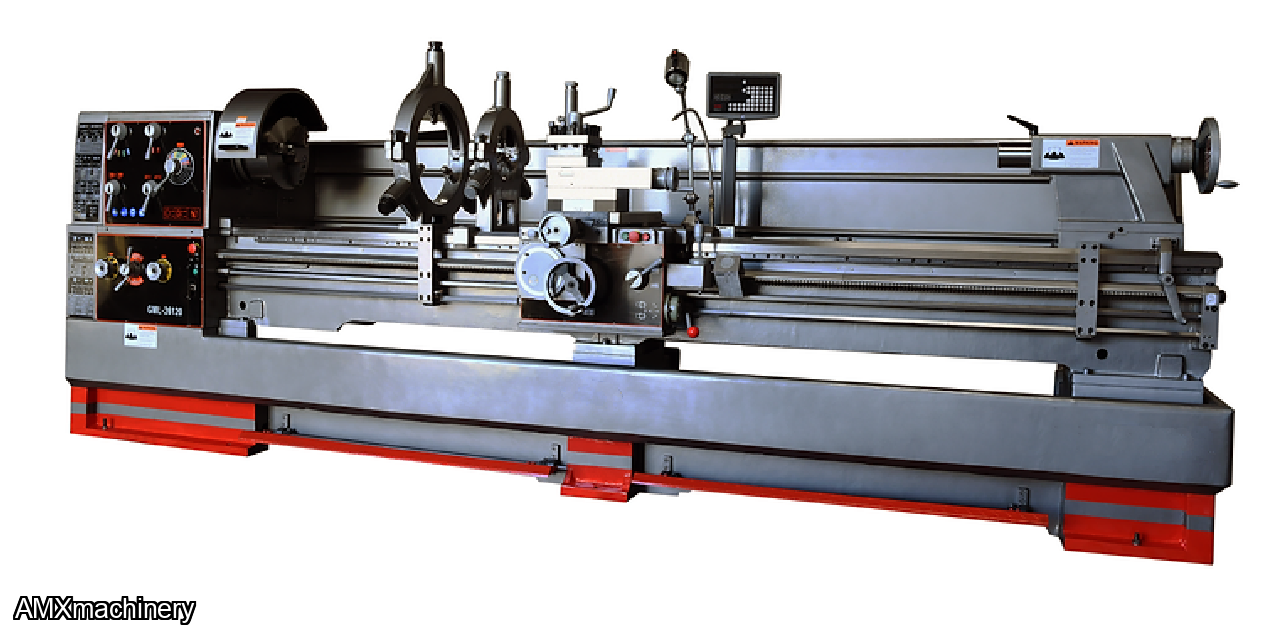

TORNO 32 x 120'' PARTE: 2GM-GML-32120
Heavy Duty Precision Gap Bed Lathe 32” x 120” 4-1/8” bore, 15HP Motor.
- ISO 9001 certified
- Large spindle bore 4-1/8”
- 4-way rapid traverse on Longitudinal and cross ways
- All dual inch/metric dials.
- solid cast iron machine base
- Heavy Duty main motor 15 HP
- 12 spindle speeds from 25-1,600 rpm
- 54 kinds of inch threads and metric threads
- Threading and feeding rate change by levers
- Spindle is balanced, hardened and precision ground
- Spindle is supported at 3-point by high precision bearings
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
- Tools box with leveling pads
- Free SINO DRO, installed
- Free Taper turning attachment, , installed
- 12” 3-jaw chuck with top reversible jaws
- 16” 4-jaw chuck
- 20” Face plate
- 10” drive plate
- ¾”-7-1/2” steady rest with roller jaws
- 1”-5” follow rest
- Removable gap
- 4-way tools post
- Foot brake
- Halogen Work light
- coolant system
- Full length rear splash
- (2) dead centers and (1) reducing sleeve
- Thread chasing dial
- Tool box and leveling pads
Max. swing over bed | 32” |
Max. length of workpiece | 120” |
Max. swing over cross slide |
