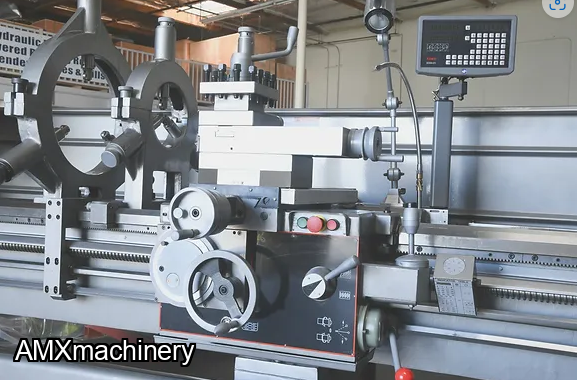

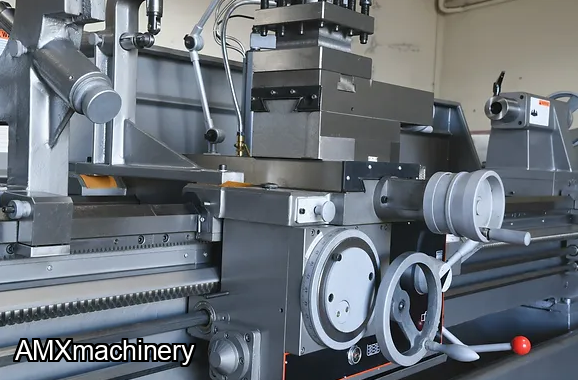

TORNO 26 x 160'' PARTE:2GM-GML-26160
Heavy Duty Precision Gap Bed Lathe 26” x 160”, 4-1/8” Bore, 15HP Motor.
- ISO 9001 certified
- Large spindle bore 4-1/8”
- Heavy Duty spindle D1-8
- Heavy Duty guideway width 16”
- Heavy Duty main motor 15HP
- 16 spindle speeds from 25-1,600 rpm, 16 speeds
- 54 kinds of inch threads, and 54 kinds of metric threads
- Threading and feeding rate change without changing gears
- Spindle is balanced, hardened and precision ground
- Spindle is supported at 3-point by high precision bearings
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
- One year industrial warranty for parts
| Max. swing over bed | 26" |
| Max. length of workpiece | 160" |
| Max. swing over cross slide | 17 1/4" |
| Max. Swing in gap | 35 3/8" |
| Width of Bed | 16" |
| Effective length in gap to spindle | 9" |
| Effective length in gap to chuck jaws | 4 1/2" |
| Spindle bore | 4 1/8" D1-8 |
| Taper of spindle center | M.T. #5 |
| Spindle speeds | 25-1,600 rpm / 16 steps |
| Longitudinal feeds | 0.0016-0.055 IPR, 25 kinds |
| Cross feeds | 0.0008-0.027 IPR, 25 kinds |
| Inch threads | 80-7/16 TPI, 54 kinds |
