Identificador: 1666 Abierta

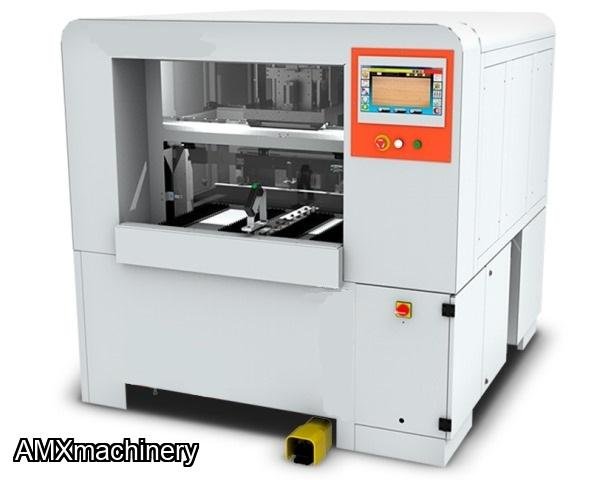

TALADRO MULTIPLE Y RANURADORA - GT800 CNC
TALADRO MULTIPLE Y RANURADORA - GT800 CNC
TALADRO MULTIPLE Y RANURADORA - GT800 CNC
TALADRO MULTIPLE Y RANURADORA - GT800 CNC
TALADRO MULTIPLE Y RANURADORA - GT800 CNC

TALADRO MULTIPLE Y RANURADORA - GT800 CNC

AMXmachinery1

Contacte al Vendedor
Descripción
PARTE: 2JG-MAG-GT800  -  TALADRO MULTIPLE Y RANURADORA - GT800 CNC


  • Very simple and fast programming
  • Extremely intuitive user interface
  • Importable and text format exportable working programs
  • Up to 1,000 programs can be stored
  • Machines panels from above
  • Suitable for drilling on face and sides of panels, including holes for dowels, hinges, KD Fittings and shelf holes
  • (9) vertical spindles (6 in X axis and 4 in Y axis)
  • Saw Blade Unit in X axis
  • (2) 1 + 1 Horizontal Spindles in X axis
  • (1) 1 + 1 Horizontal Spindle in Y axis
  • Spindles rotations speed: 3,400 RPM
  • Axis speed 25 meters/min | 82 feet/min
  • Panel End Edge Reader for perfect panel assembly
  • Max. panel dims: Y - 800 mm (31.5"), X - Unlimited, Z - 50 mm (2")
  • Min. panel dims: Y - 100 mm (3.93"), X - 250 mm (9.84"), Z - 10 mm
  • Boring Capacity 0 to 800 mm (31.5") with any spindle
  • Ability to execute all drilling operations in a single working cycle
  • CNC programming with 12" touchscreen
  • Automatic panel cleaning with brushes
  • Teleservice software

Pago y Devoluciones
Forma de pago
Visa/Mastercard/American Express
