Identificador: 408 Abierta

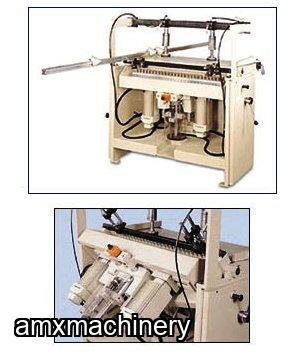

TALADRO MULTIPLE 21
TALADRO MULTIPLE 21

TALADRO MULTIPLE 21

AMXmachinery

Contacte al Vendedor
Descripción

PARTE # 2TA-BR-2132 - TALADRO MULTIPLE - 21 BROCAS

NUEVO CON GARANTIA

CARACTERISTICAS:

- 2 HP direct drive mechanism. For max. drilling power

- Variable stroke speed.

- Fine vertical and depth adjustment.

- Heavy-duty sheet metal frame, full cast iron components and table.

- Magnetic switch. For power protection.

- Pneumatic control automatic stroke.

- Standard quick change drill chuck for easily to change drill bits.




SPECIFICATIONS

BR-2132

BR-2732

Motor (1PH 220V)

2 HP

2 HP x 2

Drill Speed

3400 RPM

3400 RPM

Drill Bit Type

M 10

M 10

Table Size

37-1/2" x 31-1/2"

45" x 31-1/2"

Vertical Base Travel

N/A

N/A

Hor. Base Travel

N/A

N/A

Head Swing (Degree)

0 ~ 90

0 ~ 90

Standard Drill Spindle

21 BITS

32 BITS

Drill Between Center

32 MM

32 MM

First to Last Drill

640 MM

832 MM

Multi Drill Head Exchange

NO

NO

Air Clamps

2

2

Stroke Rate

0~10 Cycle/Min

0~10 Cycle/Min

Head Stroke (Drill Depth)

0" ~ 3"

0" ~ 3"

N.W.

770 LBS

860 LBS

G.W.

980 LBS

1100 LBS
