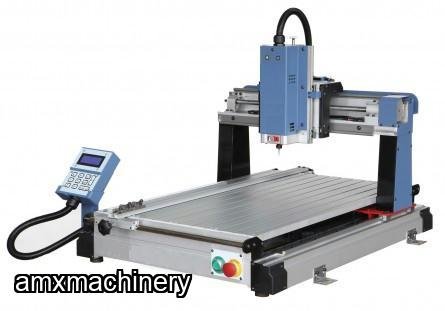

PARTE: 2TA-R-1520 – ROUTER CNC – MESA 15”X 20”
3 Axis table top machine easily to do cutting, engraving, routing and etching for signs, sample or small production at the material such as wood, plastic, acrylic, plexi-glass, corian....
User friendly iPicture software transfers the images, picture file to 3D cutting program with in a second at superior performance.
Optional CAD/CAM system can create and edit part programs then send to machine for cutting. DXF files can be imported, modified and edited from here to create a G code too.
Moving gantry construction for space saving.
Linear guides and sliding blocks are prismatic pre-loaded with recirculation bearings to ensure maximum rapid traverse and precision.
All the axis are equipped with a bolt screw driving system
MODEL NO. | R-1318 | R-1520 |
X AXIS MAX. WORK SIZE | 13” | 15.3” |
Y AXIS MAX. WORK SIZE | 18 | 20.5” |
Z AXIS MAX. WORK SIZE | 3” | 4.13” |
POSITION ACCURACY | 0.004” | 0.003” |
SPINDLE POWER (DC Brushless) | 150 W | 500 W |
SPINDLE (RPM) | 15000 | 23000 |
TOOL COLLET | 1 / 4” | 1 / 4” |
AXIS DRIVING MOTOR | STEP | STEP |
PC SOFTWARE | iPicture | iPicture |
INTERFACE | USB Port | USB Port |
CAD/CAM SOFTWARE | Optional | Optional |
MACHINE SIZE | 25” x 22” x 21” | 33” x 43” x 27” |
WEIGHT (LBS) | 122 | 132 |
