Identificador: 1715 Abierta
ROUTER CNC – 4 X 8 PIES – MOTOR 8.6 HP (6 KW) – MESA VACIO
ROUTER CNC – 4 X 8 PIES – MOTOR 8.6 HP (6 KW) – MESA VACIO
ROUTER CNC – 4 X 8 PIES – MOTOR 8.6 HP (6 KW) – MESA VACIO
ROUTER CNC – 4 X 8 PIES – MOTOR 8.6 HP (6 KW) – MESA VACIO
ROUTER CNC – 4 X 8 PIES – MOTOR 8.6 HP (6 KW) – MESA VACIO
ROUTER CNC – 4 X 8 PIES – MOTOR 8.6 HP (6 KW) – MESA VACIO
ROUTER CNC – 4 X 8 PIES – MOTOR 8.6 HP (6 KW) – MESA VACIO
ROUTER CNC – 4 X 8 PIES – MOTOR 8.6 HP (6 KW) – MESA VACIO
ROUTER CNC – 4 X 8 PIES – MOTOR 8.6 HP (6 KW) – MESA VACIO
ROUTER CNC – 4 X 8 PIES – MOTOR 8.6 HP (6 KW) – MESA VACIO
ROUTER CNC – 4 X 8 PIES – MOTOR 8.6 HP (6 KW) – MESA VACIO
ROUTER CNC – 4 X 8 PIES – MOTOR 8.6 HP (6 KW) – MESA VACIO
ROUTER CNC – 4 X 8 PIES – MOTOR 8.6 HP (6 KW) – MESA VACIO
ROUTER CNC – 4 X 8 PIES – MOTOR 8.6 HP (6 KW) – MESA VACIO
ROUTER CNC – 4 X 8 PIES – MOTOR 8.6 HP (6 KW) – MESA VACIO

ROUTER CNC – 4 X 8 PIES – MOTOR 8.6 HP (6 KW) – MESA VACIO

AMXmachinery1

Contacte al Vendedor
Descripción

PARTE: STANDARD-408 – ROUTER CNC – 4 X 8 PIES – MOTOR 8.6 HP (6 KW) – MESA VACIO

Nuevo con garantía

Mesa 4 X 8 pies y 5 X 10 pies


Optional:

  • Rotary axis / lathe

Inspection services:

  1. Machine Gantry X Axis square rails Parallel vertical accuracy 0.001” (0.03mm)
  2. Y Axis square rails Parallel vertical accuracy 0.001” (0.03mm)
  3. Z Axis ball screw Parallel vertical accuracy 0.001” (0.03mm)
  4. Machine Re-position accuracy 0.001” (0.02mm)
  5. Machine working accuracy 0.002” (0.05mm)
  6. Grating ruler travel accuracy 0.002” (0.05mm)

FEATURES:

  • All “servo motor” driving system: All axis are driven by brush-less type, high torque AC servo motors.
  • DSP CNC controller is setup to accept standard G-code programming formats along with on board conversational applications.
  • Optional CAD/CAM system can create and edit part programs then send to machine for easy cutting. DXF files can be imported, modified and edited from here to create a G-code.
  • Moving gantry construction for space saving.
  • The rigid steel frame construction has been stress relieved prior to finish machining to provide repeat-ability and accuracy.
  • The HSD spindle uses CP4 DB bearings with a dust-free design. The heavy-duty fan cooling system forces air through the spindle to assist in trouble-free operation.
  • Automatic frequency brake for the spindle allows rapid deceleration resulting in faster tool changes.
  • Linear guides and sliding blocks are prismatic pre-loaded with recirculation bearings to ensure maximum rapid traverse and precision.
  • The X & Y axis are equipped with a precision rack & pinion driving system.
  • The Z axis utilizes a ball screw assembly complete with the pre-loaded and ground screw for long life and optimum accuracy.

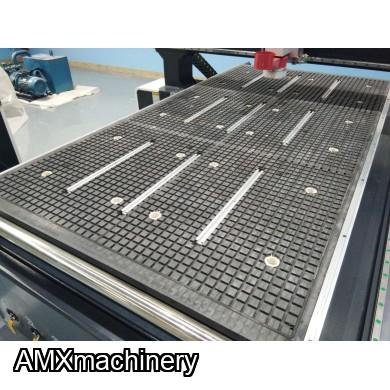

  • Special design 4 zone vacuum table surface for powerful hold down.

Machine apply industries:

  • Woodworking industries: Three-dimensional wave plate processing, cupboard doors, wooden doors, window processing video game cabinets and panels,computer table and Plate furniture auxiliary processing.
  • The advertising industry: Advertising signs, logo production, acrylic cutting, forming system module, a variety of materials advertising the production of decorative products.
  • Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

Control system

NK105 DSP control

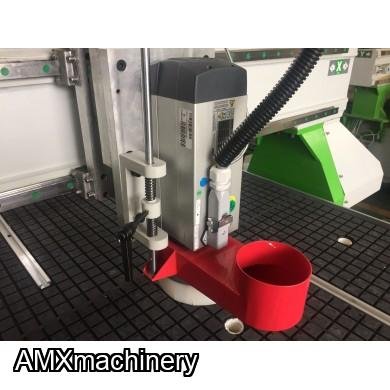

Spindle

Italy HSD 8.6 HP (6KW) air cooling, speed 6,000-18,000 rpm/min

Lathe Frame

Heavy duty metal welding

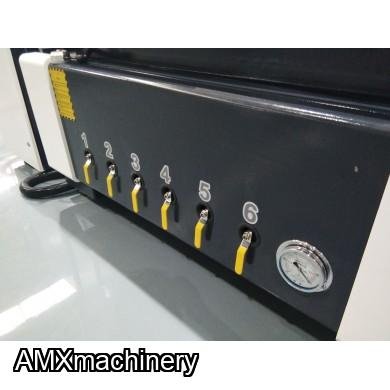

Table

6 zone Vacuum table

Driving System

Japan Yaskawa servo drive & motor

X, Y Axis Structure

Helical rack and pinion drive

Z Axis Structure

Taiwan TBI or HIWIN ball screw

X Y Z Axis Square Rails

Taiwan HIWIN brand linear square rails

Inverter

7.5 KW Inverter

Electric Parts

France Schneider

Limited Switch

Japan Omron

Machine Cable

German Siemens OEM factory cable

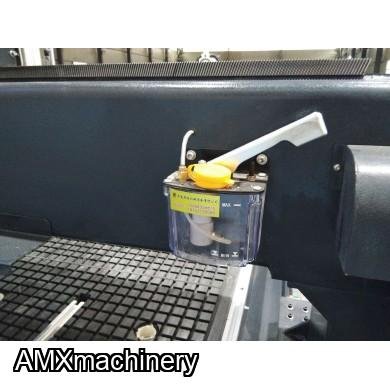

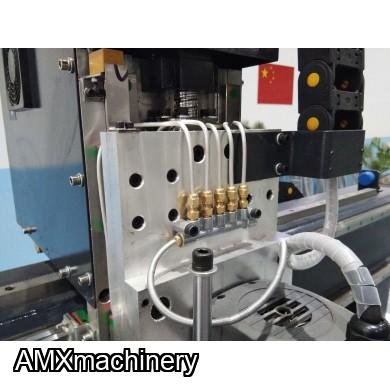

Oil Lubrication

Hand control with Aluminum oil pipe

Machine Working Size

Standard-408; X*51’’, Y*98’’, Z*7-3/4’’ / Standard-510; X*63’’, Y*126’’, Z*7-3/4’’

Machine Size (L x W x H)

Standard-408; 122” x 87” x 71” / Standard-510; 149” x 99” x 71”

Machine Max. Travel Speed

1,400 IPM

Machine Max. Working Speed

1,000 IPM

Machine Power

3 PH ,220 V ,38 AMP

Machine Net Weight

STANDARD-408; 3,510 lbs / STANDARD-510; 3,960 lbs

Support Dictate Format

*.plt,*.dst,*.dxf,*.bmp,*.dwg,*uoo

Control Switch

German Moeller

DC Electrical Switch

Taiwan MEAN WELL

Vacuum Pump

Option

CAD / CAM Drawing Software

Option
