Identificador: 1027
Abierta
Descripción

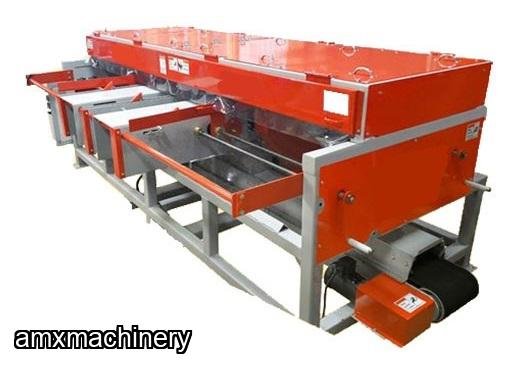

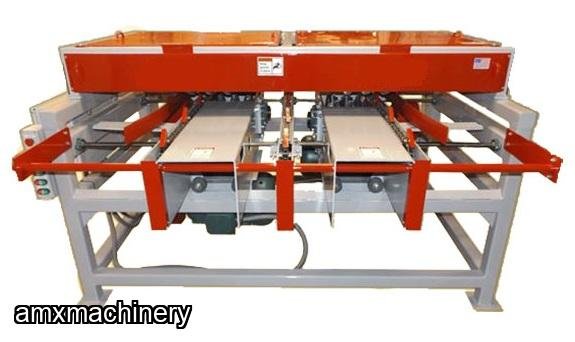

PARTE: 2FA-2NX-48 – RESACADORA DOBLE – 48” CAPACIDAD LARGO
NUEVA CON GARANTIA
HASTA 4,000 RESAQUES/HR
Standard Features
Adjustable Notch up to 3"
Variable Speed
Almost Unlimited Capacity
Machine Specs
Dimensions
Length: Model Dimensions 24"
Width: 73"
Height: 56"
Infeed Height: 40"
Power
Cutter Head Motors: 20HP 208/230/480/3/60 TEFC
Infeed Motor:1-1/2 HP 208/230/480/3/60 TEFC
VFD: For lnfeed Motor Variable Speed
Completely Pre-Wired Motor Starter with Start/Stop Buttons and Circuit Overload Protection
Specifications
Cutter Heads: 12" dia x 9" wide
Adjustable Cutter Head Position: Adjust Length of Cut with the Tum of a Handle
2" Arbor & Bearings
Capacities
Material Length: 36" to Model Dimension
Material Width: 8"(Standard)
Material Height: 2-1/2" to 4"(Standard)
Infeed Speed: 0-44 FPM
Up to 4000 Stringers Per Hour
Models
48" Length Capacity Model
72" Length Capacity Model
96" Length Capacity Model
120" Length Capacity Model
144" Length Capacity Model
168" Length Capacity Model
192" Length Capacity Model
Options
Machine Options
Automatic Inline Infeed
Waste Conveyors
Capacity Options
Pallet Fixture(run assembled 2-way pallets)
System Add-On Options
Infeed Chain/Conveyor
Outfeed Chain/Conveyor
Stacking Racks
Sorting Table
