Descripción
PRENSA CNC 33 TONELADAS 5' PARTE: 2GM-HPB-3305CNC
Is a 33 ton press brake with two axis Estun Control. This is a Taiwain quality machine, designed in the USA. With it's rugged steel framework, quality hydraulic and electronic components, makes this press brake a great addition to any shop.
- ISO 9001 certified
- Meet OSHA and CE safety standard

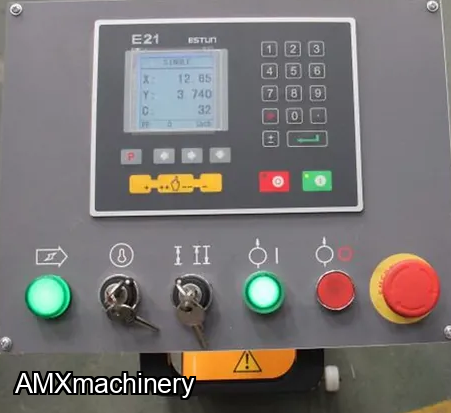

- Easy-to-use programmable Estun E21 control
- Easy programming, stores 40 programs
- Estun E21 control keep a pice count for large production run
- Japan Yaskawa drive
- Precision ball screws for 24” back gauge
- Germany Rexroth hydraulic system
- Schneider electrical components
- All steel construction for maximum rigidity
- Hydraulic logic system centrally located and quiet
- Safety type foot pedal with E21 screen, control panel and E-stop switch
- Safety 24V low voltage & overload protection

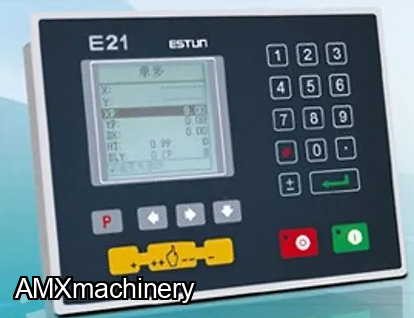

- Estun E21, 2 Axis Controller
- ( 2 ) 24” front support arms
- Quick release segmented ( American Style Tooling ) punch holder
- Full Length Gooseneck Punch HRC 50 Full Length Vee Die with 6 assorted sizes HRC 50,1”,3/4”,5/8”, ½”, 3/8”, ¼”
- Lntech Light Curtain System
- Side and Back Safety Fence
- Movable Foot Pedal with E21 screen, control panel ,and E-stop meet OSHA safety standard
| Maximum Pressure | 33 Tons |
| Bending Lenght Capacity | 63" (5'3") |
| Distance Between Uprights (housing) | 51" |
Ram Stroke Travel Cylinder Travel Adjustment (max) | 4" 2" |
| Table Width | 6" |
| Distance Between Table and Ram | 13-1/4" |
| Throat Depth | 8" |
| Back Gauge Distance | 21" |
| Back Gauge Repeatability | .008" |
| Y-Axis Repeatability | .008" |
Approach speed, inch / second Working speed, inch / second Return speed, inch / second | 3.5” 0.39” 2.75” |
Main motor:
Motor for back gauge:
Motor for bending angle setting: | 5-1/2 HP, 3 Phase 25 AMP Prewired: 220VAC (+/- 10%)
1 HP, 3 Phase 220VAC (+/- 10%)
1/2HP, 3 Phase 220VAC, (+/- 10%) |
Hydraulic oil tank capacity:
Recommended Oil: | 20 Gal.
Hydraulic Oil Shell #68HD |
Machine weight: Machine size, L x W x H: Shipping dimensions: | 5,350 LBS 91"x56"x87” 91"x56"x87" |
