Identificador: 2163
Abierta
Descripción

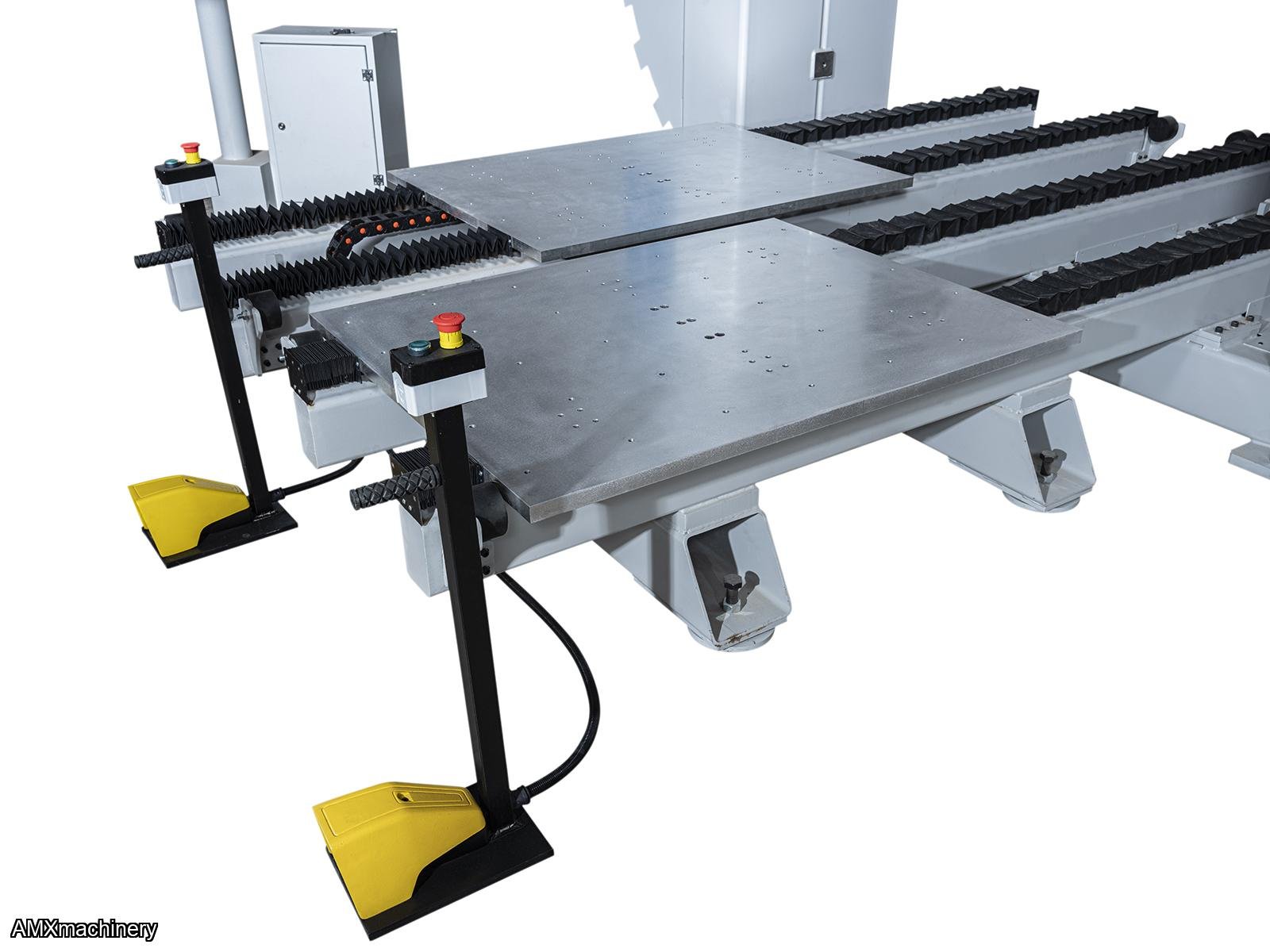

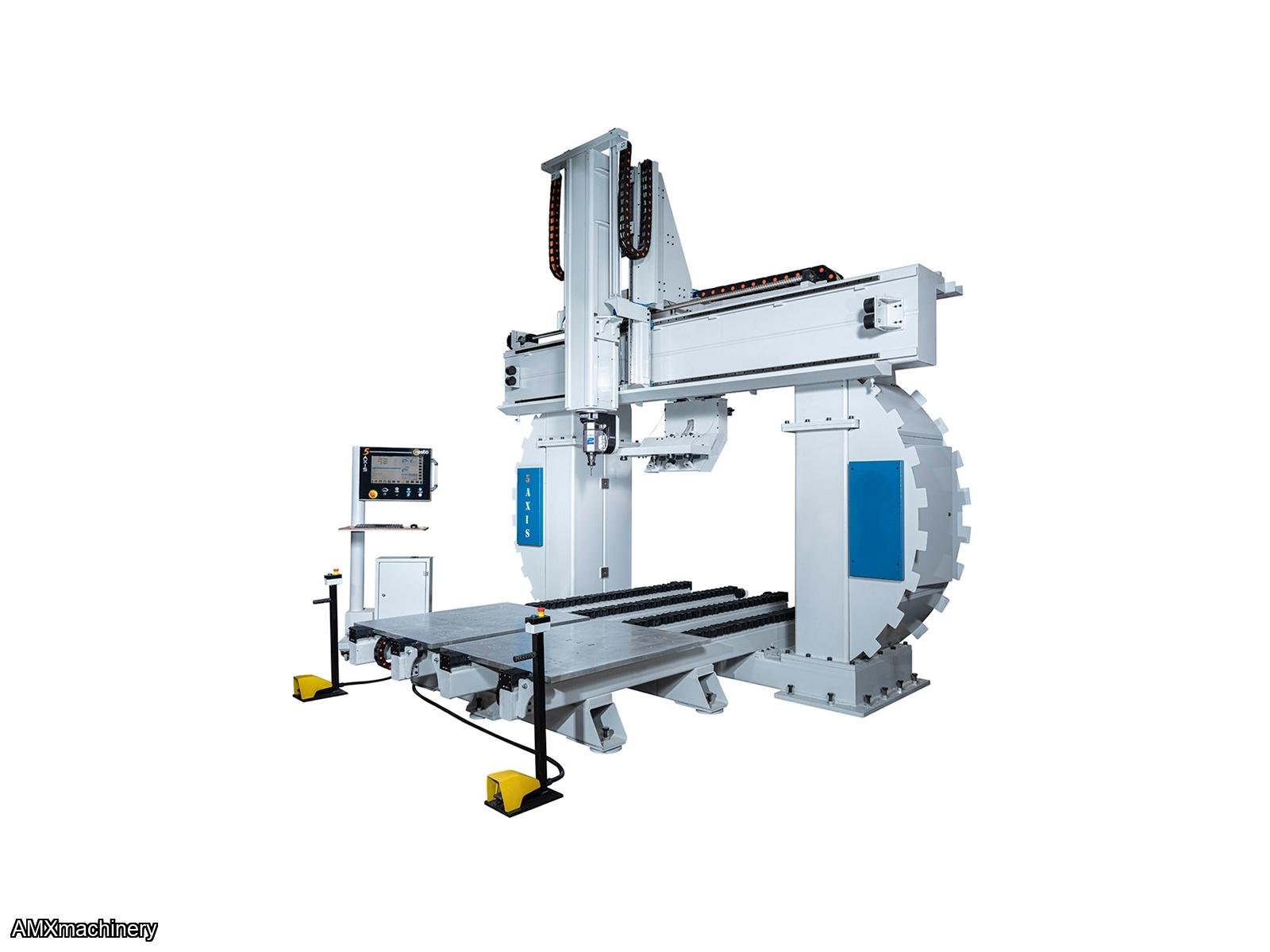

PARTE: 4NE-5AXISPARS - CENTRO DE MAQUINADO CNC - 5 AXIS - PARS
Working Area: Y:1350MM- X: 2100 MM two different table 1000+1000- Z: 1200 MM
• Control Unit: TPA control unit
• Y1/ Y2 Axis Motor: 1.5 kw Rack and Pinon
• X Axis Motor: 1.5 kw Rack and Pinon
• Z Axis Motor: 3 kw Ball Screw with break
• Tool Changer: Magazine for 5 pieces
• Reductor: Liming FE Series
• Spindle Motor: HITECO TILT-J Bi-rotary 2 Axis head
• Vacuum System: Backer Vacuum 250 M^3
• Oiling System: ILC Self Lubrication System
• Machine Dimension: Length: 4155mm * Width: 3515mm * Height: 4510mm
• Weight: 7200 KG
• Automatic Tool Measurement Device: YES
• Power: 28 KV
• CAD-CAM Program: Pegasus standard 3d Cad-Cam Program
