ID: 1491
Open
Description

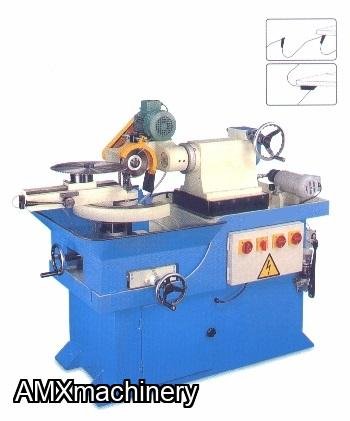

PARTE: 2TA-TG-430FA – AFILADORA AUTOMATICA DE SIERRAS CIRCULARES
NUEVA CON GARANTIA
This automatic feed machine is ideal for those starting out or established sharpening facilities.
Motorized feed moves the grinding head in and out for tip or face grinding and moves to next tooth automatically.
Easy and efficient adjustment.
Employed with straight linear motion guides bearing to ensure longitudinal feed traverse smoothly and accurately.
Loaded with features, it can be used to do the entire job or supplement other machines.
Heavy sheet metal cabinet stand and cast iron body.
High precision and durability.
|
SPECIFICATIONS
|
2TA-TG-622KER
|
2TA-TG-430FA |
|
Saw Blade Dia. |
5" ~ 22" |
4" ~ 36" |
|
Saw Blade Thickness |
1/25" ~ 1/3" |
1/25" ~ 1/3" |
|
Rake Angle |
/- 30° |
- 10° ~ 45° |
|
Side Way Angle |
0° ~ 5° |
0° ~ 30° |
|
Bevel Angle |
0° ~ 5° |
0° ~ 45° |
|
Motor |
1 HP |
2HP |
|
Coolent Motor |
1/8 HP |
1/8 HP |
|
Grinding Wheel |
100 x 16 MM |
150 x 16 MM |
|
N.W. |
400 LBS |
1600 LBS |
|
G.W. |
460 LBS |
1720 LBS |
