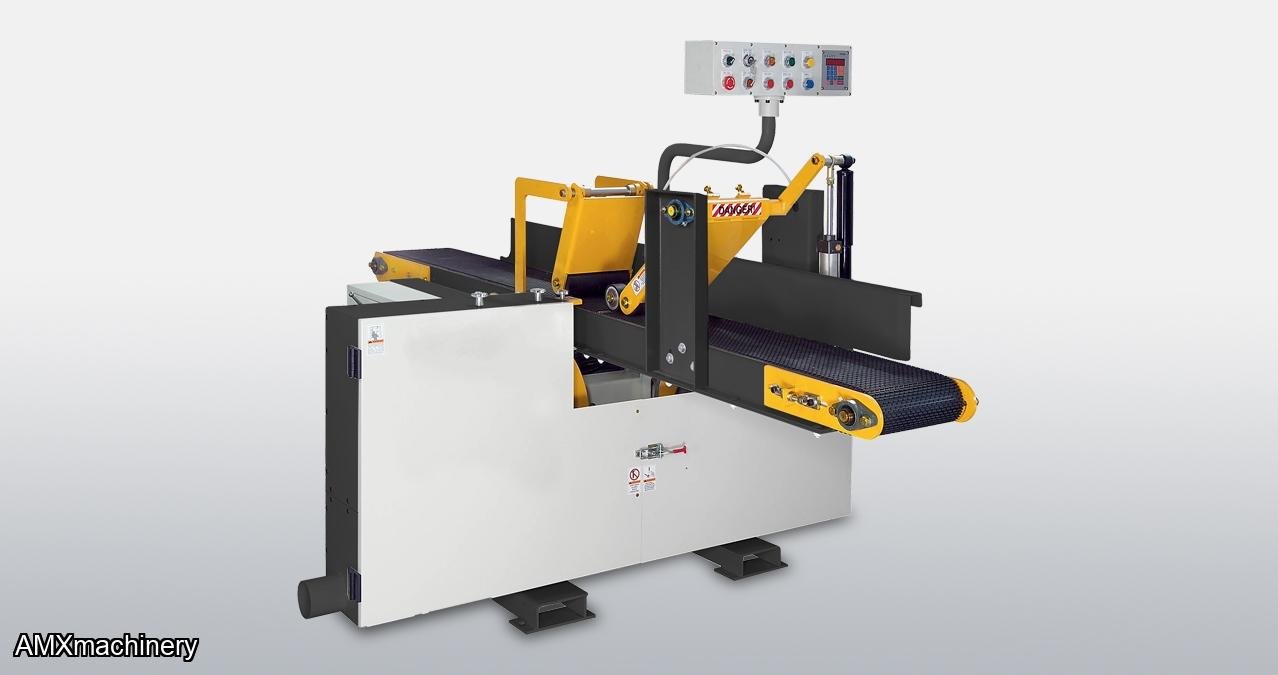

PARTE: 2CK-HR11P - REASERRADORA HORIZONTAL - 1 BANDA - 20 HP – 11.8” ANCHO X 4.92” ESPESOR
AMXmachinery1
Descripción
PARTE: 2CK-HR11P - REASERRADORA HORIZONTAL - 1 BANDA - 20 HP – 11.8” ANCHO X 4.92” ESPESOR
NUEVA CON GARANTIA
Can produce a cut up to 11.8” wide and 4.92” thick. Capable of handling material from 11.8” wide to 9.8” thick. The powerful 20HP motor makes easy work of even hard to cut wood material. The thin kerf 1” wide blade achieves optimum cut quality while maximizing material yield. Equipped with motorized thickness adjustment with digital control for convenient blade height adjustment. The HR11P is economically priced for the small to mid-sized operation looking to improve their efficiency and material yield.
- Powerful 20HP saw motor capable of cutting through virtually any wood species with ease

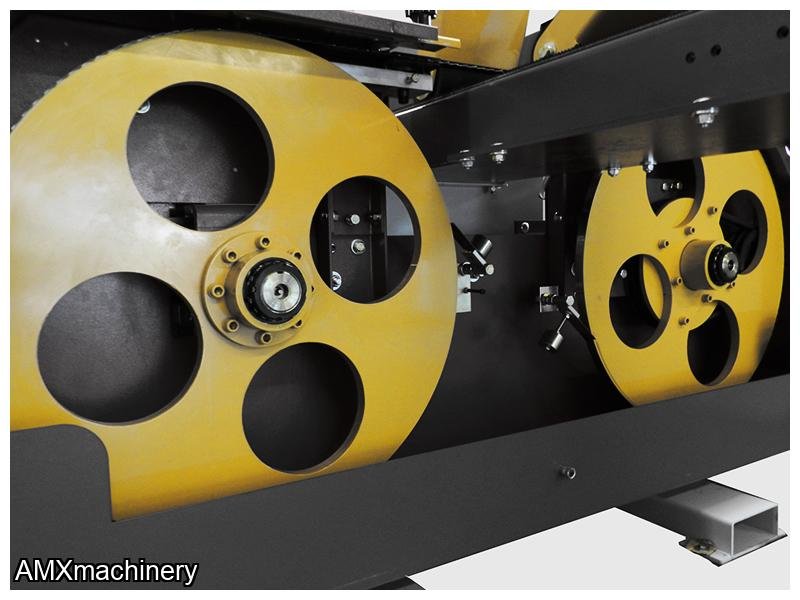

- Solid steel 28” diameter saw wheels capable of running a 1” wide, thin kerf blade for maximum cut accuracy and material yield

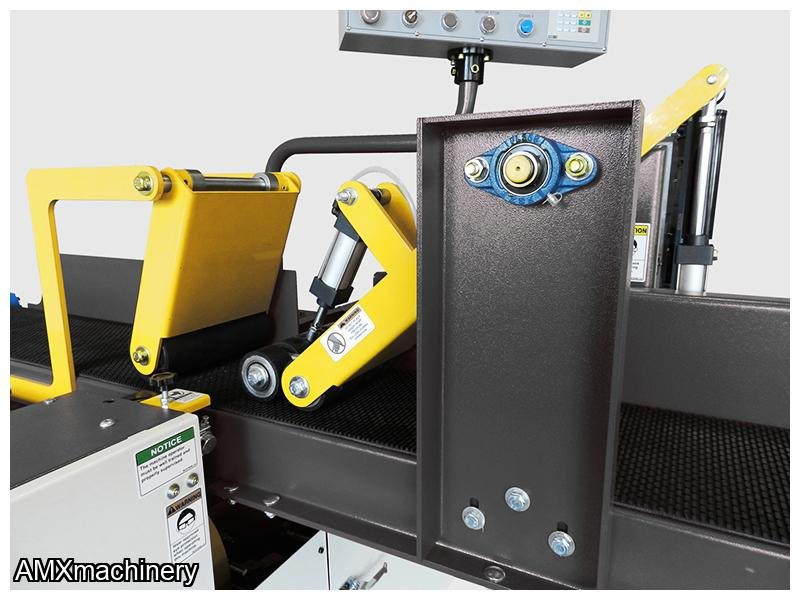

- Pneumatic top pressure rolls for optimum part hold down
- Digital thickness control for fast and convenient height adjustment

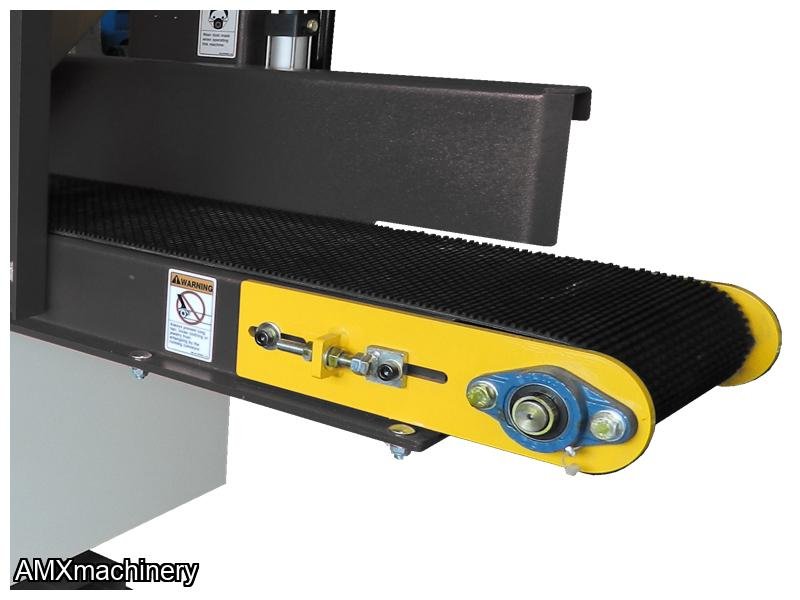

- Powerful 3HP hydraulic unit for controlling the feed conveyor
- Simple operation and low price point allowing for the maximum return on your investment
- Adjustable sandwich style guide system ensures the blades run true and cut straight
- Blade lubrication system ensure the blade runs cool for an optimum blade life

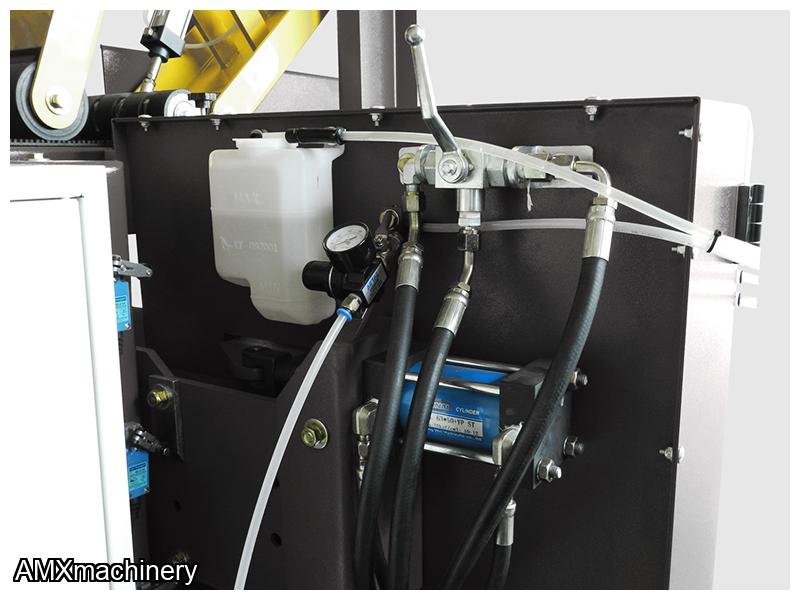

- Hydraulic blade tensioning for superior cutting results
- Motorized thickness adjustment
- Digital thickness control ensures accuracy & repeatability of material thickness
- Air actuated top pressure roller holds material firmly on conveyor belt
- Heavy duty steel band wheels are precision machined and dynamically balanced
- Variable feed speed with a maximum feed speed of 53 FPM
INCH | METRIC | |
Maximum input board size (WxH) | 11.8″ x 9.8″ | 300 x 250mm |
Distance from blade to conveyor table | 0.15” – 4.9” | 4~125mm |
Minimum working length | 15.7” | 400mm |
Conveyor belt size | 11.2” x 215.3” | 285 x 5470mm |
Diameter of saw wheel | 28” diameter x 1” wide | 711″ dia. X 25.4mm wide |
Max. infeed speed | 53 FPM | 16 m/min |
Saw blade size (standard) | 168” x 1” x 0.035″ | 4265 x 27 x 0.9mm |
Tolerance | +/- 0.0039″ | +/- 0.1mm |
Main Motor | 20 HP | |
Hydraulic System Motor (Feed) | 3 HP | |
Gear Box Motor (Blade Rise/Fall) | ¼ HP | |
Dust Hood | 4” x 4 pcs. | 100mm x 4 |
Machine weight | 2438 lbs (1108 kgs) | 1108 kgs |
Shipping dimensions: Frame | 85 ½” x 43 ½” x 44” (1983 lbs) | 2170x1100x1120mm (901 kgs) |
Shipping dimensions: Conveyor | 113” x 24 ½” x 30” (456 lbs) | 2870x620x750mm (207 kgs) |
