PARTE: 2CK-GT400BRD - CEPILLO 2 CARAS - 16” ANCHO X 6.7” ALTO - ESPIRAL - CANTEK
AMXmachinery1
Description
PARTE: 2CK-GT400BRD - CEPILLO 2 CARAS - 16” ANCHO X 6.7” ALTO - ESPIRAL - CANTEK

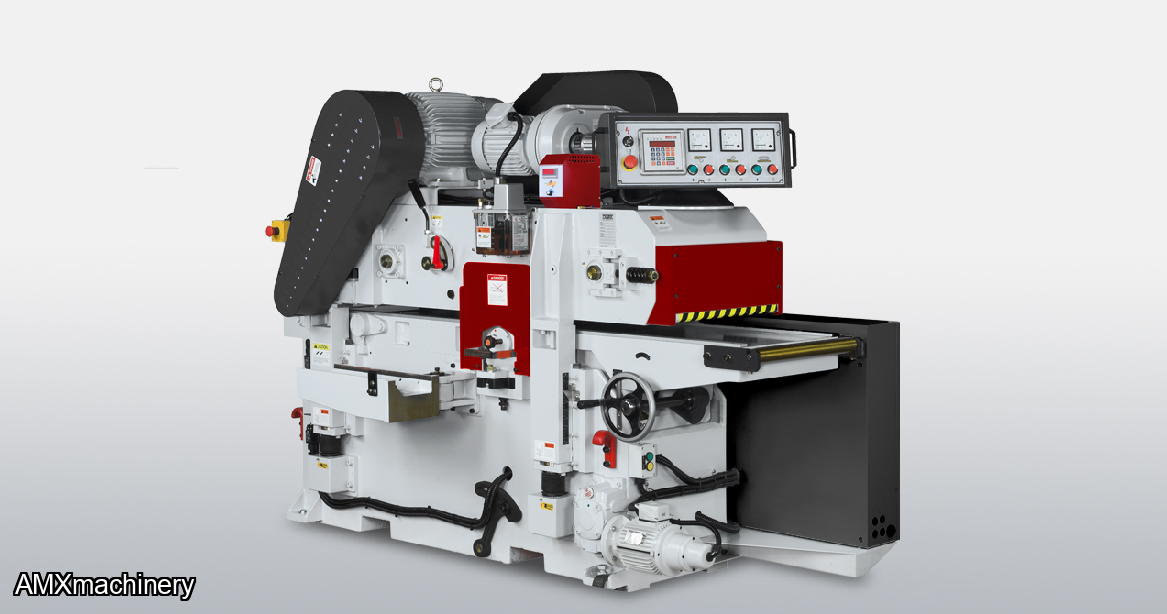

Has a robust cast-iron body for industrial planing day in and day out. The spiral insert knife cutterheads produce a smooth planed finish with maximum stock removal. The material is passed over the bottom head with a spring-loaded pin feed system while the infeed bed is adjustable to determine how much material is removed. The final thickness is keyed in the digital control and the top head & feed assembly automatically move in place.

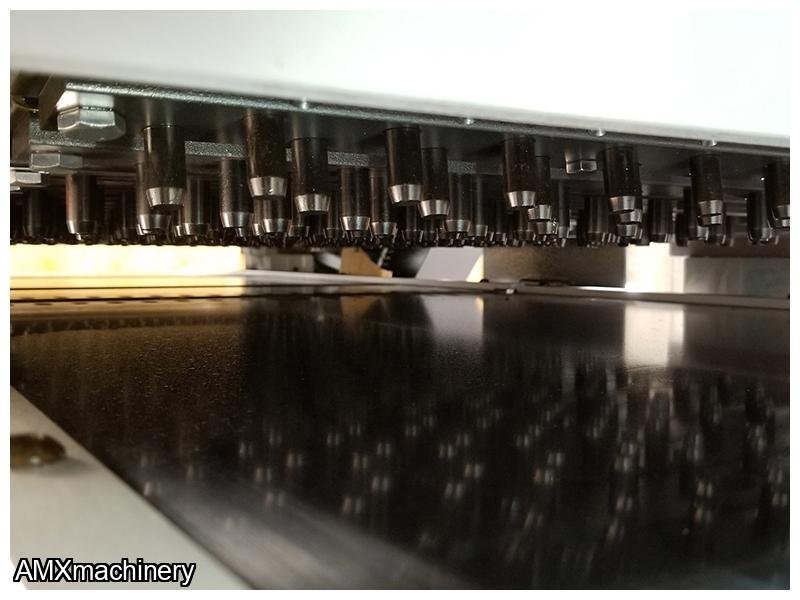

- Spring loaded conveyor pin system ensures material is passed over the bottom cutterhead to resulting in a flat and uniform board prior to planing to thickness on the top head

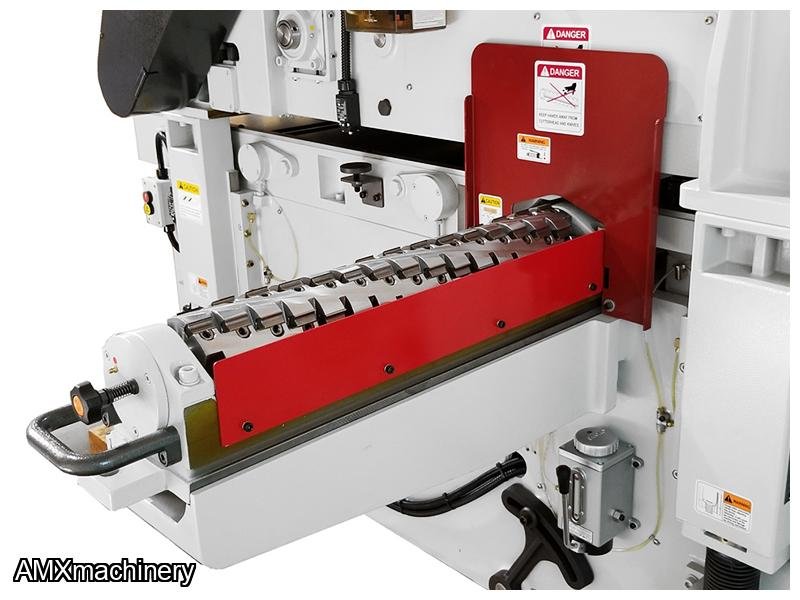

- Spiral insert knife cutterheads with two-sided solid carbide knives produce a smooth finish with increased stock removal capacity and extremely quiet operation
- Heavy-duty cast-iron machine body and table for vibration free cutting
- Digital electronic thickness adjustment in INCH and MM (Inch = 0.001” / mm = 0.01mm resolution) for precise thickness control
- 16″ wide x 6.7″ thick planing capacity
- Cutterheads are spiral insert type with six (6) rows of carbide inserts
- (2) driven and (1) idle bed roll for superior feeding of even difficult material
- Swiveling control panel for more ergonomic access to machine controls
- Inverter variable speed control with feed speeds from 23 to 65 FPM

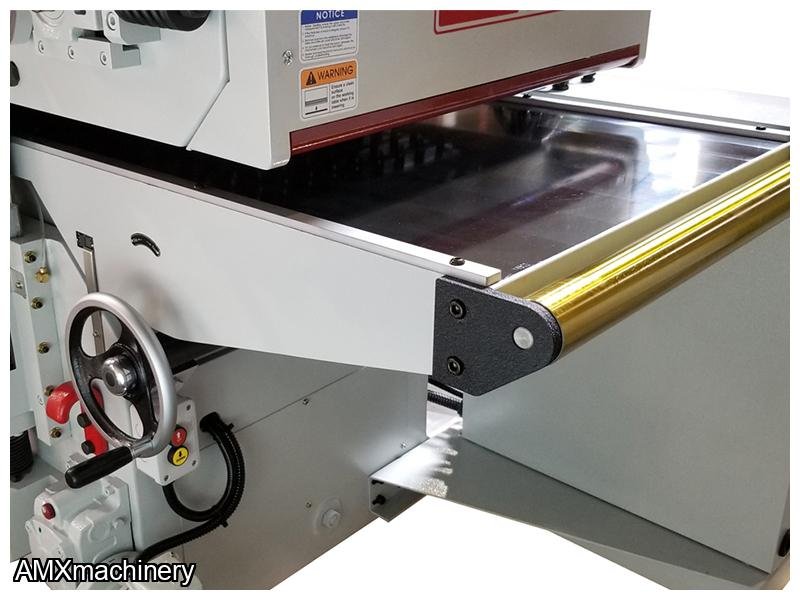

- Easy to access external handwheel adjustment of infeed bed
- Hard chromed worktable for high wear resistance

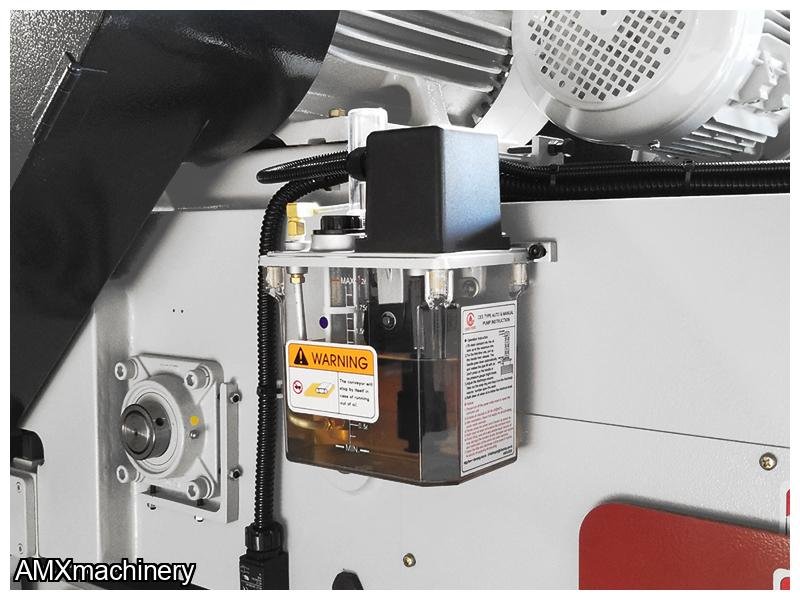

- Auto lubrication to conveyor chain, central lubrication for dovetail elevation guideways

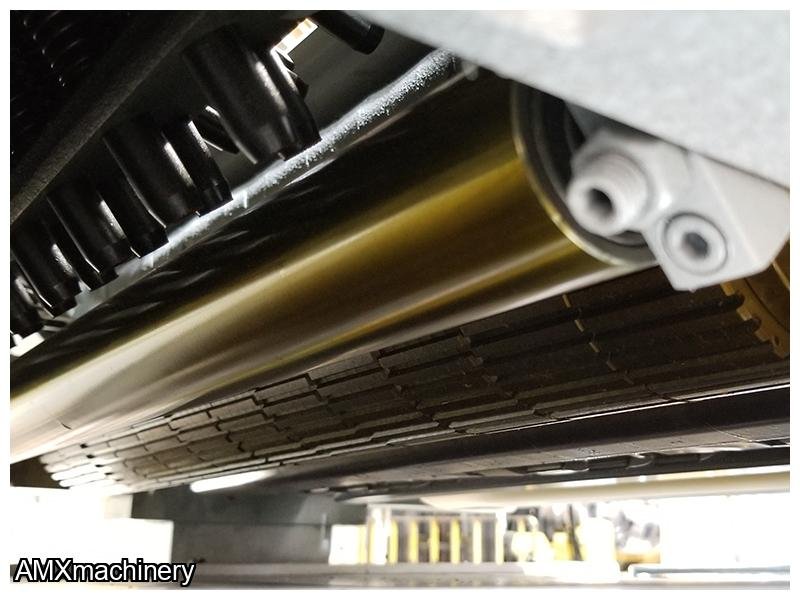

- Section chipbreaker and sectional feed roller before top cutterhead
- Rubber outfeed top roller to prevent chip marking
- Over thickness safety shut-off bar across infeed.
- Ammeter for each motor on control panel to monitor motor load
|
Maximum working width |
16″ |
405mm |
|
Maximum working thickness |
6.7″ |
170mm |
|
Minimum workpiece length |
10″ |
250mm |
|
Minimum working thickness |
0.315″ |
8mm |
|
Bottom jointing head motor |
10 HP |
|
|
Top planing head motor |
15 HP |
|
|
Feed motor |
2 HP |
|
|
Table elevation motor |
½ HP |
|
|
Cutterhead diameter |
4″ |
101mm |
|
Knife information |
30mmx12mmx1.5mm |
60 knives / head |
|
Cutterhead speed |
5000 RPM |
|
|
Feed speed (variable) |
23~65 FPM |
8~24 m/min |
|
Dust collection |
2 @ 5″ diameter |
2 @ 125mm |
|
Table size |
19″ x 86″ |
482x2185mm |
|
Machine dimensions (LxWxH) |
86.6″ x 35.43″ x 66.93″ |
2200x900x1700mm |
|
Net weight |
4180 Lbs. |
1900 kgs |
|
Packaging dimensions |
90.5″ x 37.4″ x 72.83″ |
2350x1060x1940mm |
|
Gross weight |
4620 Lbs. |
2100 kgs |
|
Electrical Information |
460/3/60 = 33 amps | 230/3/60 = 66 amps |
|
