Identificador: 2639
Abierta

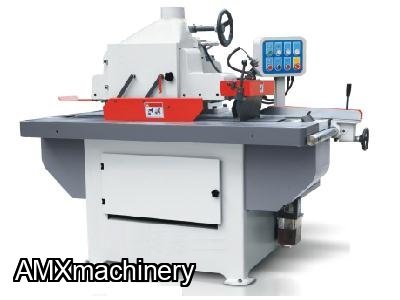

PARTE: 2CA-TRS-1112 - SIERRA RAJADOR - 1 HOJA – UNION PEGADO – MOTOR 15 HP – SIERRA 12”
AMXmachinery
Descripción
PARTE: 2CA-TRS-1112 - SIERRA RAJADOR - 1 HOJA – UNION PEGADO – MOTOR 15 HP – SIERRA 12”
Nueva con garantía
- Their precision machining and attention to operator safety and the production needs make these machines some of the most cost effective machines available in the world today.
- Hard chrome-plated table for maximum wear resistance.
- Precision fence ensures absolute accuracy between blade & fence, equipped with measuring ruler gauge.
- Double anti-kickback fingers mounted at the infeed end provides maximum safety protection.
- Heavy-duty industrial motor for powerful cutting capacity.
- Ruggedly constructed sheet metal frames for durability usage.
- The variable feed speed enables the machine to meet different requirement of work.
- V-way track and chain block surface are heat-treated for long wear resistance.

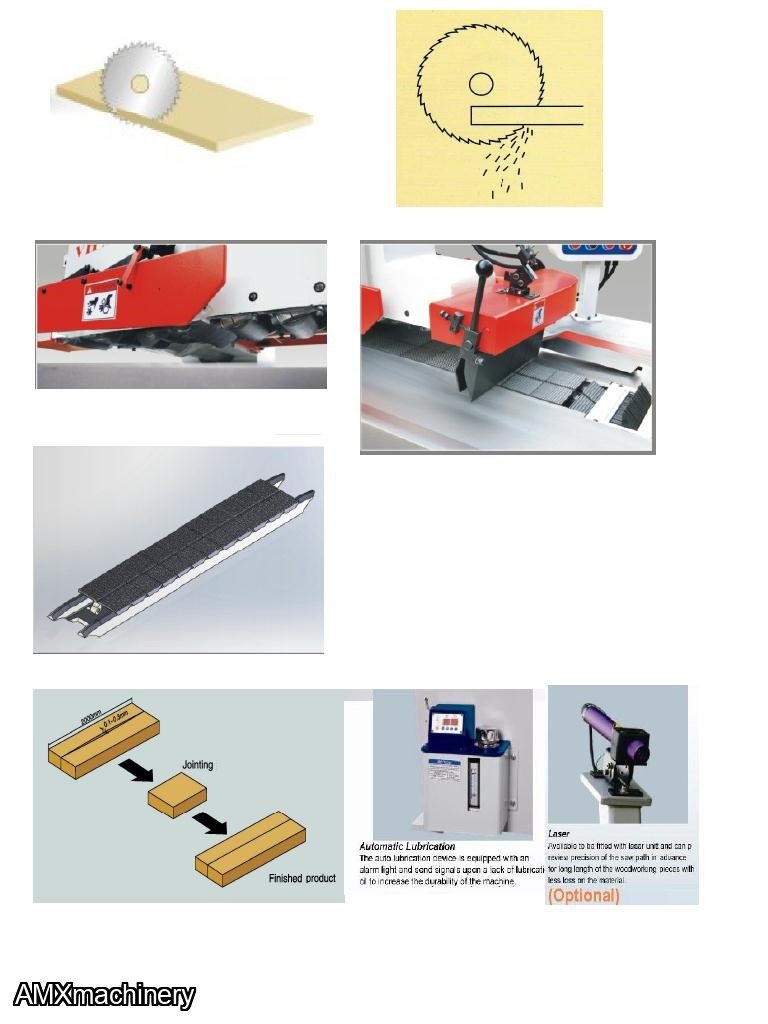

- Automatic lubrication to V-Way track facilitates chain running smoothly.
- Precision built saw head ensures accuracy for straight line rip saw operations.
- The saw arbor is manufactured from NI-Cr-MO alloy steel for durability and anti-fatigue, heat treated, precision ground and balanced providing precise cutting performance.
- Four bearing spindle mount ensuring rigidity & long life.
- Four pressure rollers for precise cutting of large and small workpieces.
- Heavy-duty cast iron table.
| SPECIFICATIONS | 2CA-TRS-1112 | 2CA-TRS-0016 | 2CA-TRS-0018 |
| Maximum Cutting Depth | 3-3/8" | 5" | 4-3/4" |
| Arbor Diameter | 1" | 1" | 2" |
| Max. Amount of Blades Per Spindle | 1 | 1 | 1 |
| Saw Blade Size | 12" | 10" ~ 16" | 14" ~ 18" |
| Table Dimensions | 28" x 61" | 40" x 70" | 58" x 78" |
| Spindle Speed | 3300 RPM | 3600 RPM | 3600 RPM |
| Feeding Speed (RPM) | 30 ~ 72 | 30 ~ 85 | 30 ~ 85 |
| Throat Depth (1st Blade) | 14" | 20" | 26" |
| Main Motor | 15 HP | 15 HP | 20 HP |
| Feed Motor | 1 HP | 1 HP | 3 HP |
| Feed Chain Width | 6" | 6" | 8-3/4" |
| Automatic Lubrication | YES | YES | YES |
| Minimum Workpiece Length | 12" | 12" | 8" |
| Exhaust Hood Diameter | 4" | 4" | 4" |
| N.W. | 1960 LBS | 2600 LBS | 3800LBS |
| G.W. | 2130 LBS | 2900 LBS | 4600 LBS |
