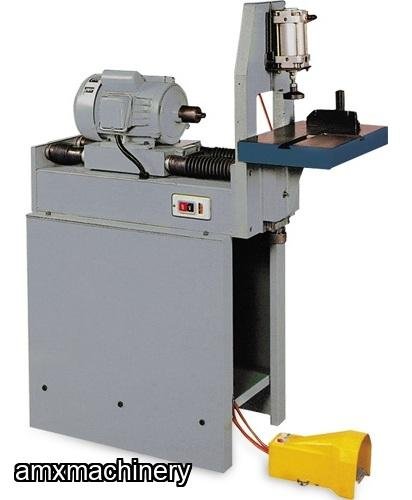

PARTE: 2CA-BR-25NUR/BR-25MILL - TALADRO HORIZONTAL CON O SIN CABEZAL MULTIPLE
AMXmachinery
Descripción
PARTE: 2CA-BR-25NUR/BR-25MILL - TALADRO HORIZONTAL CON O SIN CABEZAL MULTIPLE
| Specifications | 2CA-BR-25KNUR / MILL |
|---|---|
| Motor Standard | 2 HP |
| Spindle Speed | 2900 RPM |
| Knuring / Milling Cutter heads | Optional by Customer request / Design |
| Stroke Distance | 0~3" (0~80 mm) |
| Table Size | 11.4" x 11.2" (290 x 285 mm) |
| Machine Size with Stand | 42" x 19" x 42" (1067 x 483 x 1067 mm) |
| Machine Size W/O Stand | 40" x 15" x 28" (1016 x 381 x 711 mm) |
| Packing Size | 44" x 21" x 44" (1118 x 521 x 1118 mm) |
| N. W. | 331 LBS (150 kg) |
| G. W. | 375 LBS (170 kg) |
- The BR-2SKNUR machine is Designed for knurling operations on the turned end to achieve secure jointing effect.
- The machine is a high production, automatic unit and is pneumatically operated with air clamp by a foot switch for convenient operation.
- The machine is supplied with one knurling cutter head as standard.
- Further sizes of knurling cutting head are supplied as optional.
- The BR-25MILL machine is designed for producing a round or taper section at the end of rod turning.
- The unit is pneumatically operated with air clamp and controlled by a foot switch for convenient operation.
- The machine is supplied with one set of cutter head as standard, cutter head diameter as per customer’s specification.
