PARTE: 12599 - UNIDORA SABANAS CHAPA - FISHER+RUCKLE FZX-28 DELTA
USADA – BUENAS CONDICONES

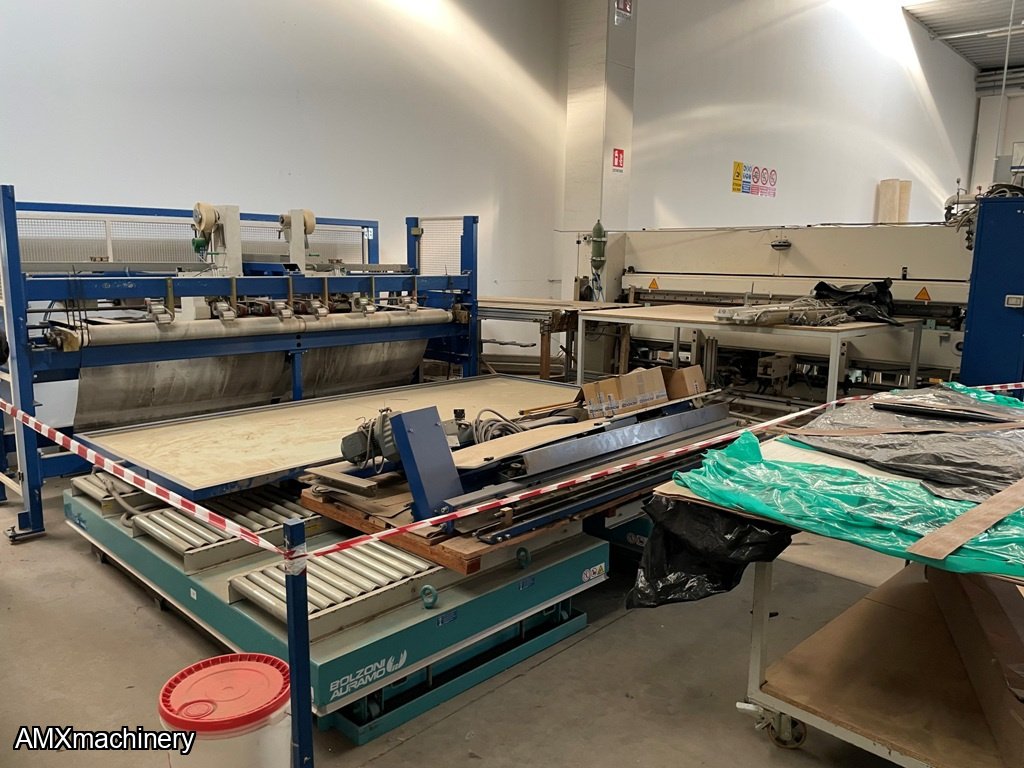

FISHER+RUCKLE FZX-28 Delta
Veneer crossfeed splicing machine with pre-glued veneer sheets
Veneer strip length (in fiber direction) 750 - 2800 mm
Veneer strip width (cross to fiber direction) 70 - 600 mm
Veneer strip thickness (depending on veneer) 0.3 - 1.5 mm
EC standards
Year 2001
400V/50Hz
Complete of:
- INTERMEDIATE CONVEYOR
The intermediate conveyor serves at the same time as buffer to avoid dead times during the deposit procedure.
Veneer widths (cross to fiber direction) 300 - 2000 mm-
- VENEER FACES TRIMMING AND REINFORCEMENT UNIT
- STACKING STATION
The veneers are discharged and deposited smoothly, without any mechanical load.
Veneer widths (cross to fiber direction) 300 - 2000 mm
Delivery EXW
Transport Not included
Includes loading on truck
