Identificador: 2057
Abierta
Descripción
PARTE: 12431 - PRENSA DE TABLEROS - 12 SECCIONES - DOUCET
USADO – BUENAS CONDICIONES
DOUCET

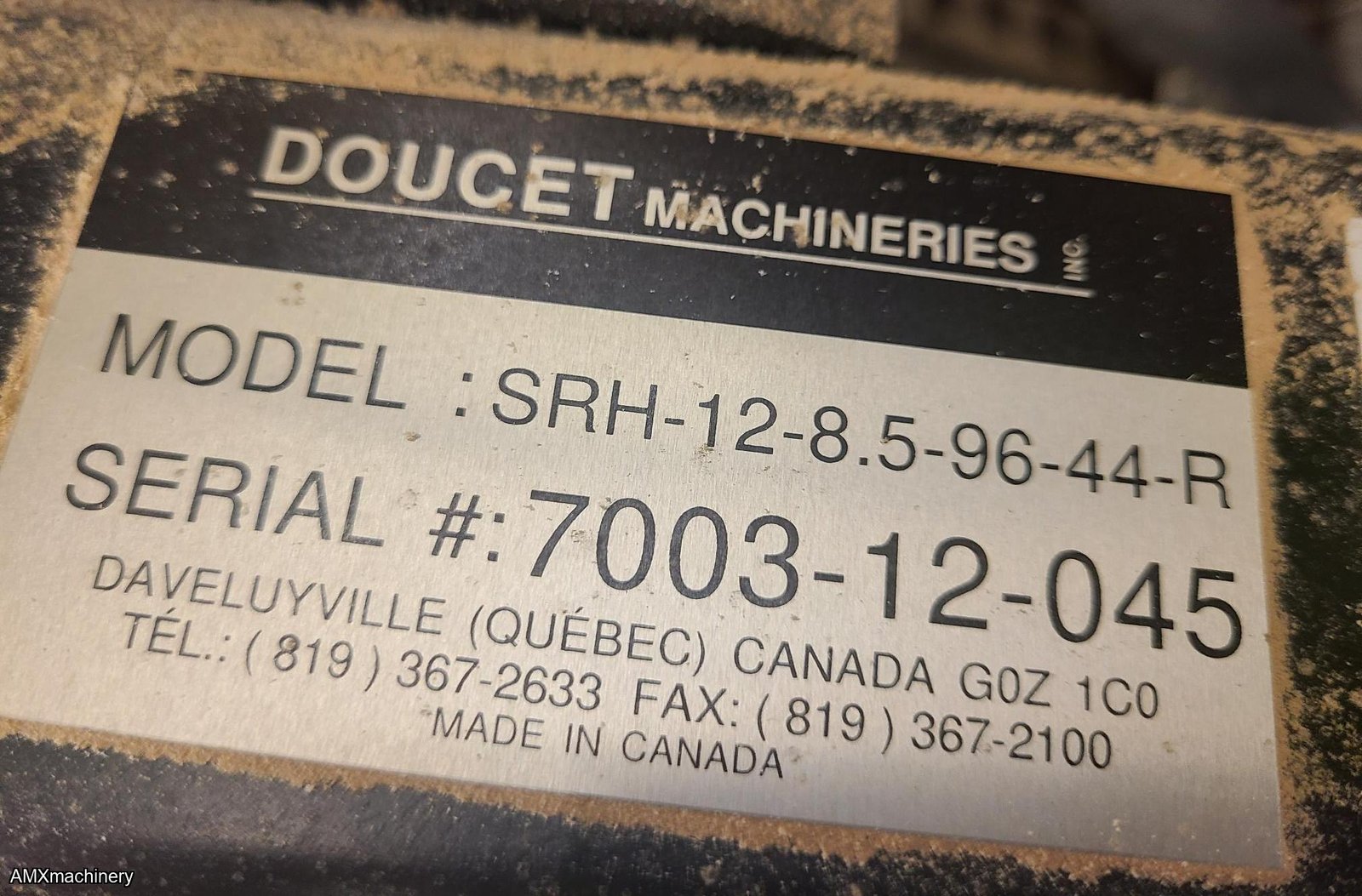

Model SRH-12-8.5-96-44-R, 12 section
Including: . 8½ ft. wide x 12 sections . 96 Clamps, 2½" x 44" opening (rapid change, N model)
Hydraulic power unit, complete for rotation & tightening .
Hydraulic tightening tool with joystick control and built-in torque control valve.
One Hydraulic rotation motor and speed reducer with joystick forward/reverse control.
Pneumatically actuated front gate and section support.
Air operated panel flattener with rockers type control valve applying a pressure of 800 lb @ 80 psi.
600 / 3 / 60, 15 amps maximum
Compressed air requirement: 15 cfm @ 90 psi.
Complete with a Doucet RC1-P glue roller very well maintained and clean
Mfg. 2003
