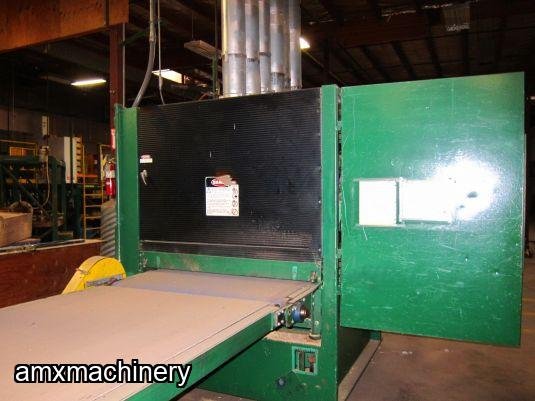

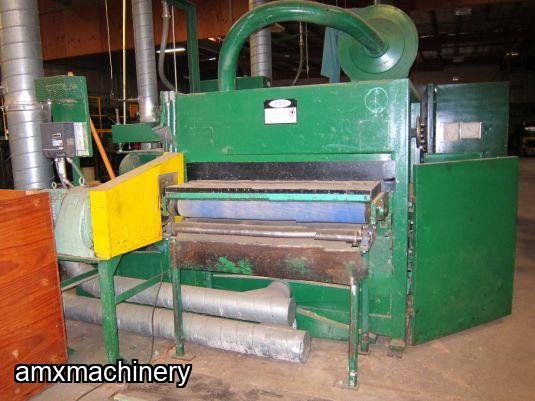

PARTE: 12131 – LIJADORA BANDA ANCHA – SUPERIOR E INFERIOR – 52” ANCHO - TIMESAVERS
AMXmachinery
Description
PARTE: 12131 – LIJADORA BANDA ANCHA – SUPERIOR E INFERIOR – 52” ANCHO - TIMESAVERS
USADA – EN BUENAS CONDICIONES
3 lijas superiores y 3 lijas inferiores
Constant passline (38” height).
This unit is ideal for sanding heavy panels

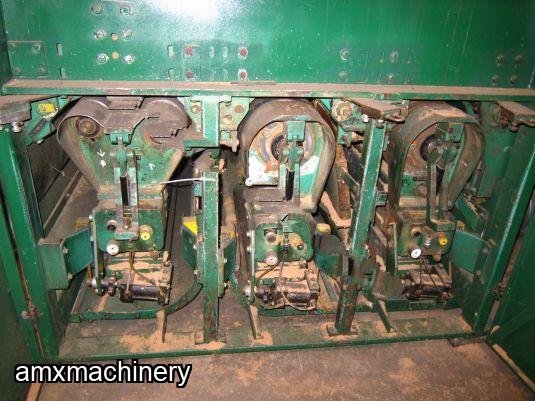

Bottom Head first:
1st Head 60 HP 80/70 durometer Contact Drum,
2nd head 50 HP 80/70 durometer contact drum,
3rd head 40 HP Platen

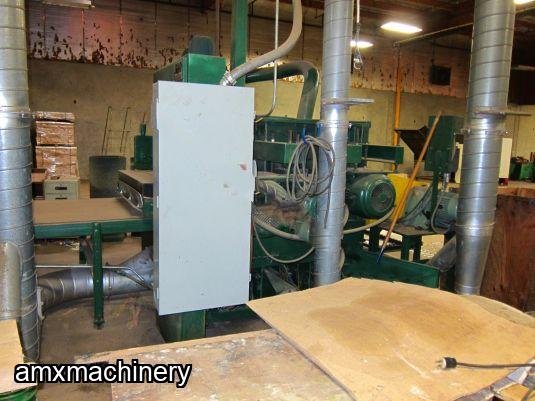

96” long Conveyor between machines driven by the top head machine

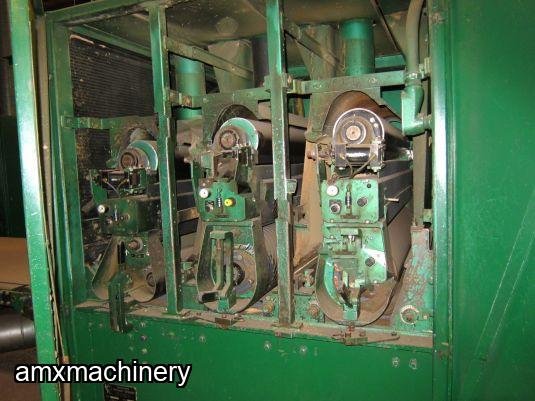

Top Head
1st Head 60 HP 80/70 durometer Contact Drum,
2nd head 50 HP 80/70 durometer contact drum,
3rd head 40 HP Platen
7-1/2 HP feed belt drives

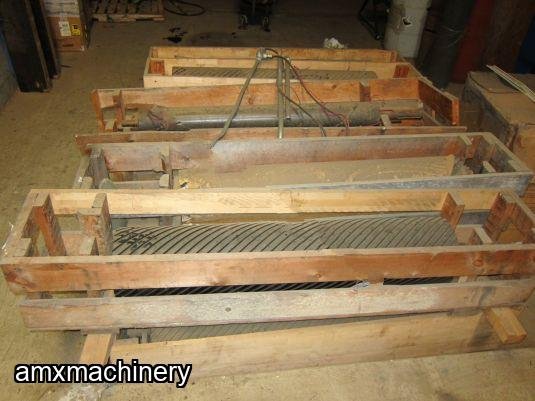

Motors are TEFC 230/460 volt motors, piping to main line, spare contact rolls, sand paper, and hydraulic power unit.
Appears in excellent condition. Machine was running when it was removed from service and has been in dry storage.
Payments & Returns
- Payment Methods
- Transferencia/Deposito Bancario
Post Message
Sign in to ask the seller a question.
AMXmachinery
BRIQUETEADORA - ENTRADA 55” X 55” X 37” - REDONDO 50 MM
PARTE: 2WE-TH514 - BRIQUETEADORA - ENTRADA 55” X 55” X
37” - REDONDO 50 MM
NUEVA CON GARANTIA
Capacidad: 80-120 lbs/hr
-
Hopper Dimensions: 55.1 x 55.1" x 37" (1,400 x 1,400 x 950 mm)
-
Hopper Configuration: 4 Sides straight
-
Hopper Volume: 2.4 yds³ (1.85 m³)
-
Hydraulic Motor: 12 hp (9 kW)
-
Hydraulic Oil Volume: 42.3 gal (160 liters)
-
Briquette Diameter: 2" (50 mm)
-
Weight: App 2,645 lbs (1,200 kg)
*
Image may not depict actual equipment ...
AMXmachinery
PARTE: 4VF-CSA - CIZALLA - GULLOTINA - SIERRA CINTAS - ANCHOS 150, 200, 310 MM
PARTE: 4VF-CSA - CIZALLA -
GULLOTINA - SIERRA CINTAS - ANCHOS 150, 200, 310 MM
Nueva con garantía
150 MM
200 MM
310 MM
AMXmachinery
SIERRA CINTA CENTAURO 23"
PARTE # 1RU-CE-SP-600-3 - SIERRA CINTA CENTAURO 600 MMDiametro de las volantes 600 mm Peso neto aproximado 240 Kgs Altura maxima de la guia 330 mm Ancho maximo de corte 580 mm Largo de la banda de sierra 4580 mm Ancho maximo de la banda de sierra 30 mm. Dimensiones de la mesa 580 x 810 mm Altura de la mesa desde el piso 910 mm Fuerza del motor 3 H.P., 3 fasesAltura total de la maquina 2060 mm
AMXmachinery
SIERRA INGLETEADORA 10"
PARTE # SIL-DC-SI10-F - SIERRA INGLETEADORA DE 10"NUEVA CON GARANTIAMOTOR: 2 HP, 110V, 60 Hz, 1 FASESDIAMETRO DEL DISCO: 10"DIAMETRO FLECHA: 5/8"VELOCIDAD DEL DISCO: 4500 RPMRANGO DE GIRO DE LA MESA: 45 GRADOS DERECHA E IZQUIERDAPESO: 19 KGS
