Descripción

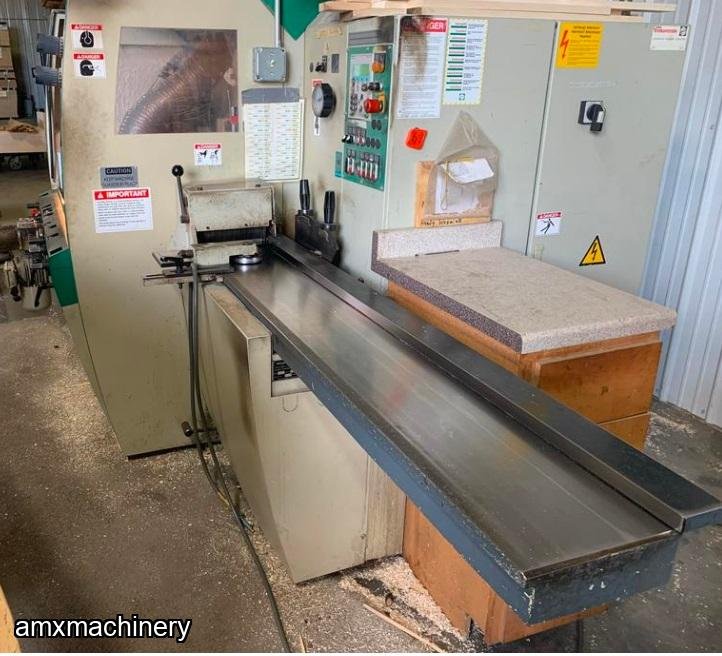

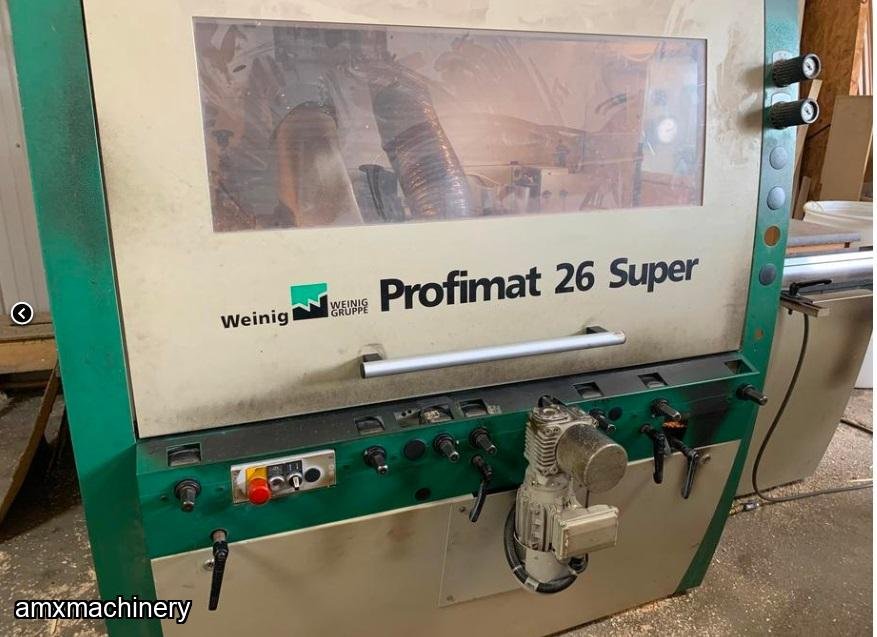

PARTE: 12106 – MOLDURADORA – 5 CABEZALES – WEINIG PROFIMAT 26
Usada – Muy buenas condiciones
Weinig Moulder and Grinder package
Working capacity: 9-1/16” x 4-3/4”
Spindles Configuration: B-R-L-T-T-B
Motors: Bottom 10 HP, Right / Left 10 HP, Top 15 HP, Top 20 HP and Bottom 10 hp.
Spindles: Dia. 1 1/2" with rotation at 6,000 RPM. Digiset readouts for left and top spindles. Readouts on chipbreaker and hold down. Weinig ATS -E for left and top radial positioning.
Feed: Variable speed 4 HP with feed speeds from 18-85 FPM.

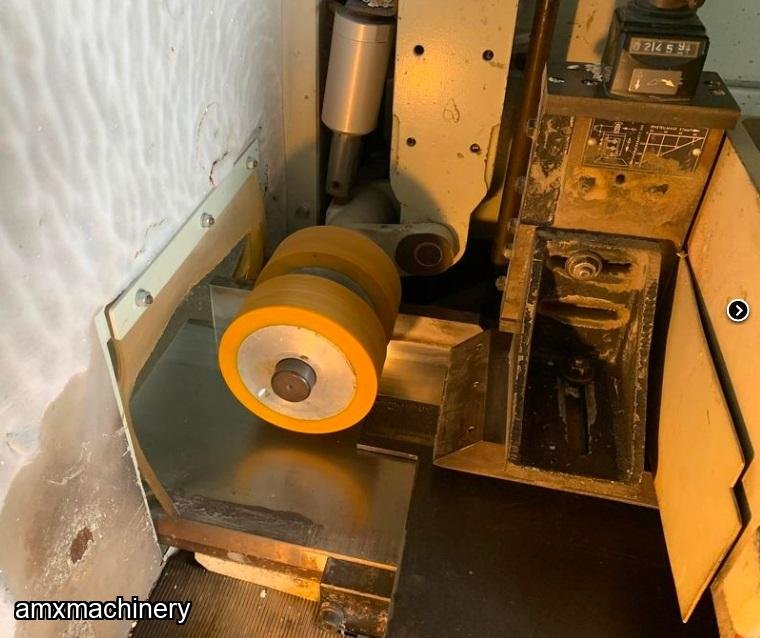

Infeed/Tables: 2 M (6’6’) infeed with side pressure roller. Chromed tables Manual table lubrication pump.
Note: Manuals, 5 heads, measuring stand.
Pago y Devoluciones
- Forma de pago
- Visa/Mastercard/American Express
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
PARTE: 12189 - DESCORTEZADORA – PRECISION
PARTE:
12189 - DESCORTEZADORA – PRECISION
USADA – BUENAS CONDICIONES
440V, 3 FASES
AMXmachinery
SIERRA DE MESA 10"
PARTE # SIL-DC-MBS250-1 - SIERRA DE MESA 10" - MOTOR 5 HP - 220V, 1 FASEPARTE # SIL-DC-MBS250-3 - SIERRA DE MESA 10" - MOTOR 5 HP - 220V, 3 FASENUEVA CON GARANTIA MOTOR: 5 HP, 220V, 60 Hz, 1 y 3 FASESDIAMETRO DEL DISCO 10"CAPACIDAD MAXIMA DE CORTE A 90 GRADOS: 3"CAPACIDAD MAXIMA DE CORTE A 45 GRADOS: 2"DIAMETRO FLECHA 5/8"VELOCIDAD DEL DISCO: 4200 RPMMEDIDAS DE LA MESA: 36" X 27"ALTURA MESA: 33-1/2"MAXIMO CORTE A LA DERECHA DEL DISCO: 25"PESO: 225 KGSTIPO DE EMPAQUE: 2 CAJAS
AMXmachinery
SIERRA MULTIPLE – 12” ANCHO – SCM M3
PARTE:
12272 – SIERRA MULTIPLE – 12” ANCHO – SCM M3
USADA – BUENAS CONDICIONES
Arbor Space: 12"
Maximum Material Thickness: 3-1/2"
Throat Capacity: 6"
Main Motor: 60 HP, 3PH
Feed Motor 2.5HP
Variable Speed Feed from 30 - 150 FPM
Blade Bore: 70mm
Saw Blade Diameter: 8" - 14"
Top and Bottom Anti-Kickback Assemblies
Pneumatic Pressure Rolls
Infeed Rip Fence
AMXmachinery
SYSTEMA PARA CLAVADO BASTIDORES - PIES 3X6
PARTE # 2RT-R450V - SYSTEMA PARA CLAVADO DE BASTIDORES - PIES 3X63′ X 6′ Vertical Assembly Easel(4) Universal Clamping Cylinders & ManifoldFoot TreadleManifold with 1/4″ NPT Regulator/GageSquaring Bar and FenceDesigned and Manufactured In the USAAdditional options for this machine include:U300E04 – Additional Clamp Cylinder
