Identificador: 223
Abierta
Descripción

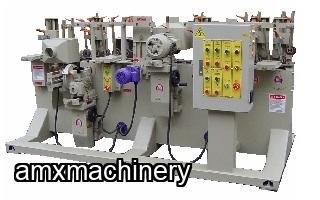

PARTE # 2TA-SD-904MU – LIJADORA DE MOLDURAS – 4 CABEZALES
Nueva con garantía
Variable feeding 20" to 80" to get different setup easily.
Every sanding head can use profile disc, brush wheel or sand belt with sponge drum for fine, detail finish.
Max. sanding thickness 4".
Min. sanding length 13".
Sanding spindle 1-1/4" dia. 2 HP.
Max sanding wheel 12" dia.
SPECIFICATIONS |
|
Wheel, Belt Head |
|
Brush Wheel Drive Motor | 2 HP |
Brush Tilts | 90° ~ 180° |
Sanding Belt | 3" x 20" |
Sanding Wheel Dia. Max | 8" |
Sanding Spindle Dia. | 1" |
Spindle Speed | 0 ~ 3600 RPM |
Profile Platen Belt Head |
|
Range of Workpiece Width | 2" ~ 70" |
Minimum Length of Workpiece | 4" |
Range of Workpiece Thickness | 1/6" ~ 4" |
Designed for high production moulding sanding of straight stick of solid wood, veneered panel and finish between coats with profile, angular, or straight edge.
Workpiece is through feed with power spring load pressure rolls at top, without sliding for irregular surface.

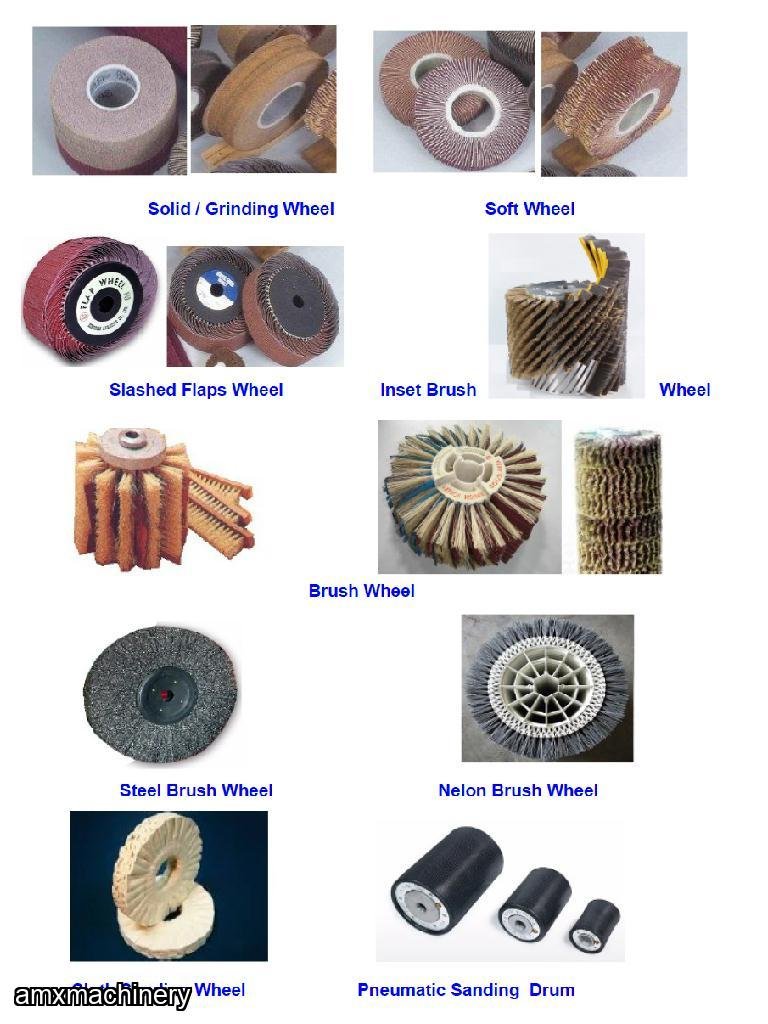

The brush, flap wheel, pneumatic drum or profile sanding head to cover all the profile sanding.
Top sanding head can be adjusted in & out, up & down.
Side sanding head can be adjusted tilt, forward & backward and up & down.
Pago y Devoluciones
- Forma de pago
- N/A
Publicar mensaje
Ingresar to ask the seller a question.
AMXmachinery
CANTEADORA 6" - MOTOR 1.5 HP
PARTE:
SIL-DC-WJ6P - CANTEADORA 6" - MOTOR 1.5 HP
Motor: 1.5 H.P., 110/220V., 60Hz, 1 ó 2 Fases
Altura De La Mesa: 32”
Tipo De Empaque: 1 caja
Peso De La Máquina: 93 Kg.
Máx. Profundidad De Corte: 6” x 1/8”, 3” x 1/4”
Capacidad Máx. De Traslape: ½”
Inclinación De La Guía: 45°, 90° y 135°
Cantidad De Cuchillas: 3 pzas.
Ancho Máximo De Desbaste: 6"
Dimensiones De La Mesa De Entrada: 22” x 7-1/2”
AMXmachinery
TORNO DESENROLLADOR - ANCHO 54”
PARTE: 11720 - TORNO DESENROLLADOR - ANCHO 54”
1 - TORNO DE DESENROLLO DE 54 PULGADAS (4 PIES) SEMI-AUTOMATICO
MARCA IND. G.H. PARA DESENROLLAR TROCERIA DE 4 PIES DE LARGO Y DIAMETRO DE 25
PULG. MAXIMO GROSOR DE .08 HASTA 5.MM ACCIONADO CON CADENAS DE AVANCE Y MOTORES
DE 5,10,15 HP CON CAPACIDAD DE 30 TONELADAS DE DESENROLLO DIARIAS.
AMXmachinery
SIERRA DE BANCO PORTATIL CON LLANTAS - 2 HP
PARTE: 2MK-SC.650 - SIERRA DE BANCO PORTATIL CON LLANTAS – 1500W (2 HP), 110VNueva con garantíaMotor: 110 VMax. Cutting Depth: 90°: 80 mm (3,1″) – 45°: 55 mm (2,2″)Max. Saw Blade Diameter: 254 mm (10″)Table Dimensions: 825 (32,4″) x 500 (19,7″) mmTilting: 45°Extender Table: YesLaser Guide: YesDust Bag: YesPower: 1.500WSpeed: 5.000 RPMWeight : 34 kg (75 pounds)The Portable Table Saw SC.650.I MAKSIWA was designed to work with 254 mm blades (10”) and can cut wood and acrylic (sh...
AMXmachinery
PARTE: 12306 - AFILADORA DE CUCHILLAS PARA MOLDURADORA - RONDAMAT 960
PARTE: 12306 - AFILADORA
DE CUCHILLAS PARA MOLDURADORA - RONDAMAT 960USADA – MUY BUENAS CONDICIONES9-3/8″ max. arbor lengthTool dia. 11-3/4″ max. to 4″ minGrinding wheel speed inverter controlledGrinding wheel speeds from 1,500 to 3,000 RPM 1.5 HP motorhydro-clamping of grinding wheel to arborSetting gauges for axial constantAxial clearance angle 0-20 degreeOn board diamond wheel dressing8-7/8″ max. 6″ min. grinding wheel dia
13-gal. coolant t...
