PARTE: 2CK-C371

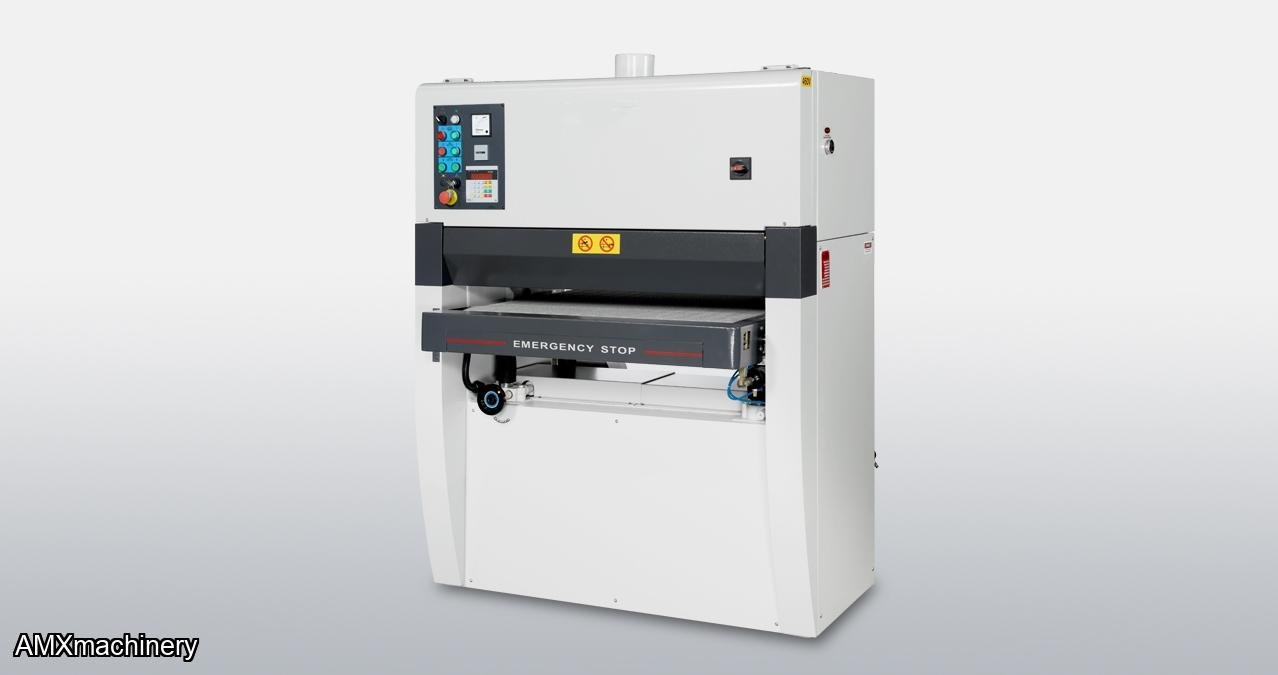

Is compact and versatile with a combination sanding unit for calibration and final sanding. The robust sanding unit and heavy-duty frame ensures optimum sanding results. Motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.

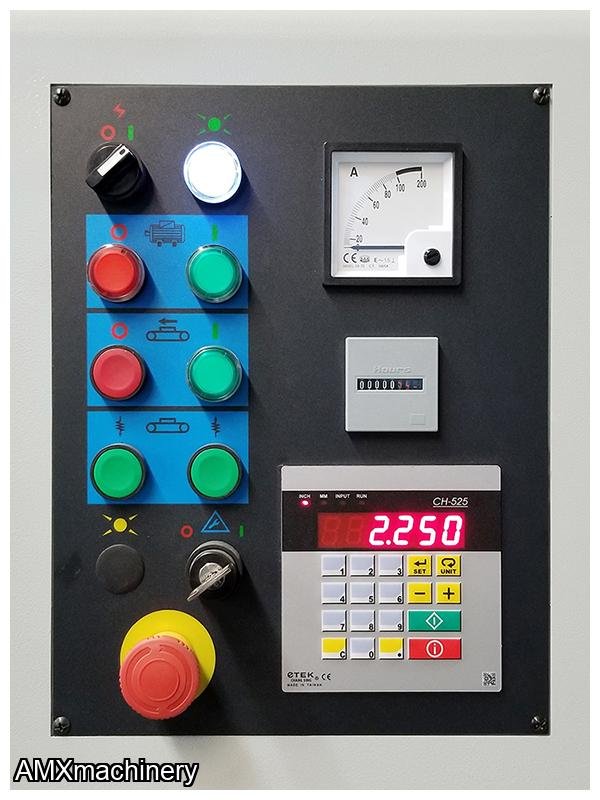

- Accurate digital thickness control with both Inch & Metric settings allows operator to key in the desired thickness and table will automatically move into position.
- Small footprint
- Combination sanding unit with 5” rubber contact drum and 2” wide adjustable sanding platen for a wide range of sanding applications.
KEY ADVANTAGES

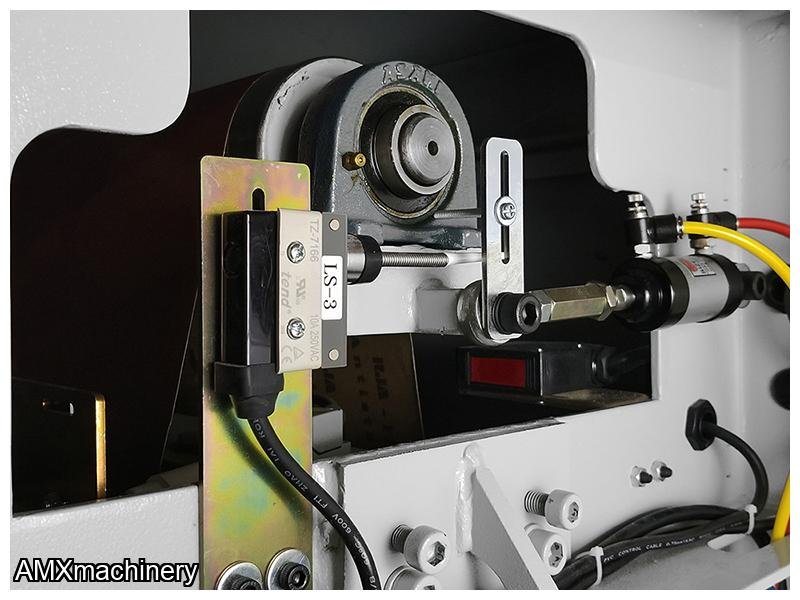

- Electronic belt tracking for optimum belt life and sanding results
- Ammeter for load monitoring to ensure the proper amount of material is being removed according to the selected grit.
- Disc brake on main motor allows for faster belt changes
- Pneumatic belt tensioning with quick release outboard support to facilitate fast belt changes.
- Double infeed and outfeed pressure rolls for superior part hold down
- Four table raising jack screws
- Material over-height limit switch
- Hour meter records the actual running time of the machine which can be used to provide timely maintenance for the machine

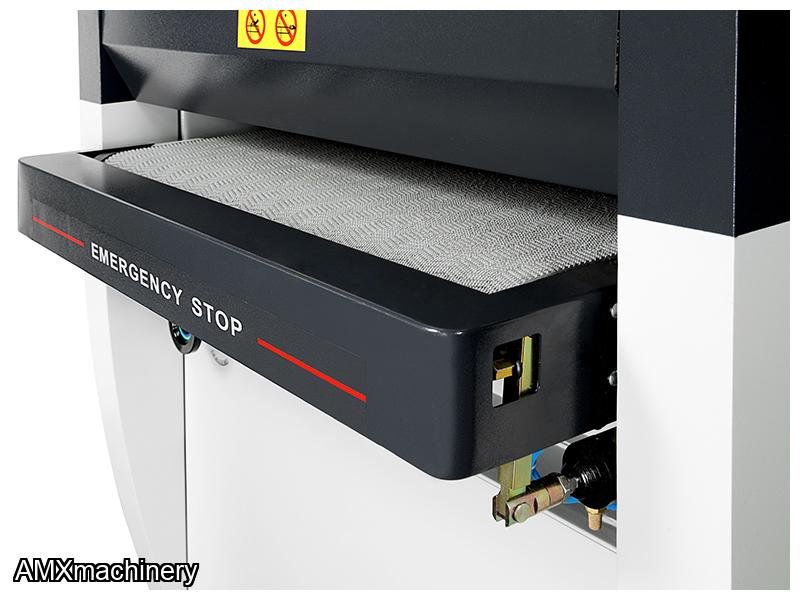

- Interlocks located on all access doors.
|
|
|
Metric |
|
Abrasive belt size |
37” x 60” |
939 x 1524 mm |
|

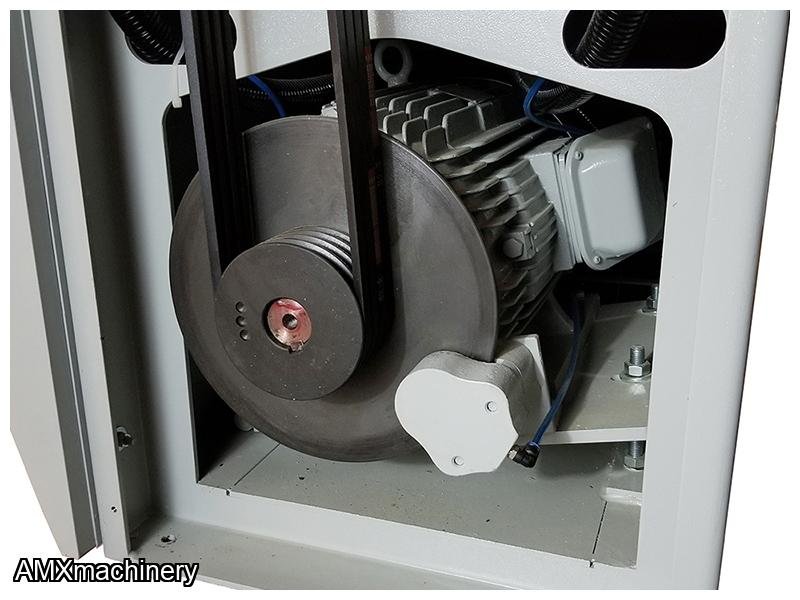

Main motor |
20 HP |
|
|
Feed motor |
2HP |
|
|
Table rise/fall motor |
½ HP |
|
|
Maximum width stock |
36” |
910 mm |
|
Minimum part length |
13” |
330 mm |
|
Minimum thickness opening |
5” |
127 mm |
|
Feed speed: variable |
13 to 52 FPM |
4 to 16 m/min |
|
Passline height |
33”- 38” |
838 – 965 mm |
|
Infeed table |
11 ½” |
292 mm |
|
Dust outlet |
1 @ 5” |
1 @ 127 mm |
|
Compressed air usage |
2 CFM @ 90 PSI |
2 CFM @ 90 PSI |
|
New weight |
1980 lbs |
900 kgs |
|
Machine dimensions |
64” x 53” x 73” |
1625 x 1346 x 1854 mm |
