Descripción

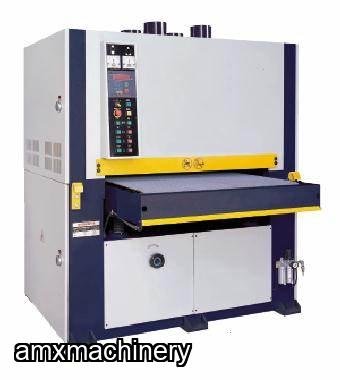

PARTE # 2TA-WS-DA4375 - LIJADORA - CALIBRADORA 43" ANCHO
Cabezales: 2 cabezas
Capacidad: 43" ancho x 75" largo
- With the two head wide belt sander, you can accurate heavy sanding your stock with the first drum head and with the second combinational head you can give the unlimited fine finish.
- Rugged heavy-duty sheet metal construction designed for durability usage.
- Full power industrial motors drive sanding and auto infeed smoothly.
- Infeed and outfeed are spring loaded hold down rollers to ensure positive feeding without sanding mark.
- Combination platen & drum sanding head for best sanding choice such as
- 1. With the platen up, the sander functions as a drum only machine, for sanding with a 40 ~ 100 grit belt.
- 2. With the platen and drum same level, intermediate and final finishing is possible, using a grit of 120 ~ 180.
- 3. With the platen down (below drum), used for the fine finishing or lacquer sealer sanding, with 180 ~ 600 grit.
- Sanding platen with a quick release and lock down designed for easy removal or loading of graphite platen.
- Computerized thickness adjustments control with accurate digital read out, just key in the size you are desired and automatic table movement for sanding thickness within 0.005? accuracy.
- Large size diameter contact drum is dynamically balanced rubber covered spiral grooves, design to provide considerable advantages for the effective removal of material.
- Special rubber feed belt for safe non-slipping, transporting the work pieces.
- The abrasive belts are tracked by oscillating cylinders linked to the upper roller. The edge of the belt is detected by electric eye sensor, which in turn control the air supply to the position via solenoid value. Also one limit switch it?s located on each and end top roller of the sander paper for quick stop in case of the event of belt breakage.
- Main table designed with the convenient leveling adjustment which assures greater stability with excellent tolerance they provide variable from 0? ~ 5? range sanding thickness.
- 4 Heavy-duty jackscrews powered conveyor table elevation.
Opcionales:
- Cilindro Acerado
- Patin Neumatico
OTROS MODELOS Y CARACTERISTICAS:
| SPECIFICATION | ||||
| Max. Working Width | ||||
| Max. Working Thickness | ||||
| Min. Working Length | ||||
| Sanding Belt Dimensions (W x L) | ||||
| Dust Collection Hood (Dia x Holes) | 8" x 2 | |||
| Main Motor | ||||
| Feed Motor | ||||
| Table Raising / Lowering Motor | ||||
| Var. Feed Speed (FPM) | ||||
| Working Air Pressure | ||||
| Exhaust Volume Require | ||||
| N.W. | ||||
| G.W. |
