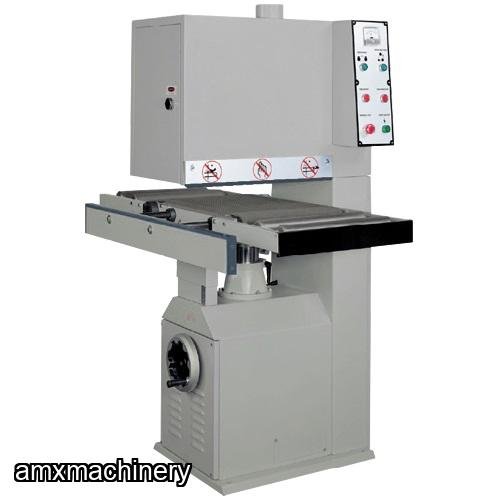

PARTE # 2TA-CA-1554 - LIJADORA - CALIBRADORA - 15" ANCHO
- Combination head configuration drum and platen produces a finer finishing result.
- Pneumatic controlled OSCILLATING BELT SYSTEM and easy adjustable pressure for sanding different wood materials such as veneer, hard wood and soft wood.
- Conveyor table roller extension, ideal for big panel sanding such as doors, window frames, etc.
- Specially designed for one side open body sanding up to 30 panels with two passer.
- The emergency stop device ensures instant shot shown of machine running.
- This unit is ideal for the fine finishing requirements of general cabinet parts.
- All rollers and pulley have balancing adjustments ensuring maximum stability.
- High quality conveyor belt gives an outstanding gripping performance.
- Spiral shaped and grooved contact roller is ideal for calibration sanding.
- Infeed and outfeed are spring-loaded to ensure positive roller feeding.
- An electric sensor for excellent operation controls the belt oscillation.
- Designed for efficient small panel sanding at jaw body.
- Heavy-duty construction with precision working parts.
- Air cylinder control tension belt.
- Opcional: Extension rail
SPECIFICATIONS | CA-1554 |
Sanding Width | 15" |
Sanding Belt Size | 15" x 54" |
Conveyer Size | 15" x 64" |
Min. Working Length | 12" |
Max. Working Thickness | 6" |
Feeding Speed | 20 FPM |
Sanding Motor | 7½ HP |
Feeding Motor | ½ HP |
Air Requirement | 6 CFM |
N.W. | 840 LBS |
G.W. | 960 LBS |
