Description

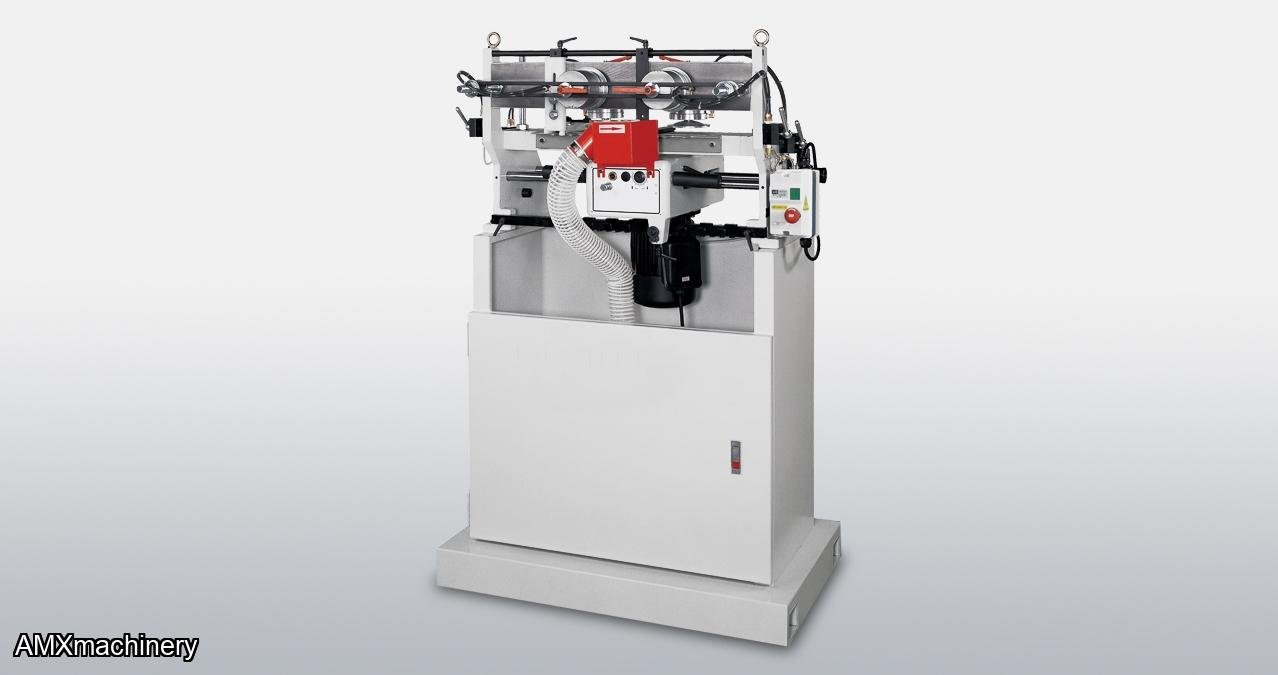

PARTE: 2CK-JDT65

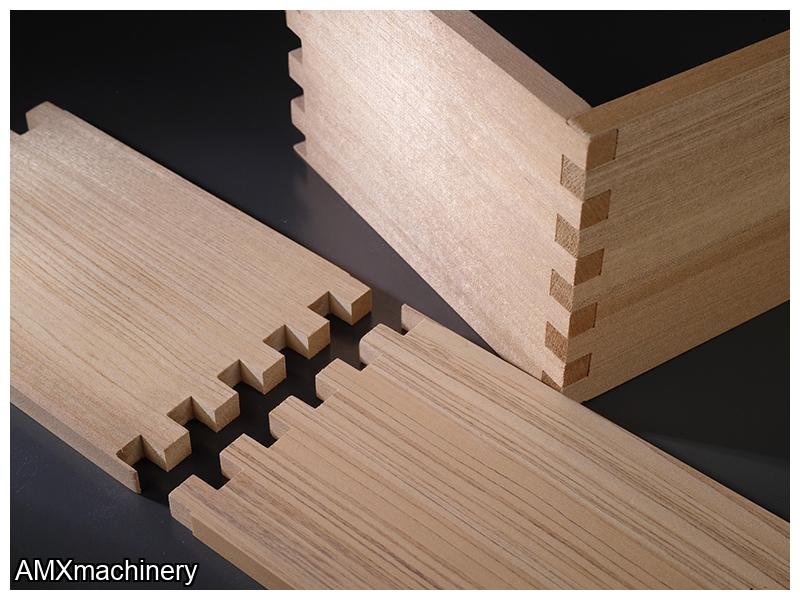

- Ideal for drawer production and furniture parts which require high quality dovetail joints.

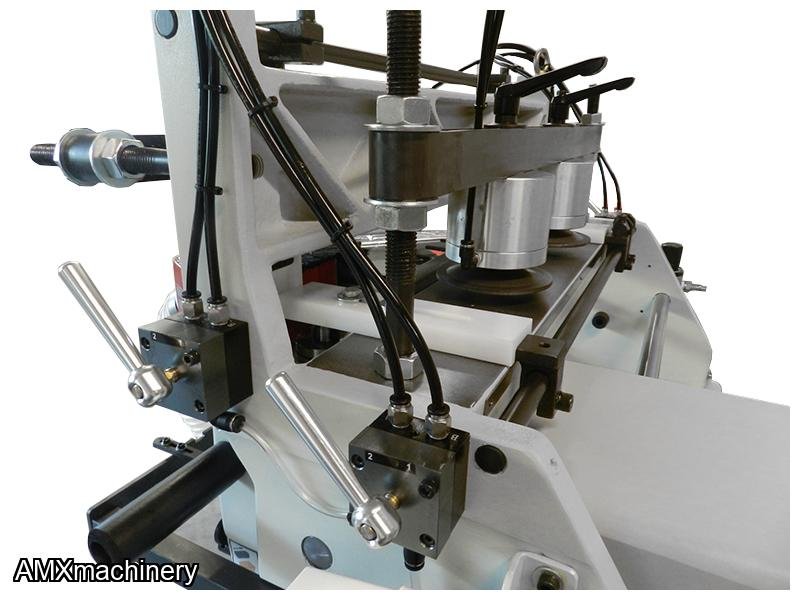

- Workpieces are pneumatically clamped to speed up material changeovers
- Equipped with one four-sided template providing four pitches between dovetails.
- Floating dovetailing unit has ball bearings which run on chrome steel guiderails for effortless operation

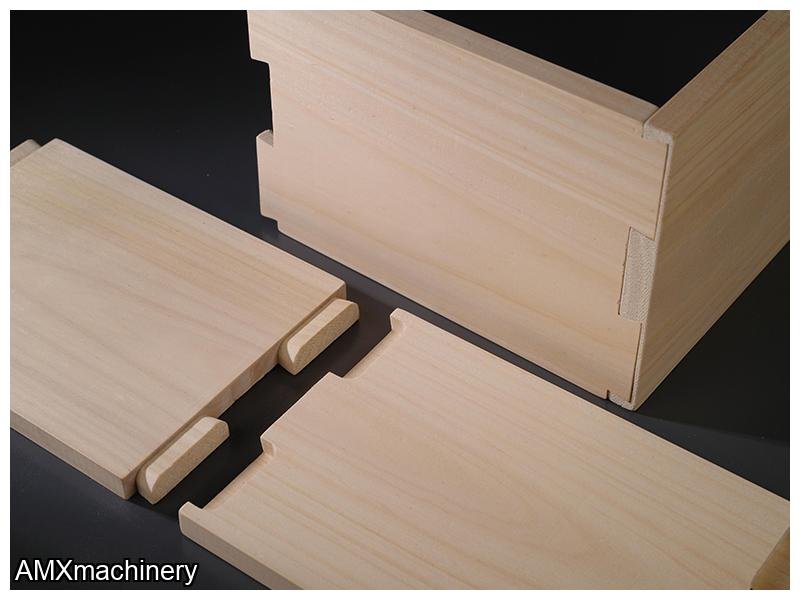

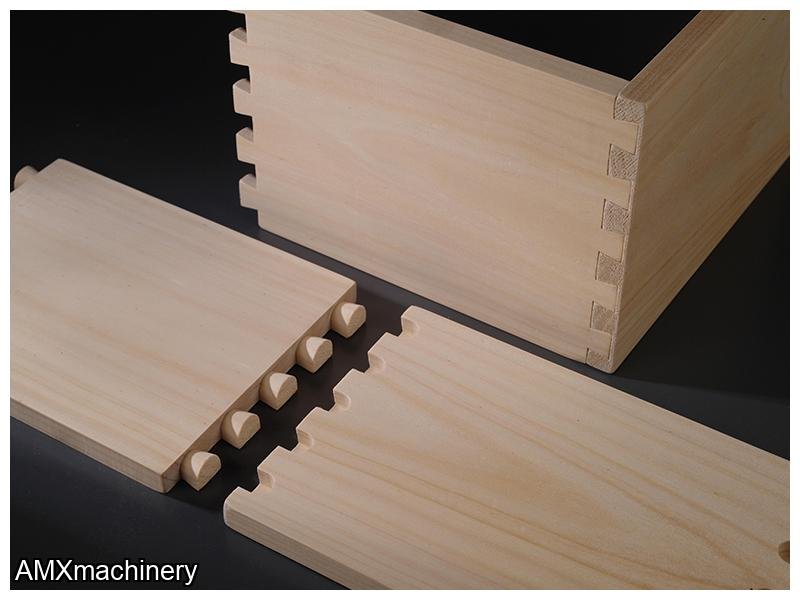

- Standard pitch 1″, 1 ½”, 2″ and 2 ½”

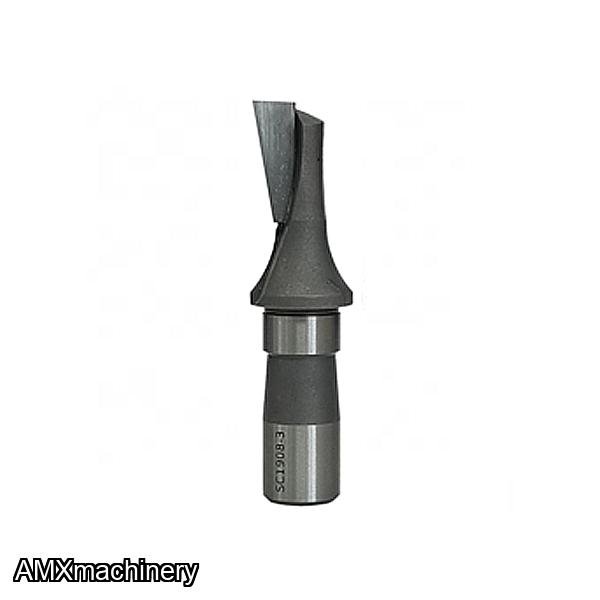

- Solid carbide single flute eccentric dovetail bit controls the fit of the joint

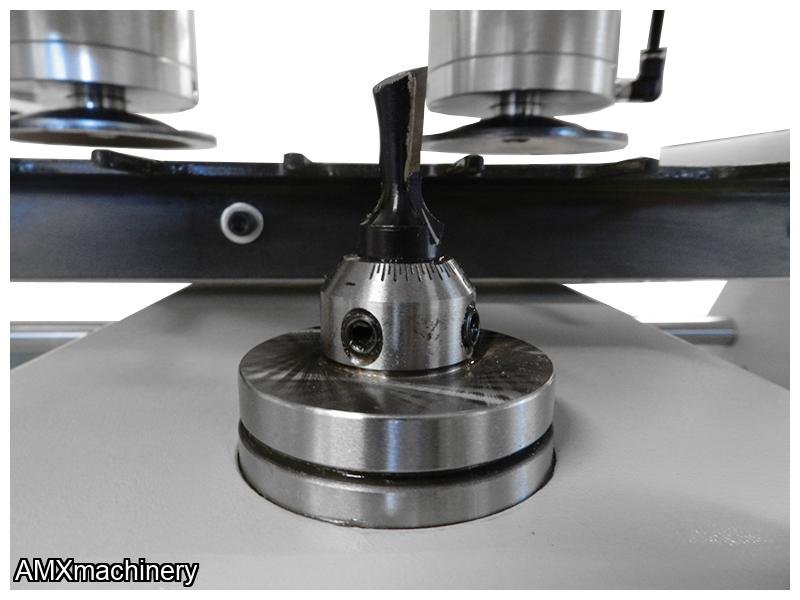

- 18500 RPM spindle for superior cut quality
FEATURES
- Max. workpiece size 59″ x 16 ½”
- Workpieces are clamped by air clamps
- Equipped with an indication bar for indicating cutting position

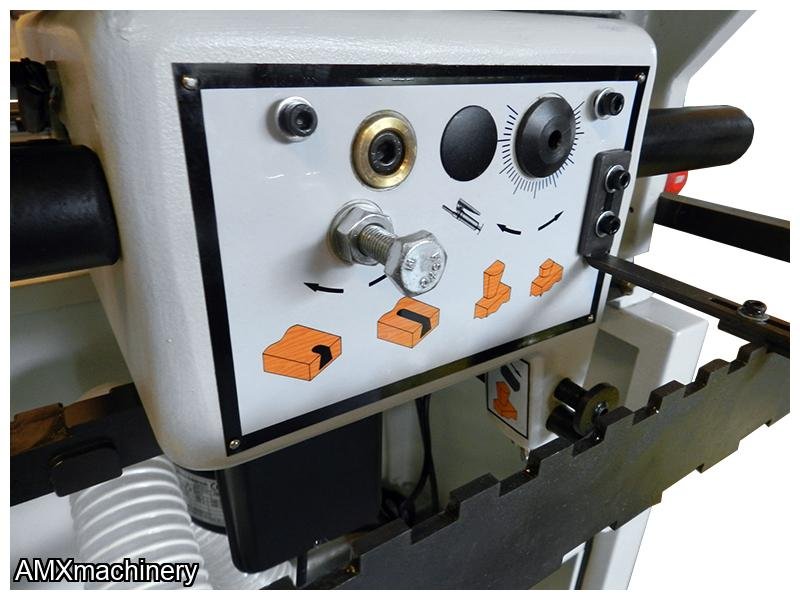

- Tenon and mortise depth are conveniently adjusted according to the thickness of workpiece
- The spindle accommodates 12 mm TCT eccentric cutter
- Enclosed base
- Magnetic switch with thermal overload protection
|
INCH
|
METRIC
|
|
|
Minimum workpiece size |
7.9″ x 2.4″ |
200 x 60mm |
|
Maximum workpiece size |
59″ x 16.5″ |
1500 x 420mm |
|
Minimum dovetail height |
3/16″ |
5mm |
|
Maximum dovetail height |
0.71″ |
18mm |
|
Minimum front thickness |
0.28″ |
7mm |
|
Maximum front thickness |
2.36″ |
60mm |
|
Minimum side thickness |
0.28″ |
7mm |
|
Maximum side thickness |
2.36″ |
60mm |
|
Number of spindles |
1 |
|
|
Spindle speed (RPM) |
18500 RPM |
|
|
Center spacing of dovetails |
1″, 1.5″, 2″, 2.5″ |
|
|
Table height from floor |
46.5″ |
1180mm |
|
Dust collection ports diameter |
front 2.5″, rear 4″ |
front 63.5mm, rear 100mm |
|
Air pressure requirement |
6 bar |
|
|
Motor |
1 HP |
|
|
Electrics |
230/1/60 = 8.0 FLA |
|
|
N.W. / G.W. |
440 lbs / 510 lbs. |
200 kgs / 223 kgs |
