Descripción

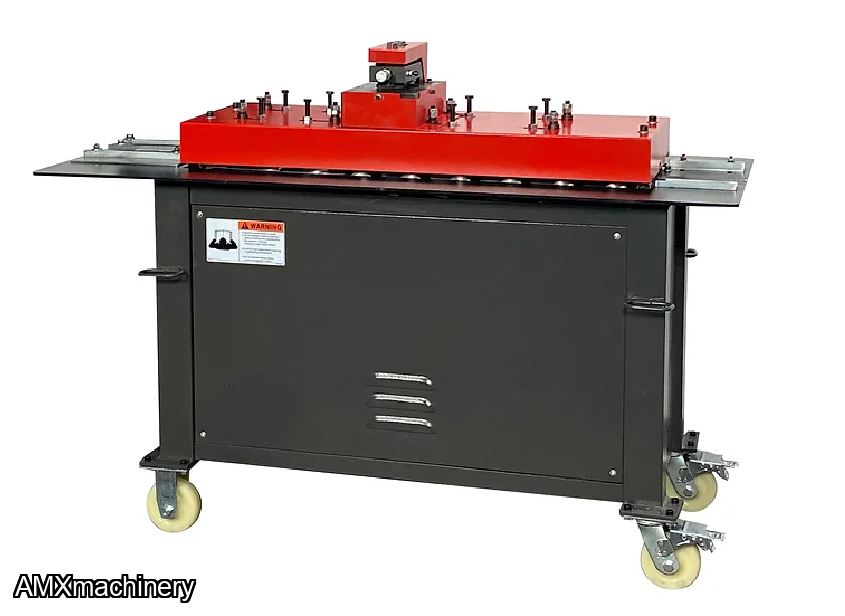

ENGANCHADORA DE METAL PITTSBURG PARTE: 2GM-PL-18E
- ISO 9001 certified
- 3HP Heavy Duty AC main motor, 220V, 3 phase
- Heavy welded all steel construction for maximum rigidity
- It’s a Triplex, standard rolls include S & Drive (Slip & Drive Cleat), Drive Cleat, Double Seam, Pittsburgh Lock, Power Flanger, 5 in 1, all rolls are installed.
- Heavy welded all steel construction for maximum rigidity
- ACME side can be operated at same time
- Standard Pittsburgh Attachment # PA-18E, installed
- Slip & Drive Roll (S & Drive)# SDR-18E , installed
- Drive Cleat Roll # DCR-18E, installed
- Double Seam Roll # DSR-18E, installed
- Power Flanger # PF-18E, installed
Capacity: Pittsburgh Lock |
26 Ga. - 18 Ga. |
| S Drive Lock | 26 Ga. - 20 Ga. |
| Right Angle Lock | 26 Ga. - 20 Ga. |
| Drive Cleat Lock | 26 Ga. - 18 Ga. |
| Double Seam Lock | 26 Ga. - 18 Ga. |
| Power Flange 1/4: | 26 Ga. - 20 Ga. |
| Depth of Pocket | 1/2" |
| Feeding Speed | 23 FPM |
| Main Motor | 3 HP, 3 Phase 10 AMP Prewired: 220VAC 220V, 1phase is optional |
| Weight Approx | 998 LBS |
Machine Dimensions (LxWxH): Shipping Dimensions: | 60"x26"x46" 63"x27"x48" |
