Descripción

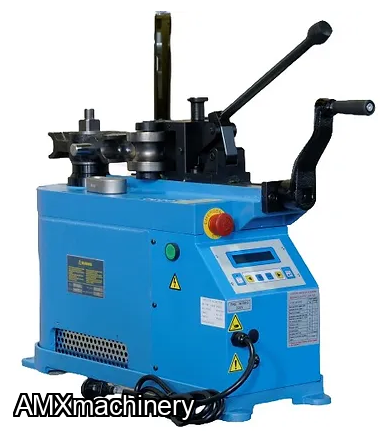

DOBLADORA HIDRAULICA ROTATORIA PARTE: 2GM-DB-60A
- Taiwan Machine
- ISO 9001 certified
- NC-control for bending angle adjustment
- LED degree indicator with automatic stop programming, to get as true reading of bending degree.
- Up to 50 jobs memory; each job program contains 9 steps

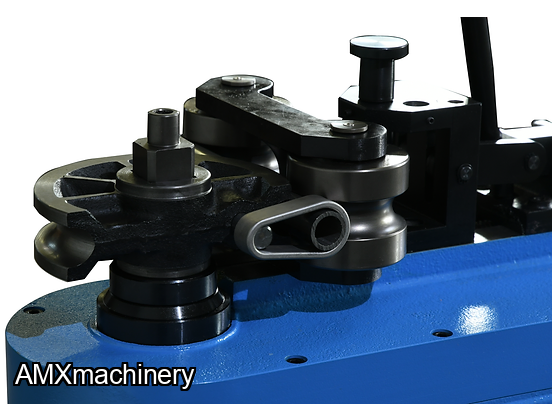

- Counter roller holder comes standard with quick adjustment
- This easy to use hydraulic tube draw bender has an incredible capacity of 2” tube with .12” wall thickness and 1-1/2” schedule# 40 pipe
- 1-1/2 HP motor, 220VAC, Single Phase
- Quick tooling changes
- With deluxe stand
Specifications | GMC DB-60A |
Capacity: Minimum CLR Minimum OD Solid Rod, mild steel Round Tube, mild steel (wall thickness) Round Pipe, mild steel, schedule 40 Round Tube, SS steel (wall thickness) Round Pipe, SS steel, schedule 40 Aluminum round Tube (wall thickness) | ½” ¼” 1” 2” (.125”) 1-1/2” 1-1/2”(.125”) 1-1/4” 2” (3/16”) |
Maximum centerline Radius | 6-1/2” CRL |
LED programming | 50 job memory |
Main motor | 1.5HP, 220V,1phase |
Weight | 327 LBS |
Machine dimensions, LxWxH | 27” x 9” x 51” |
