Descripción

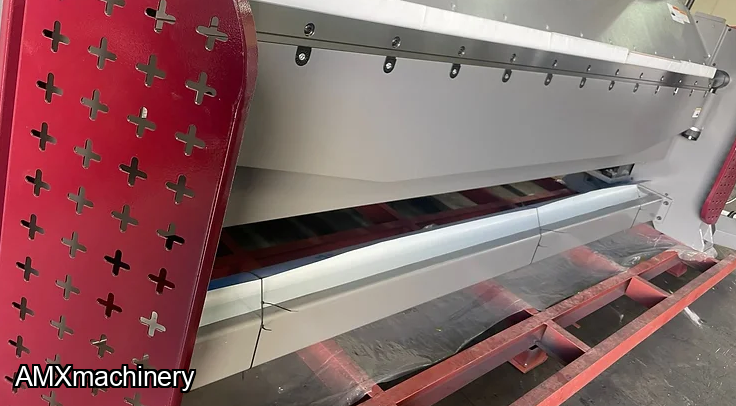

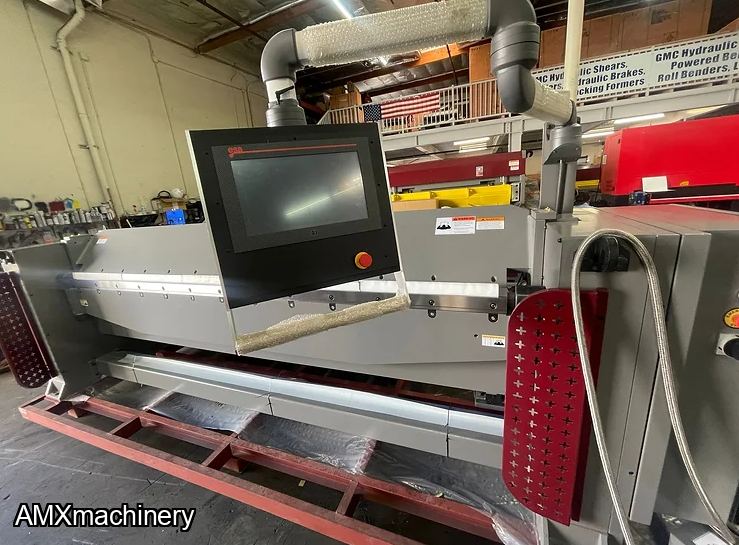

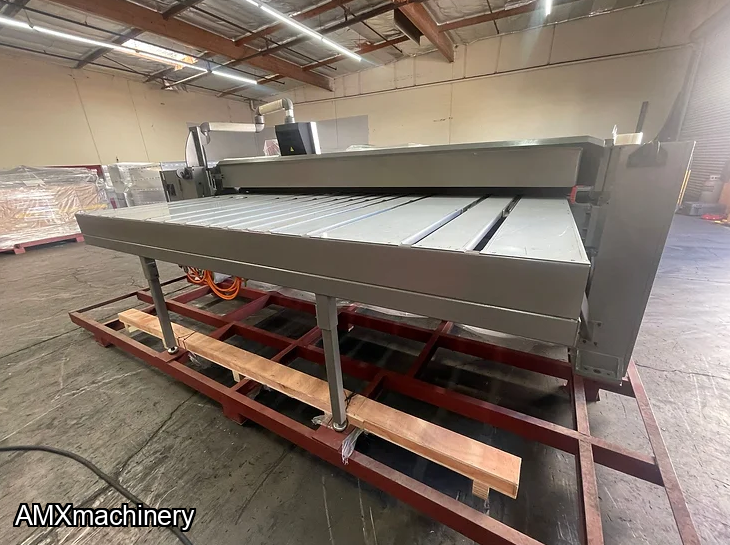

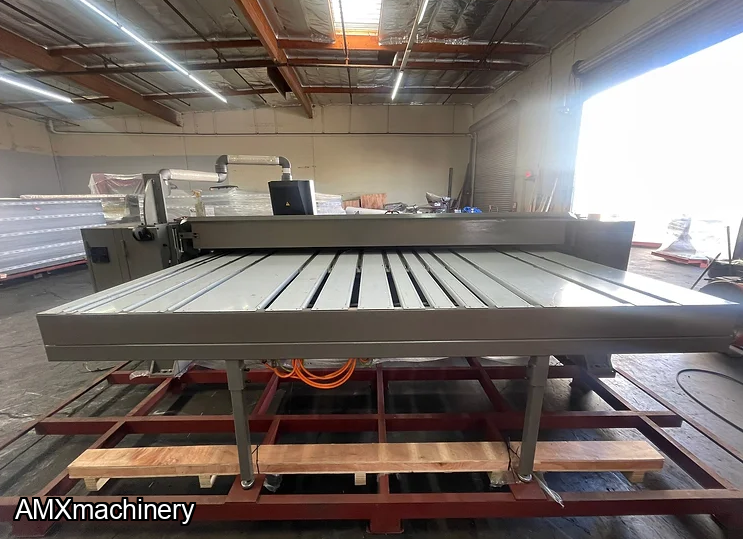

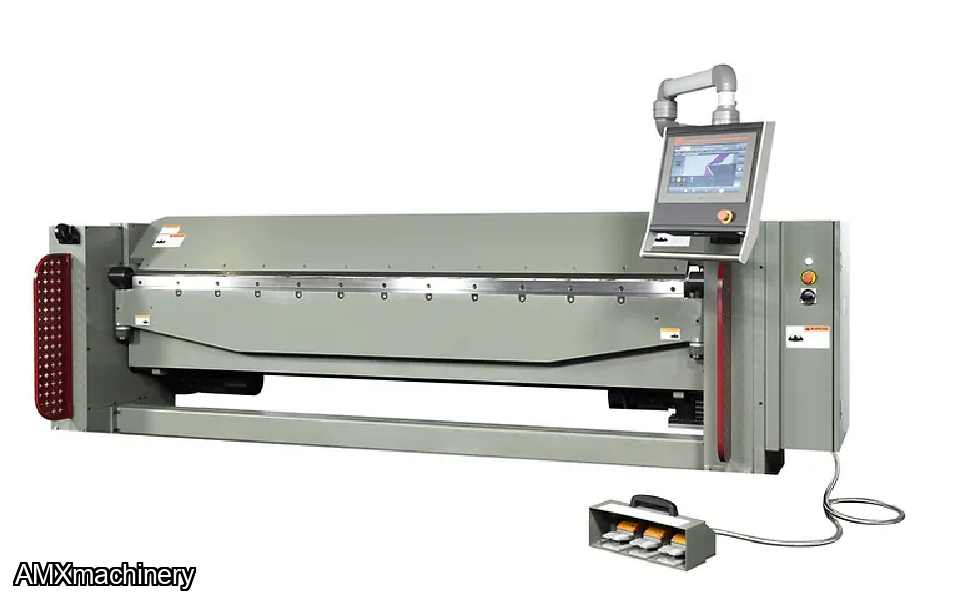

DOBLADORA DE METAL 10' X 14 GA PARTE: 2GM-EFM-1014CNC
CNC folding machine with an Italian ESA CNC control. 11" touch screen straight brake. 2000 jobs memory capacity.
- ISO 9001 certified
- Designed in US and Taiwan quality Machine
- Meet OSHA and CE safety standard
- ESA CNC control, made in Italy
- 16” large Digital glass touch screen
- Max. 99 bends per program
- Upto 2000 Programs Storage
- Profiles library with graphics
- Programmable Radius Bend
- Programmable Angle/ Angle Correct
- 48” CNC back gauge with table and fingers
- Hardened nose bar and table, up to 48HRC
- Comes with one 1” Insert Bar and one ½” Insert Bar
- Yaskawa Servo motors and Drives

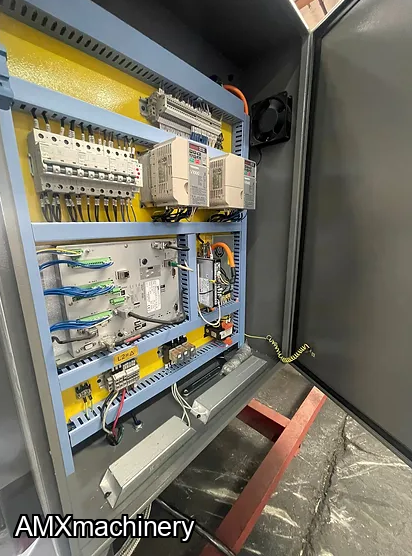

- Schneider electrical components
- All steel construction for maximum rigidity
- Safety type foot pedal with handle and E-stop switch
- Safety 24V low voltage & overload protection
- Power supply is 220V, 3 phase or 208V, 3 phase
- 1/2” thick insert bar for ½” min. reverse bend,capacity mild steel 28-20Ga - call for pricing
- One day on-site training - call for pricing
- Digital Phase Converter# PTE010 for 220V,1phase to 220V, 3 phase
Capacity Mild Steel/hot roll, tensile 60,000PSI Stainless Steel/cold roll, tensile 85,000PSI Soft Aluminum, tensile 28,000PSI Close hemming Open hemming |
14Ga. 18Ga. 10Ga. / 1/8”thick 26Ga. 24Ga |
| Bending Length Capacity | 10'1" |
| Bend Angle Degree, programmable | 0-135 degree |
| Hemming capacity, mild steel | 24 Ga. |
| Hemming capacity, stainless steel | 28 Ga. |
| Large Beam Opening/clamping opening | 4-7/8" |
| Min. Reverse Bend | 1/2" |
| Max, Table Back Gauge Distance | 48-3/8" |
| Min. Table Back Gauge Distance |
