Identificador: 91 Abierta
CORE BUILDER

CORE BUILDER

AMXmachinery

Contacte al Vendedor
Descripción

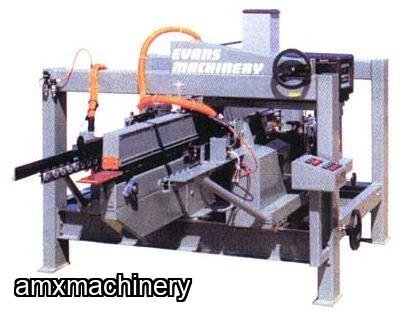

PARTE # 2EV-6600 - CORE BUILDER - EVANS 6600

Maquina para hacer el centro o la base de las cubiertas de cocina

The Evans machinery model 6600 core builder produces a quality core every time. Within one pass, this machine bonds the build up to both sides of the panel using hot melt adhesive applies T-Mold for no drip edges and shapes your core to the required profile. The model 6600 Core Builder operates at a feed rate of 20 FPM as it travels on a non-skid straight line feed system. The model 6600 Core Builder is a smart investment by helping you and your company save time and money.

MACHINE SPECIFICATIONS:

Machine Length

158"

Machine Width

89"

Machine Height

72"

Working Height

36"

Electrical

220v 60 Hz 3 Ph

Air Supply

100 PSI

Edge Shaper

5 HP 5850 RPM 1.25 Spindle Diameter

Hot Melt Unit

20 lbs Capacity 1500 Watt Heater

Feed Rate

20 FPM

Center Feed Drive

Non-Skid Pad

Board Width

16" Min. to 48" Max

Board Thickness

2" Maximum

Build Up Width

3/4" Min. to 1-1/2" Max.

Build Up Thickness

1-1/2" Maximum

T-Mold Slotter

1-1/2 HP 3600 RPM .875" Spindle diameter 8" Blade

Groover

1-1/2 HP 3600 RPM .875" Spindle diameter 8" Blade

Pago y Devoluciones
Forma de pago
Visa/Mastercard/American Express
Publicar mensaje
Ingresar to ask the seller a question.
PARTE: 12340 - COMPRESOR DE TORNILLO - 30 HP
AMXmachinery
PARTE: 12340 - COMPRESOR DE TORNILLO - 30 HP
PARTE: 12340 - COMPRESOR DE TORNILLO - 30 HP USADO - MUY BUENAS CONDICIONESCoAire CHSA-30 230/440V, 60 Cy, 3 Phase Main Motor: 30 HP Discharge Pressure: 150 PSI Air Delivery: 100 CFM Compressor Speed: 3050 RPM Ambient Temperature: 32 Deg. - 115 Def. F Driving Method: V-Belt (3VX4) Oil Sump Capacity: 5 Gallons Dimensions: 55-1/2" L x 40-3/8" W x 48-1/2" H Weight: 1232Filters have been replaced, its been flushed out and has new oil.The last hours recorde...
SIERRA TRONZADORA – 7.5 HP - DISCO 14" - IZQUIERDA
AMXmachinery
SIERRA TRONZADORA – 7.5 HP - DISCO 14" - IZQUIERDA
PARTE: 12347 - SIERRA TRONZADORA – 7.5 HP - DISCO 14" - IZQUIERDA USADA - BUENAS CONDICIONESMotor 7.5 HP, 220V, 3 phase4100 RPM arbor speedLeft Hand Model uses a 14” diameter saw blade with 1” boreCuts boards up to 1” x 10” or 2”x 9”, 3” x 8” at a rate of up to 95 strokes per minuteStandard full coverage safety guardTable size is 25” x 23-1/4” with a table height of 32-3/4”Requires 600 CFM air supply, and has a 4” diameter dust portMachine weighs 530 lbsOverall di...
TORNO COPIADOR - TORNOS PARA HERRAMIENTAS - CON LIJADOR
AMXmachinery
TORNO COPIADOR - TORNOS PARA HERRAMIENTAS - CON LIJADOR
PARTE: 5AP-OP-002 – TORNO COPIADOR - TORNOS PARA HERRAMIENTAS - CON LIJADOR NUEVO CON GARANTIATorno copiador de mangos de pico, pala, lampa, martelina, talachoTorno para copiar el palo de hacha, mangos de Pala, Pico, martillo, maso, combo, azadaBuena calidad, procesamiento rápido, segura y prácticaCopia hasta 4 palos al mismo tiempo, con un lijado automáticoSolo necesita un molde de aluminio, metal o maderaPara todo tipo de mangos de madera, dándole una forma ovalada, cónica. Simp...
PARTE: 2TA-CLC2012 - GRABADORA LASER CNC 35.5” x 23.6”
AMXmachinery
PARTE: 2TA-CLC2012 - GRABADORA LASER CNC 35.5” x 23.6”
PARTE: 2TA-CLC2012 - GRABADORA LASER CNC 35.5” x 23.6”NUEVA CON GARANTIA35.5" X 23.6" GRABADORA/CORTADORA LASER CNC- Applications for most material and many industries.  Some include but not limited to wood, acrylic, leather, marble, glass, paper, rubbery, plastic, cloth, ABS and many more.- Durable and steady are key features that ensure long life of motion and accuracy.- Unique optics structure of the fly ray, which has low warp with high, steady and easy optical adjustment.- Adaptation...
