Descripción
COLECTOR DE POLVOS PARTE: 2GM-WDC-2100

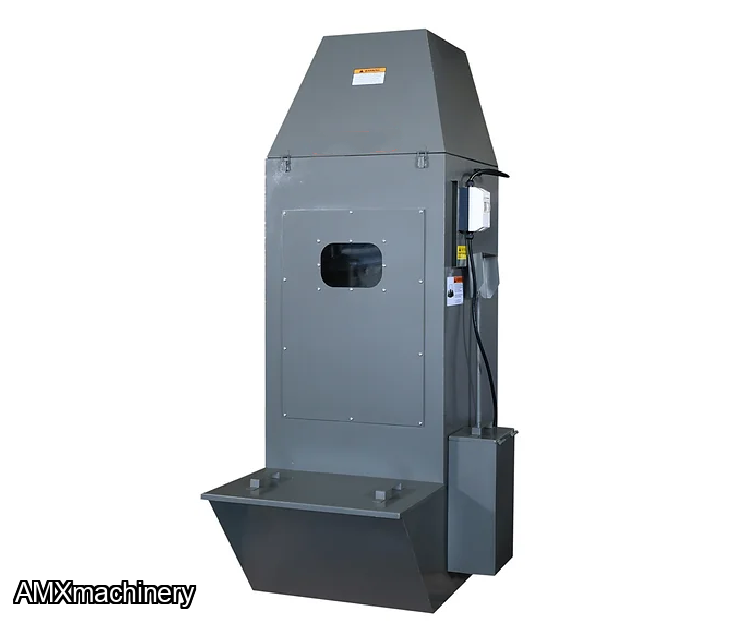

Our wet dust collector system offers safe and efficient method for collecting hazardous dust particles cause by grinding, sanding, or cutting metals. If you’re in the market for a stainless steel wet dust collector that helps eliminate hazardous matter from your machine shop that is created by either a grinding, sanding, or a cutting process, then look no further. Call us today to better understand your process/application and provide you with a quote.
Wet dust collection systems offer more safe and efficient method for collection of hazardous grinding/sanding/cutting dust generated by a variety of processes.
CABINET - made of welded stainless steel construction
FRONT DOOR - easily removed for maintenance & cleaning and equipped with an explosion relief flap.
MOTOR - T.E.F.C. 208-230/460 volt, 3-phase, 60 Hz (other voltages also available) Amp draw 20A/220VAC and 10A/440VAC

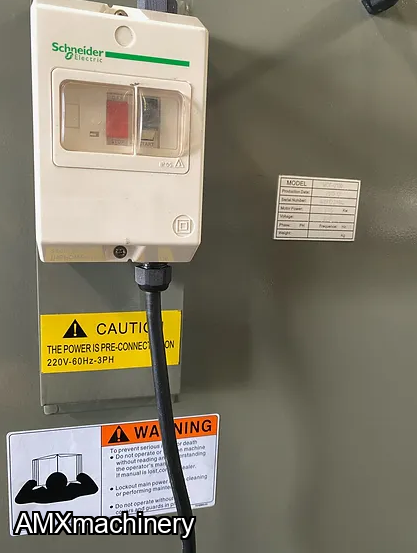

ELECTRICAL CONTROL - push button motor starter with thermal overloads
IMPELLER - standard, precision balanced, direct coupled to the motor for maximum CFM with minimum vibration (also stainless steel)

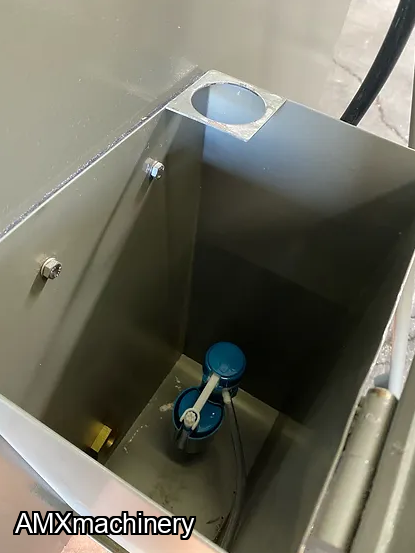

INTERNAL INDUCERS - a system of internal spray inducers remove dust particles from air flow and causes them to settle in water tank
SOUND SUPRESSOR - the unique motor cover design keeps noise level to a minimum.
CLEANING TOOL - made of stainless steel and provided for the easy removal of grinding dust from the water tank.
Model Inlet CFM Inlet Opening Motor HP
WDC-FP40 2100 8” 5
(WDC-2100)
