Identificador: 243
Abierta
Descripción

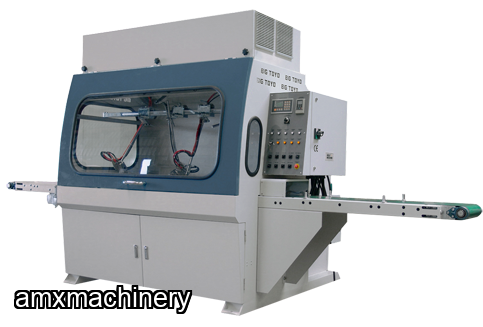

PART # 2TA-TS-12ATSP – CASETA DE PINTURA CONTINUA PARA MOLDURAS
Nueva con garantía

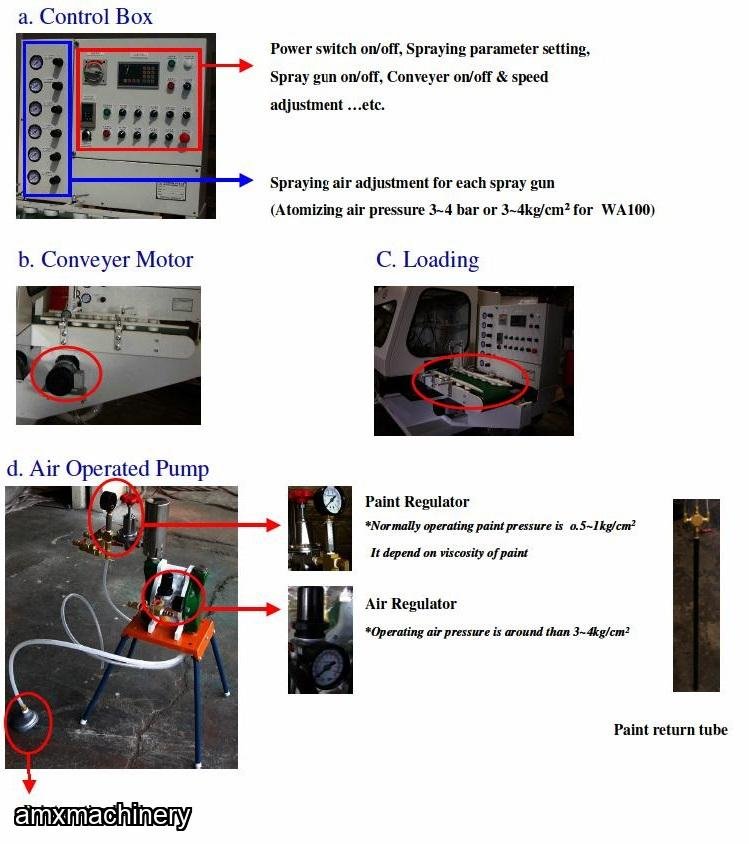

Features:
PLC control for easy operator and variability setup.
Fast spraying processing for profiles strips and two edges together or four edges at panels by one pass.

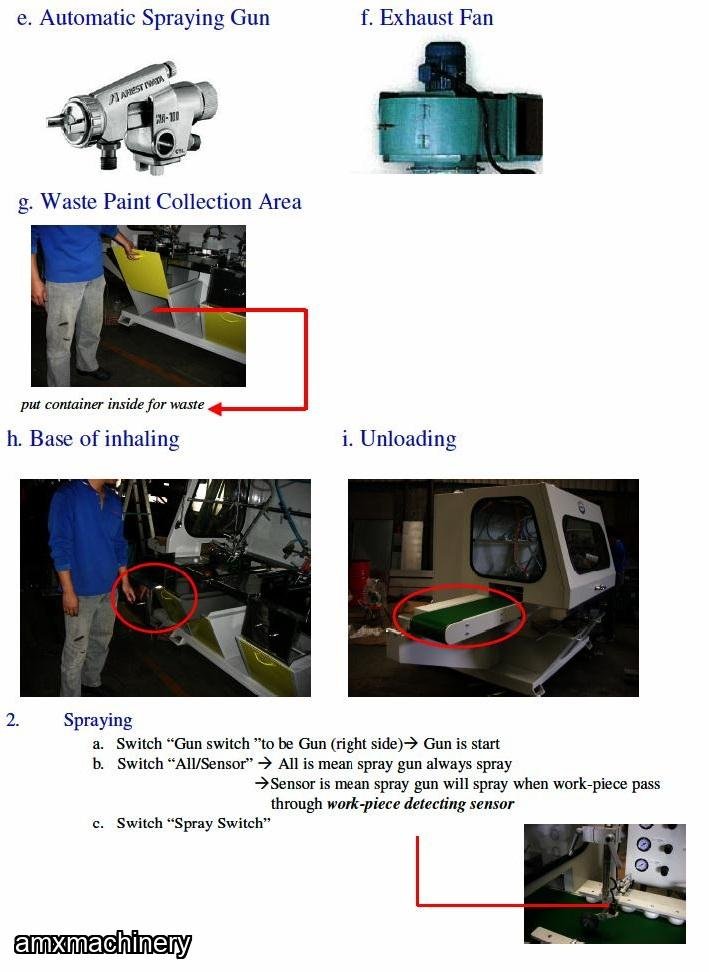

The spray guns are controlled by photocell sensor for auto spray time and saving the spray material.
Individual painting volume adjustment control for each spray gun.
Variable feed speed control for the best finish result.
Two trays to collect unused paints for re-used.
Powerful collection fan for air purifies by filter and totals enclose cabinet to achieve no pollution.
Heavy sheet metal total enclosure frames and see-through cabinet window.
Standard equipment with one pneumatic paint pump and four spray guns.
Extra spray guns are optional.
SPECIFICATIONS | TS-12ATSP | TS-24ATSP | TS-24ATAM | TS-36ATSP |
Max. Working Width | 12" | 24" | 24" | 36" |
Max. Working Thickness | 3-1/2" | 3-1/2" | 3-1/2" | 3-1/2" |
Max. Working Length | Infinite | Infinite | Infinite | Infinite |
Min. Working Length | 19" | 21-1/2" | 21-1/2" | 35" |
Feed Speed (Variable) | 32 ~ 96 FPM | 33 ~ 96 FPM | 34 ~ 96 FPM | 34 ~ 96 FPM |
Air Spray Gun | 4 PCS | 6 PCS | 4 PCS | 9 PCS |
Paint Pump | 1 Set | 1 Set | 1 Set | 3 Set |
Air Mix Spray Gun | - | - | 2 PCS | - |
Piston Pump | - | - | 1 Set | 3 Set |
Exhaust Fan Motor | 3 HP | 5 HP | 5 HP | 5 HP |
Machine Size (L x W x H) | 138" x 62" x 99" | 138" x 73" x 78" | 138" x 73" x 78" | 236" x 102" x 88" |
Net Weight | 3200 LBS | 3960 LBS | 3980 LBS | 5260 LBS |
