Identificador: 1615
Abierta
Descripción

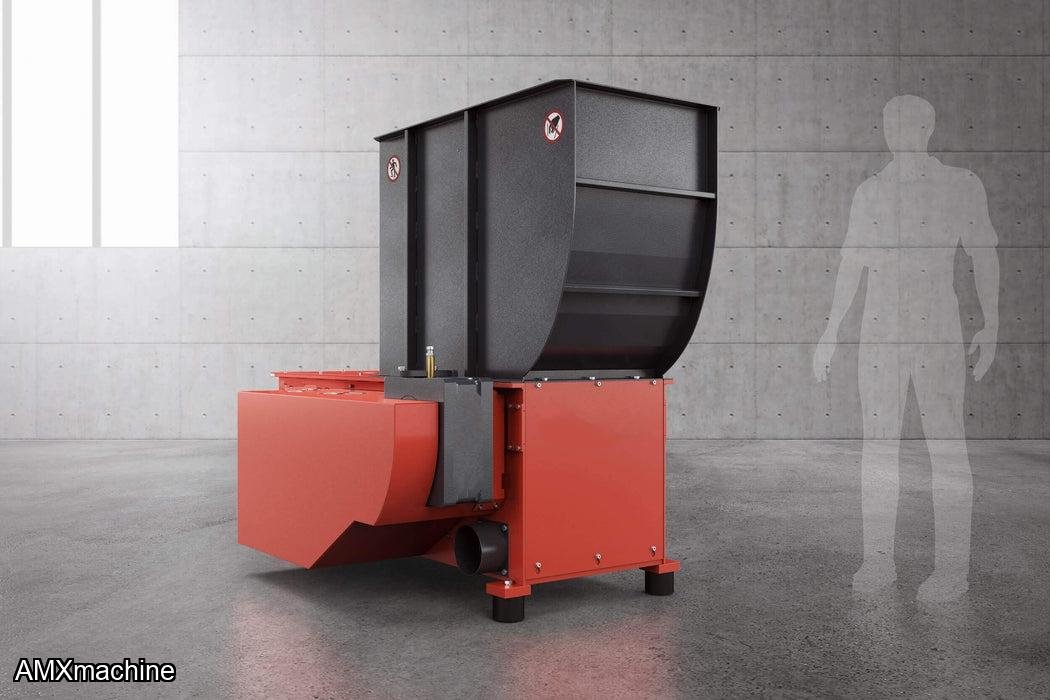

PARTE: 2WE-WL8 - ASTILLADORA DE MADERA - 35 HP - ABERTURA SUPERIOR 39.4” X 49.2”
NUEVA CON GARANTIA
APLICACION: ASTILLAR MADERA Y BRIQUETEAR
MATERIAL: MADERAS SUAVES, PINO PONDEROSA
VOLUMEN REQUERIDO: 500-1000 kg/hr
CAPACIDAD PRODUCCION: 700-900 lbs/hr (300-400 kg/hr)
ALIMENTACION: SUPERIOR
DESCARGA: FONDO ABIERTO
PESO APROXIMADO: 4,400 lbs (2,000 kg)
ENERGIA: 35 HP (26.4 kW), 460 V / 60 Hz / 3 FASES

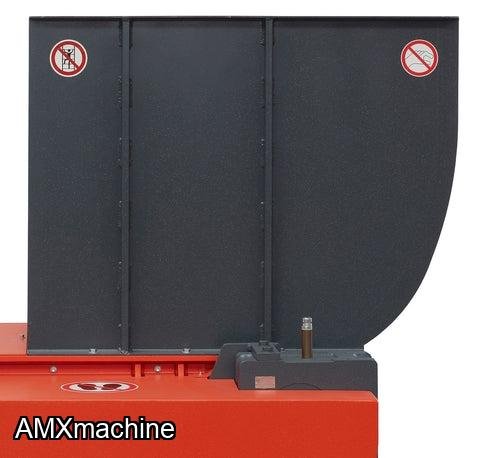

- Hopper Opening: 39.4" x 49.2" (1,000 mm x 1,250 mm)
- Hopper Configuration: 3 straight sides with curved front wall
- Machine Opening: 39.4" x 39.4" (1000 x 1000 mm)
- Hopper Volume: 1.47 yds³ (1.1 m³)

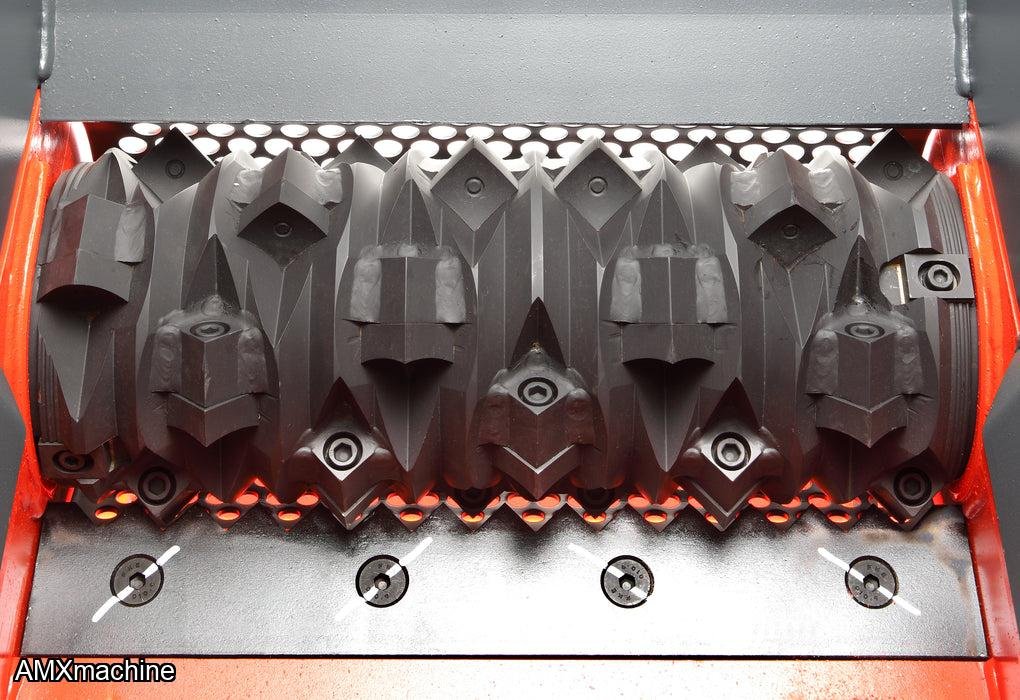

- Rotor: "V-Rotor"
- Rotor Diameter: 10" (252 mm)
- Rotor Length: 39.4" (1000 mm)
- Rotor Speed: 80-120 RPM*
- Type of Cutter: 4X indexable concave shape
- Size of Cutter: 1.57" x 1.57" (40 x 40 mm)
- # of Cutters: 54
- Extraction Requirements: 1900 cfm, 8" (200 mm) diameter
- Weight: App 4,400 lbs (2,000 kg)

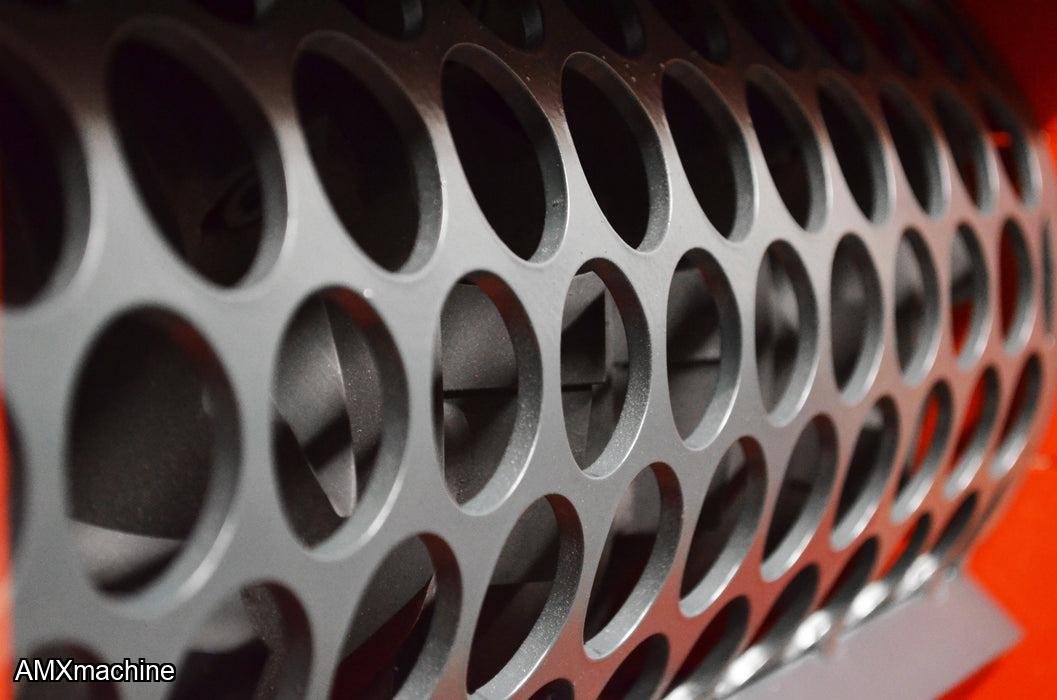

Screen: 12/15mm (5/8") Baffled
Power: 460 V / 60 Hz / 3 Phase
Included:

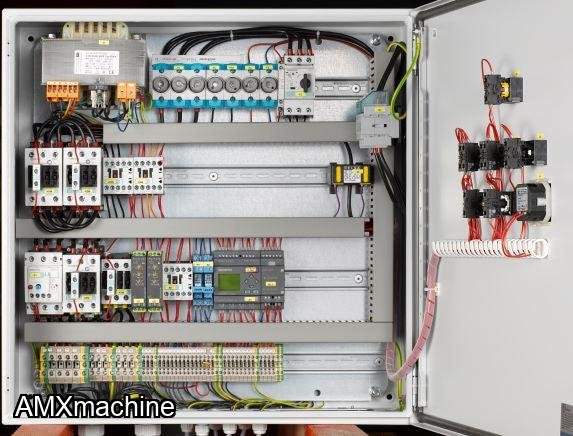

- Control Panel with Star Delta Starter and 16 ft. Cable Bundle
- Allen Bradley PLC w/ Touch Screen HMI
- Anti Vibration Feet
- V-Rotor
- Two (2) Rows of Rotor Knives
- Reverse Counter
- Fast Hydraulic Ram

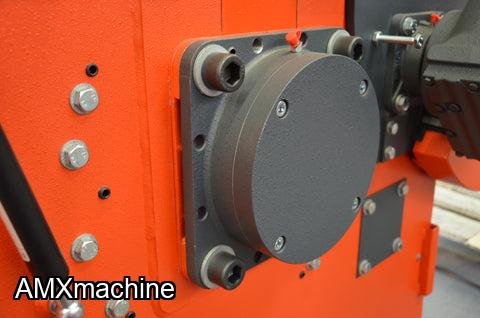

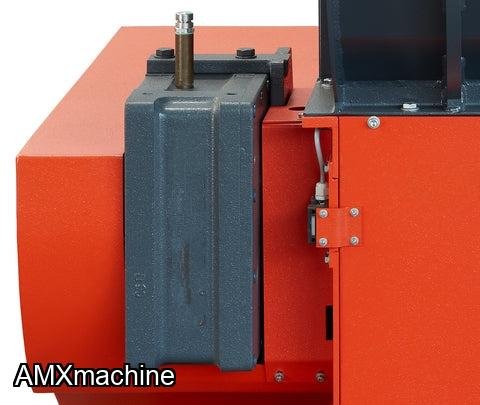

- Gearbox with Limit Switch
- Log Spacer Hopper
- 1-Sided Bottom Serrated Ram
Pago y Devoluciones
- Forma de pago
- Transferencia/Deposito Bancario
