Descripción
PARTE: 2GM-PRB - DOBLADORA DE TUBO HIDRAULICA 2''
3 HP Motor, rated at 220V, three phase. Gear driven manual positioning. 2” Dia. of roller shaft, 7-1/2” roller Dia.
- ISO 9001 certified

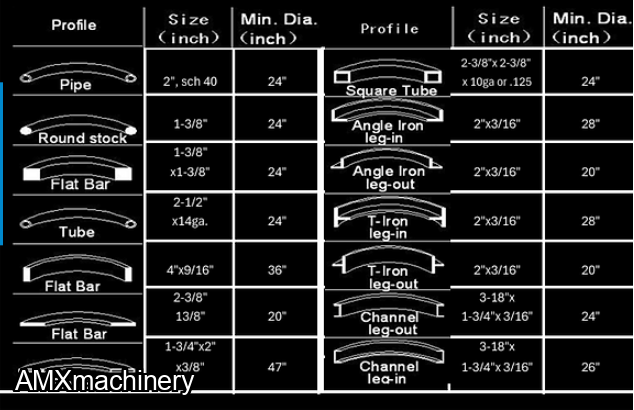

- 2” schedule 40 pipe is the maximum bending capacity, 2.5” round tube 14 Ga. and 2” square tube
- Easy to operate in two positions; vertically and horizontally on its back
- DRO - Digitally displays your exact position and ensures repeatability
- Heavy Duty 4HP AC main motor
- 1 - Top forming roll (hydraulic driven)
- 2 - Driven bottom rolls
- Robust, all steel and welded framework
- Quiet, compact, hydraulic system that ensures precision and improves productivity
- Adjustable pressure control valve
- Equipped with 1-set of universal forming rolls suitable for many applications One set of universal combination rollers can do most works except pipes & round tubes (will need special dies)
- Digital Readout (ensures repeatability and digitally displays your exact position)
- Left and right guide rollers (easily adjustable)
- Foot pedal (controls forward and reverse)
- Digital Readout (digital display)
- 4-metal support legs for horizontal position
Specifications | |
Model | PRB-55-1PH |
Roll Adjustment | Manual |
Dia. of roller | 7-1/2” |
Dia. of roller shaft | 2” |
Roller speed | 16 RPM |
Main Motor | 4 HP Single Phase Prewired: 220VAC | 15A |
Dimensions | 40in x 35in x 65in |
