Descripción

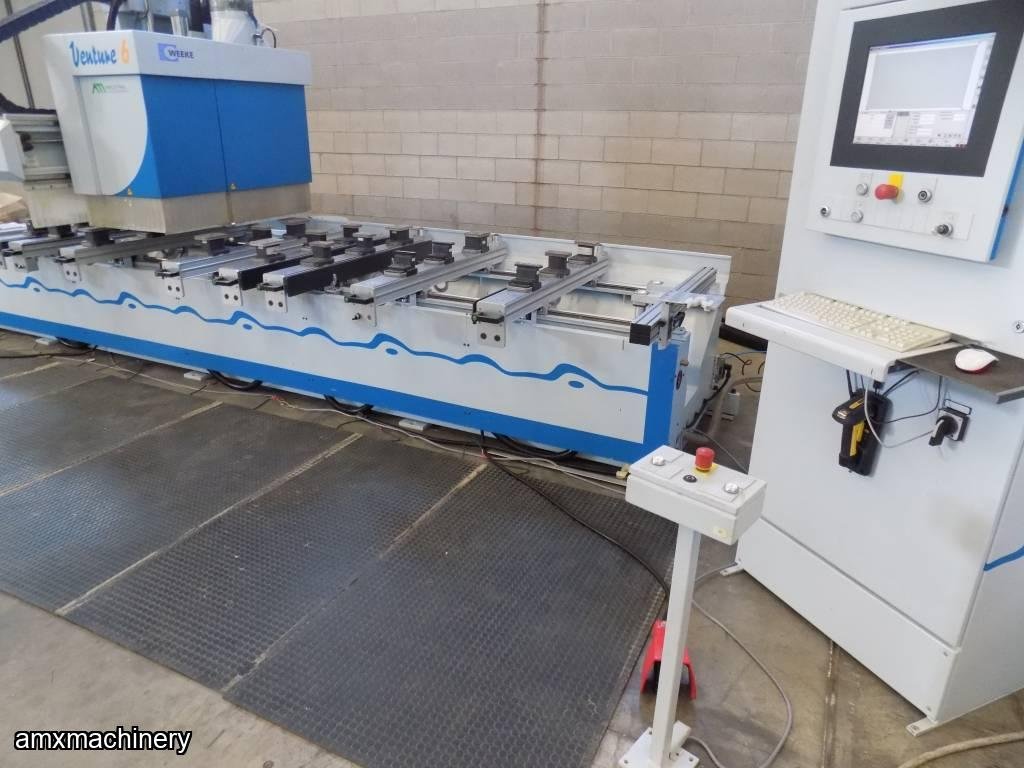

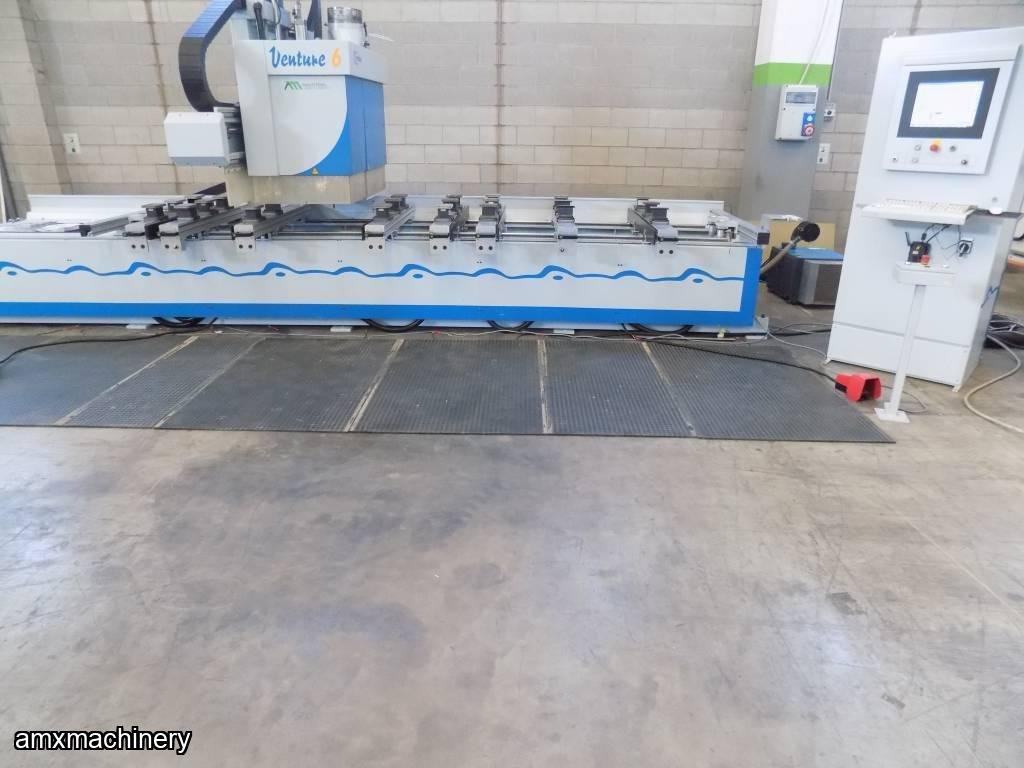

PARTE # 11790 - CENTRO DE TRABAJO CNC – WEEKE VENTURE 6
En muy buenas condiciones
6 meses de garantia en partes mecanicas
Production Year: 2005
Control: WOOD WOP 5.0
Nr. of axes: 4
Cones type: HSK
Working unit: BARS
Availability: IN STOCK
FEATURES

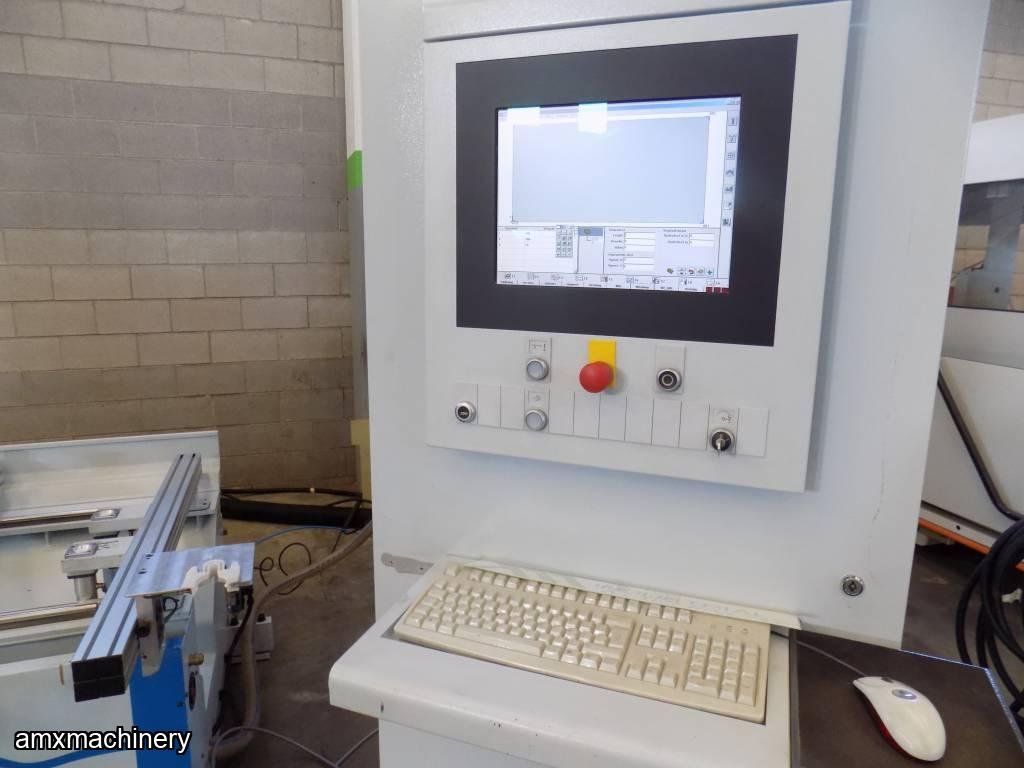

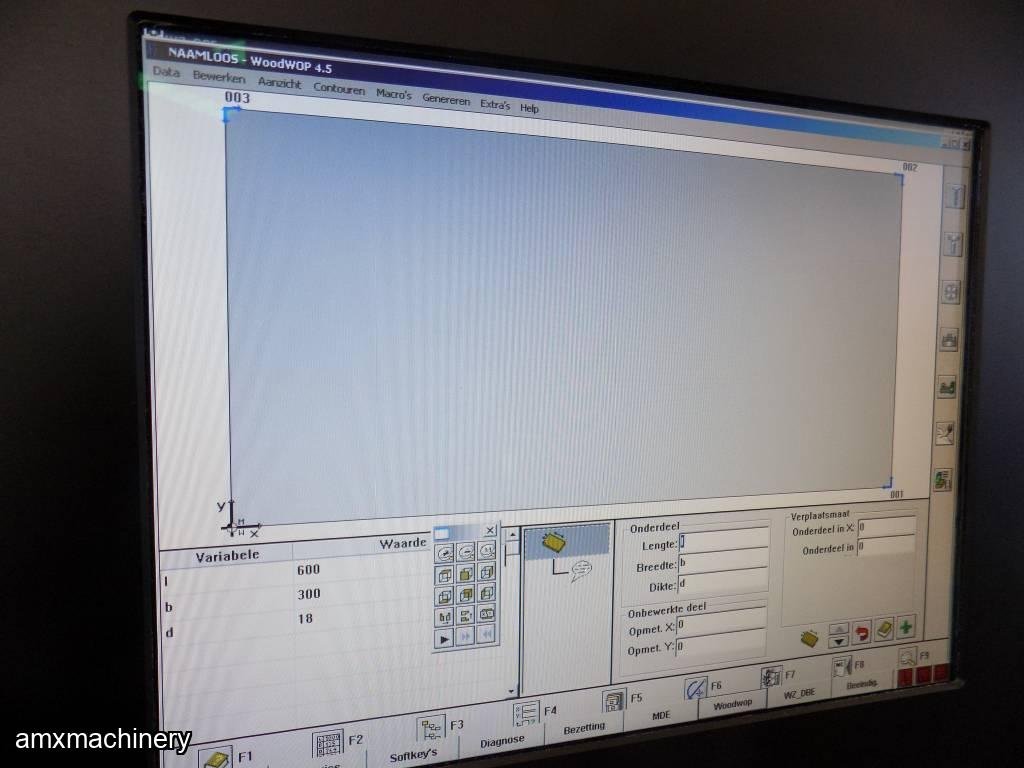

Control and program system WOOD WOP 5.0
Computer, keyboard and mouse
Monitor 15”
CD-ROM
N° 2 working areas

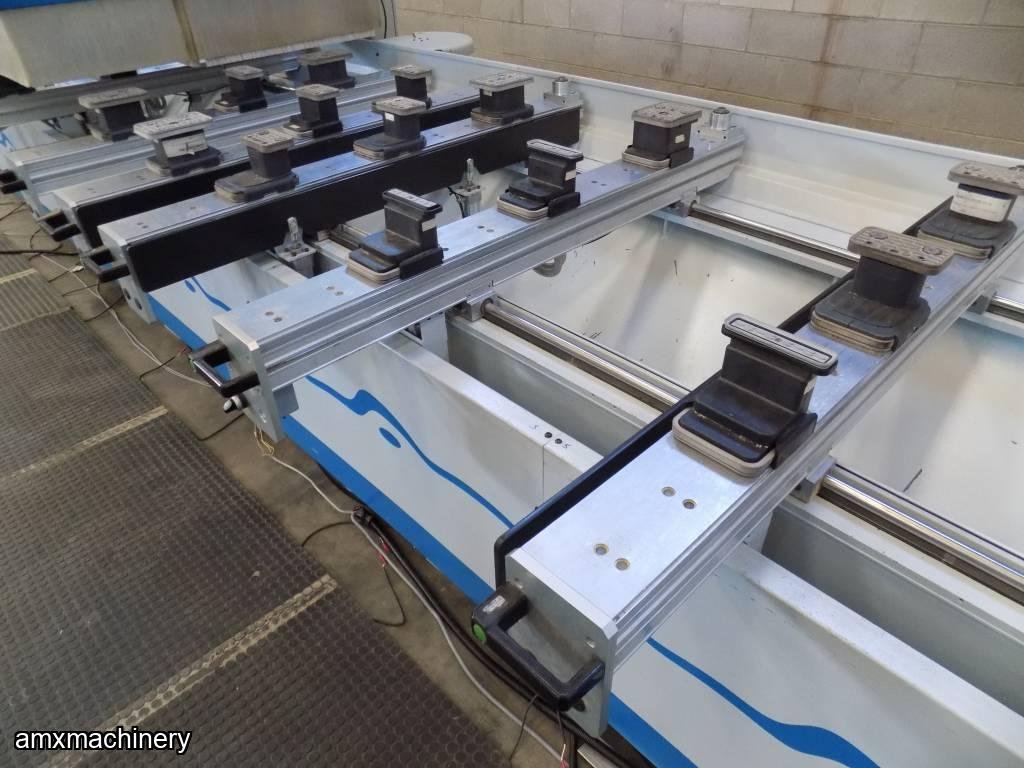

N° 8 working bars with manual adjustment for vacuum cups support with LED system for an easier and faster positionment
N ° 6 bachelite lifting bars for panel lifting during loading or unloading process
N° 3 vacuum cups with manual adjustment each bar with LED system fora n easier positionment

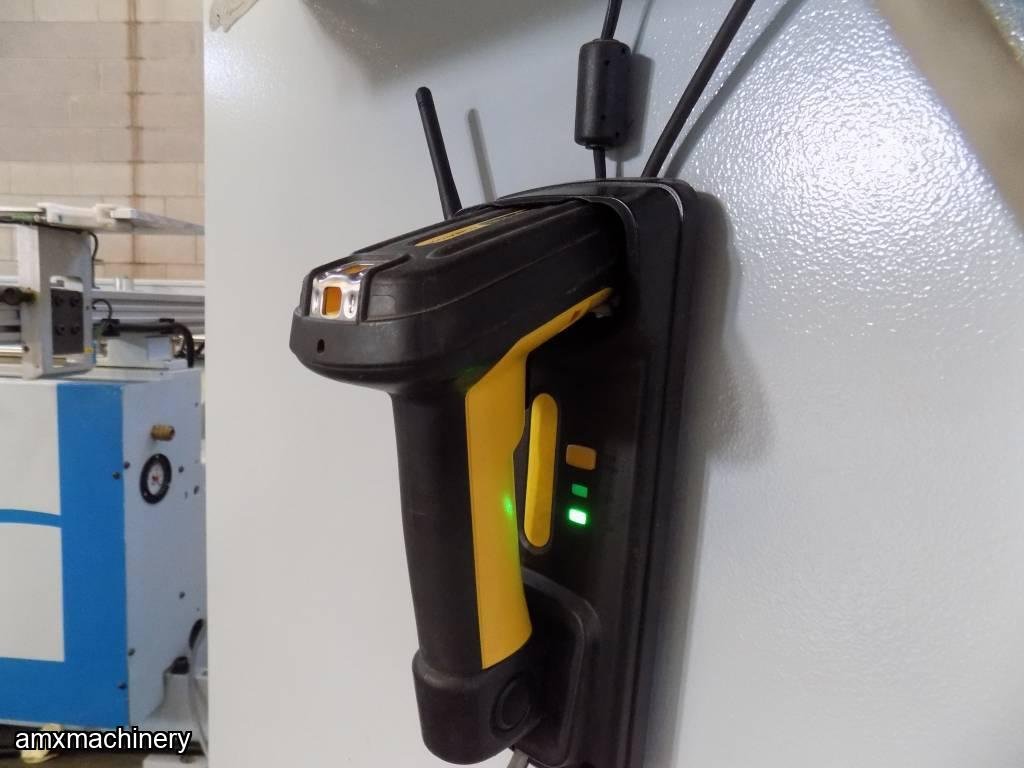

Bar code reader for an automatic programmation of the machine

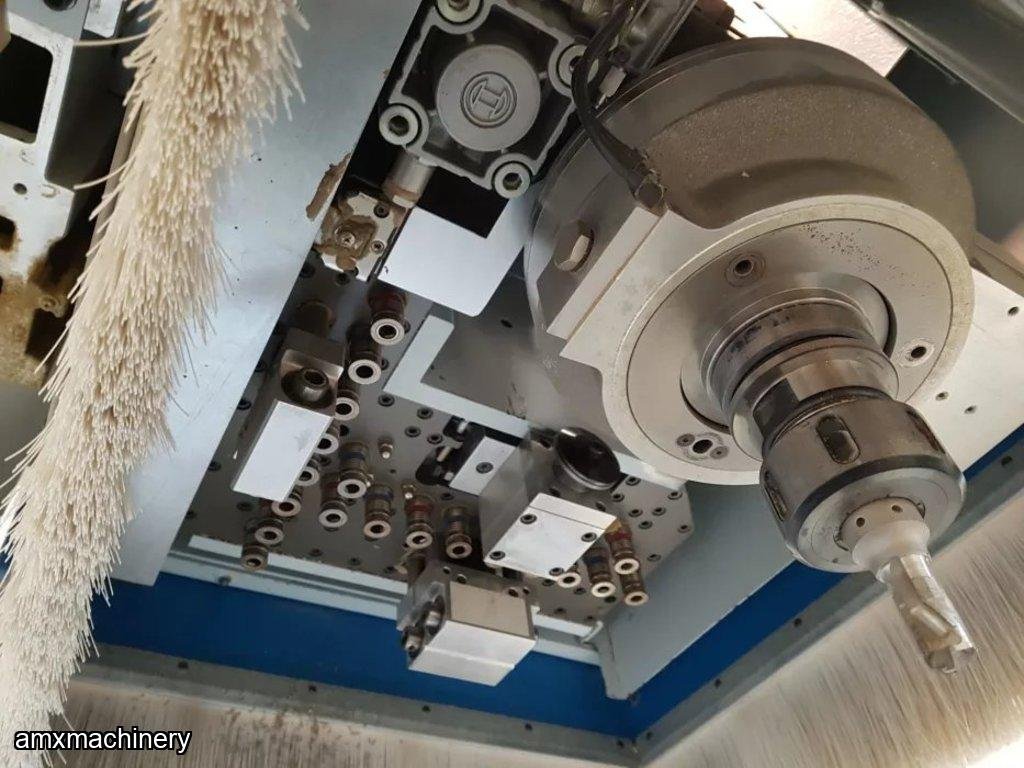

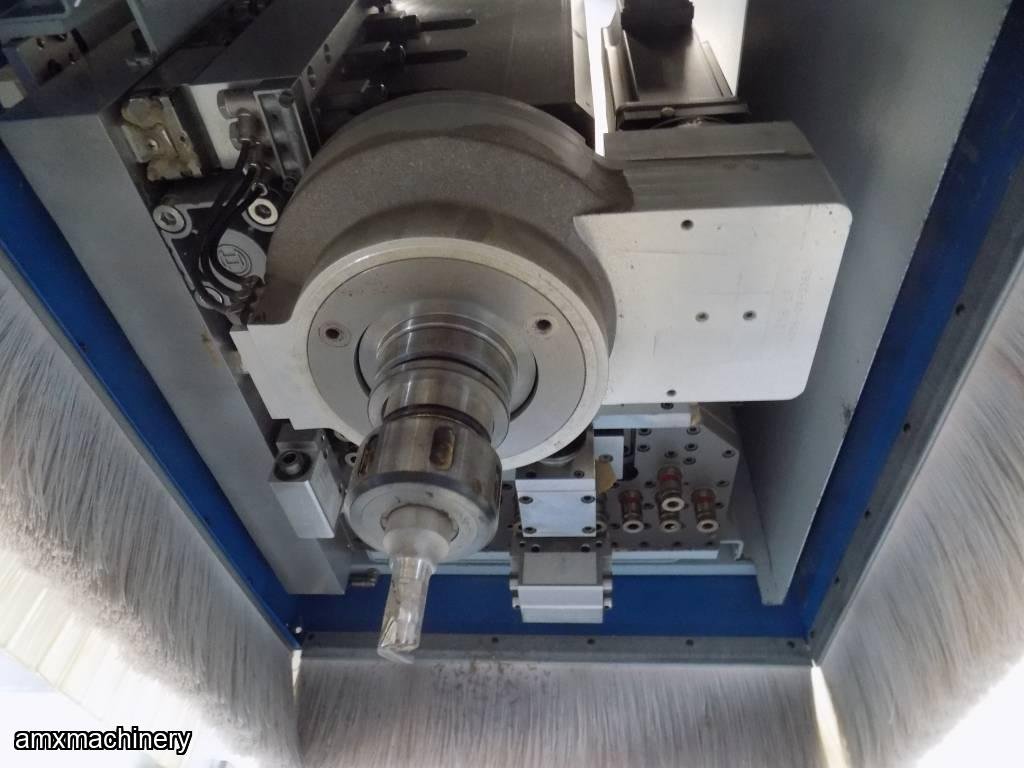

N° 1 vertical router with C axe, automatic tool changer

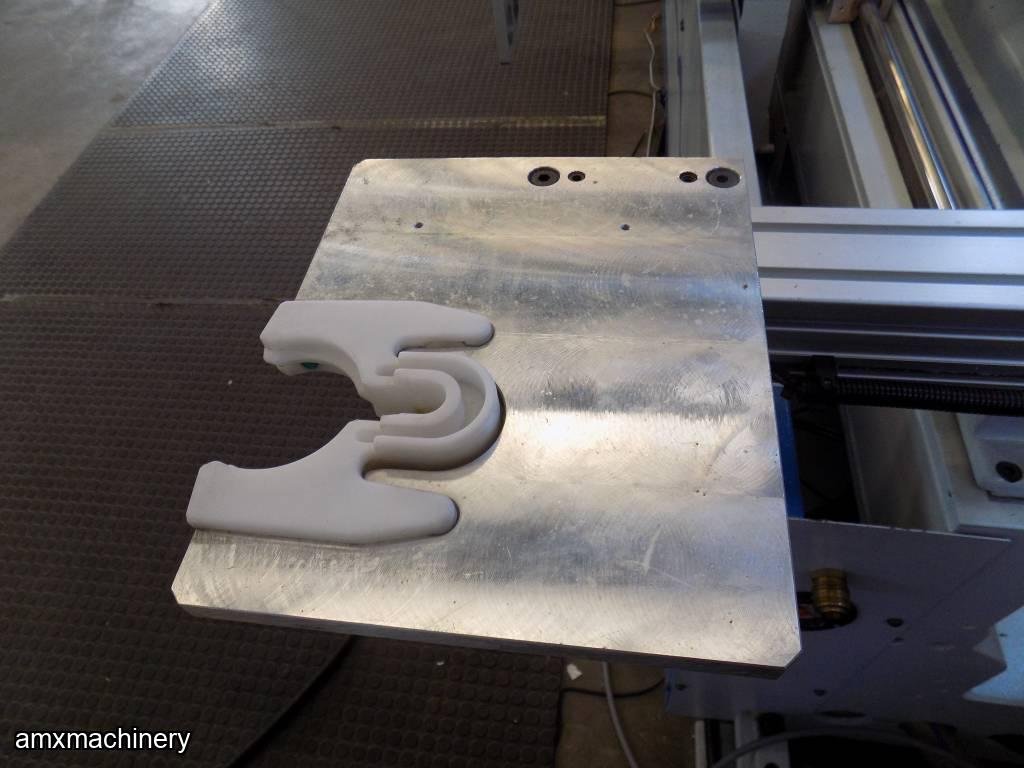

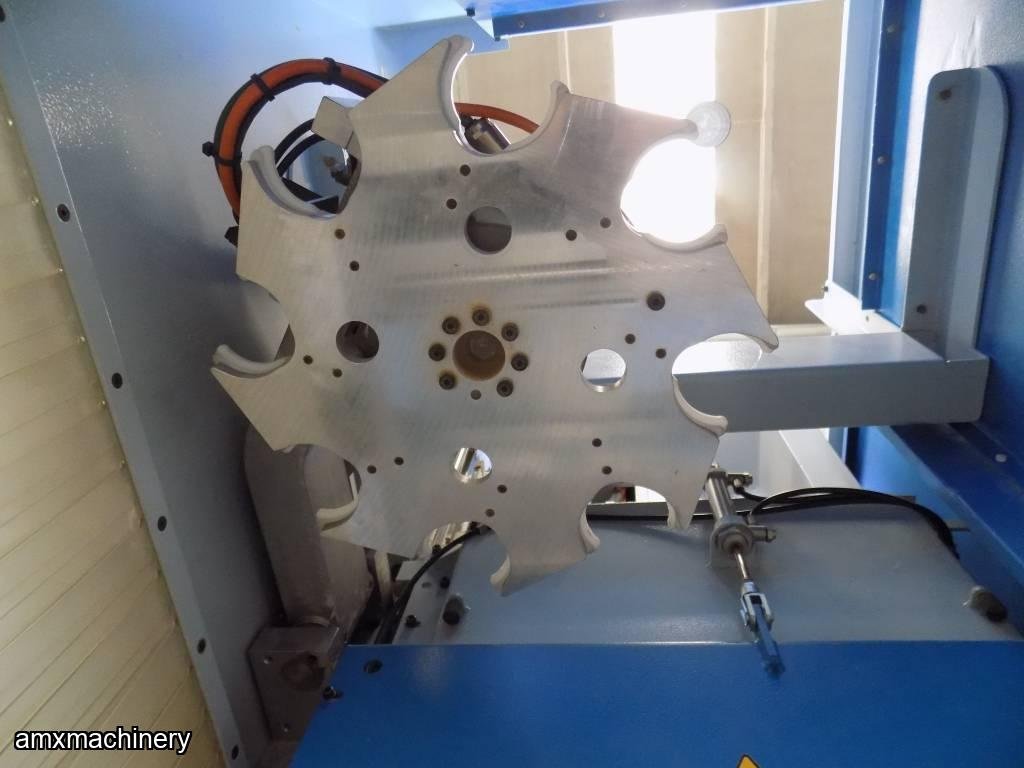

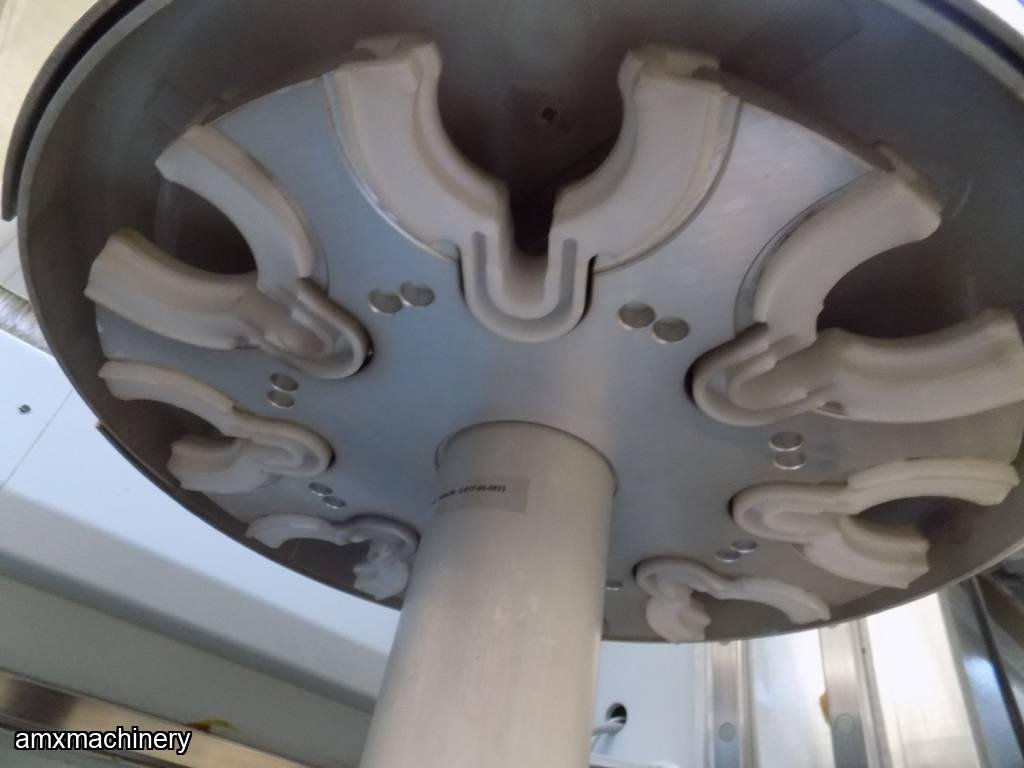

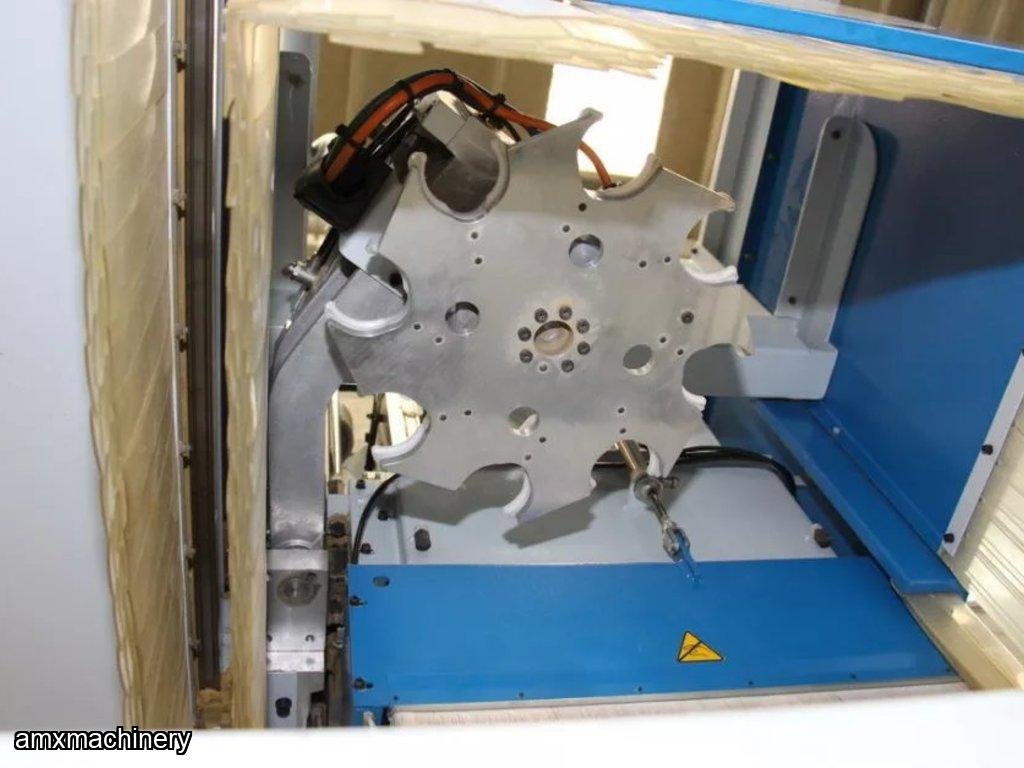

Automatic tool changer system with n 8 8 1 positions on the working head / on machine rear side / on machine side

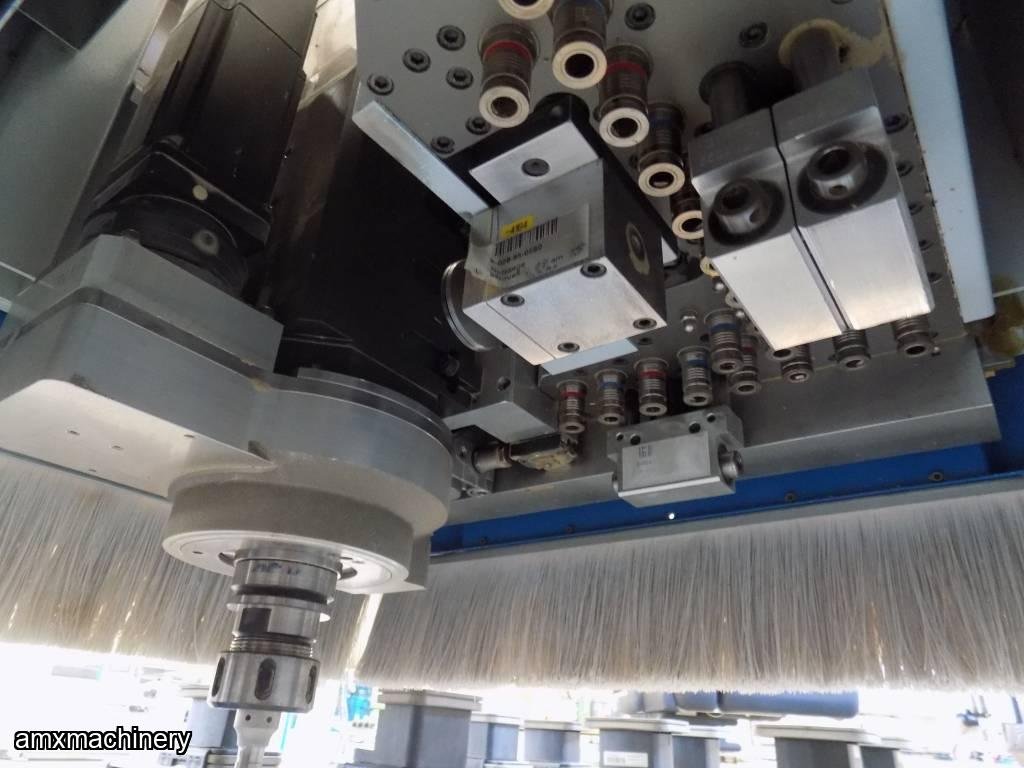

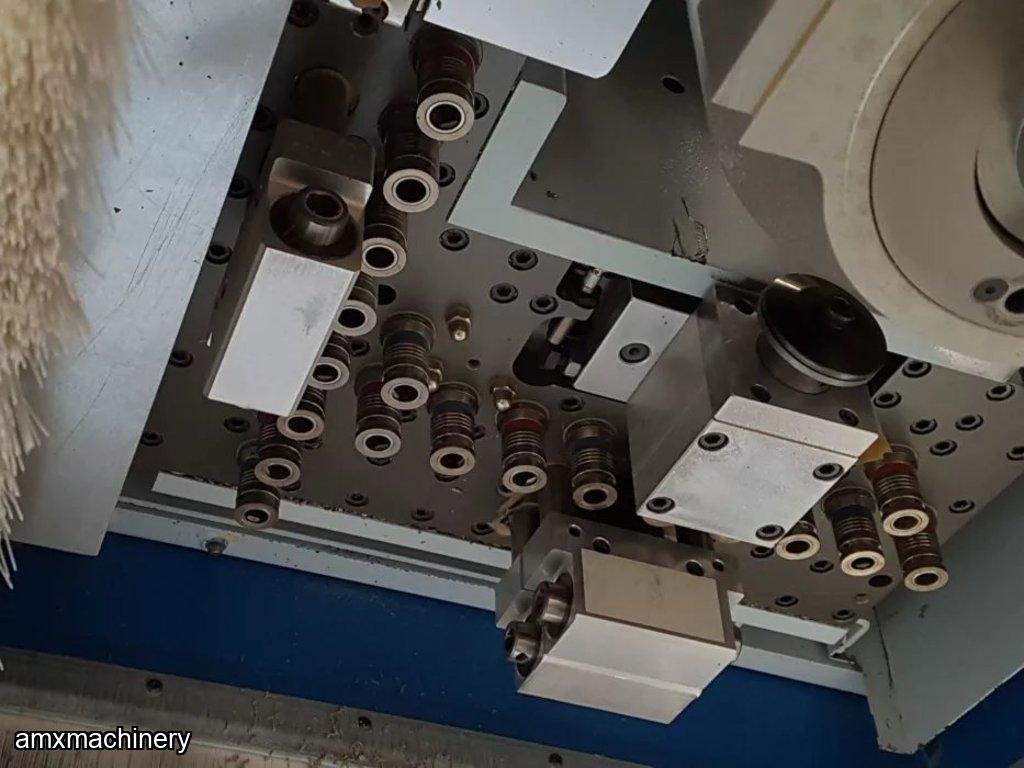

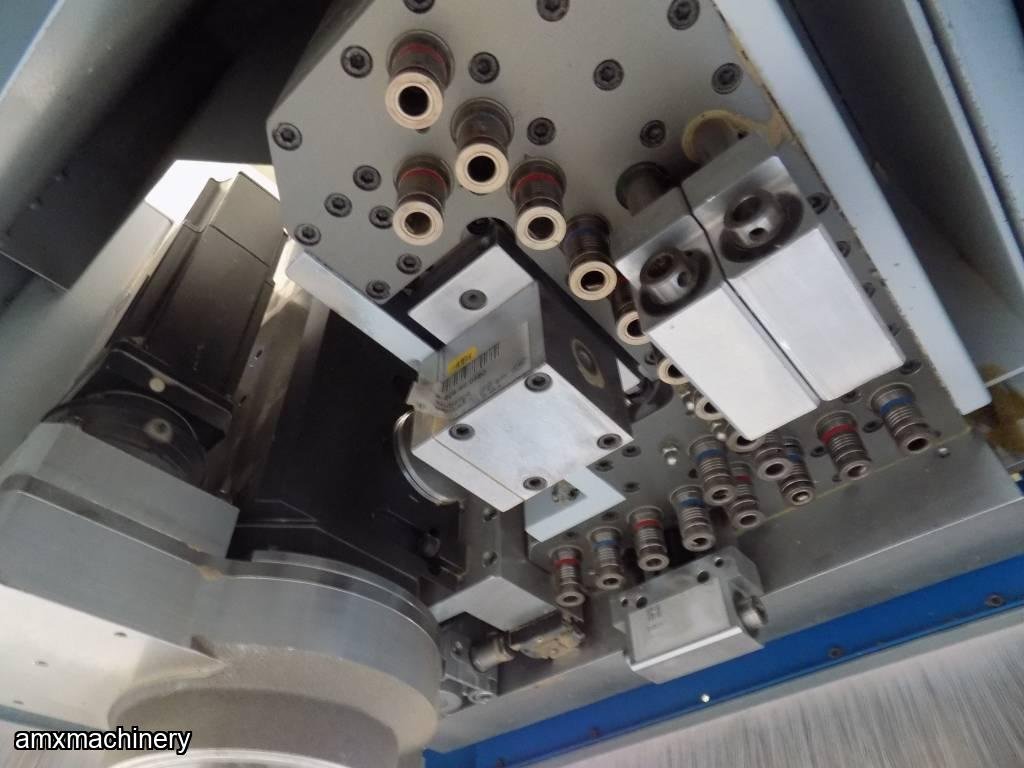

Boring head with n 25 spinale composed as below:
N. Verical X 11
N. Vertical Y 8
N. Horizontal X 4
N. Horizontal Y 2
Saw blade unit for grooving diameter 100 mm
Front Safety system with carpets
Safety grids
Automatic lubrification
Working dimensions X: mm 4300
Working dimensions Y: mm 1300
Working dimensions Z: mm 125
N° of axes: 4
Automatic tool changer: Yes
N° of bars: 8
Boring head: Yes
Saw blade: Yes

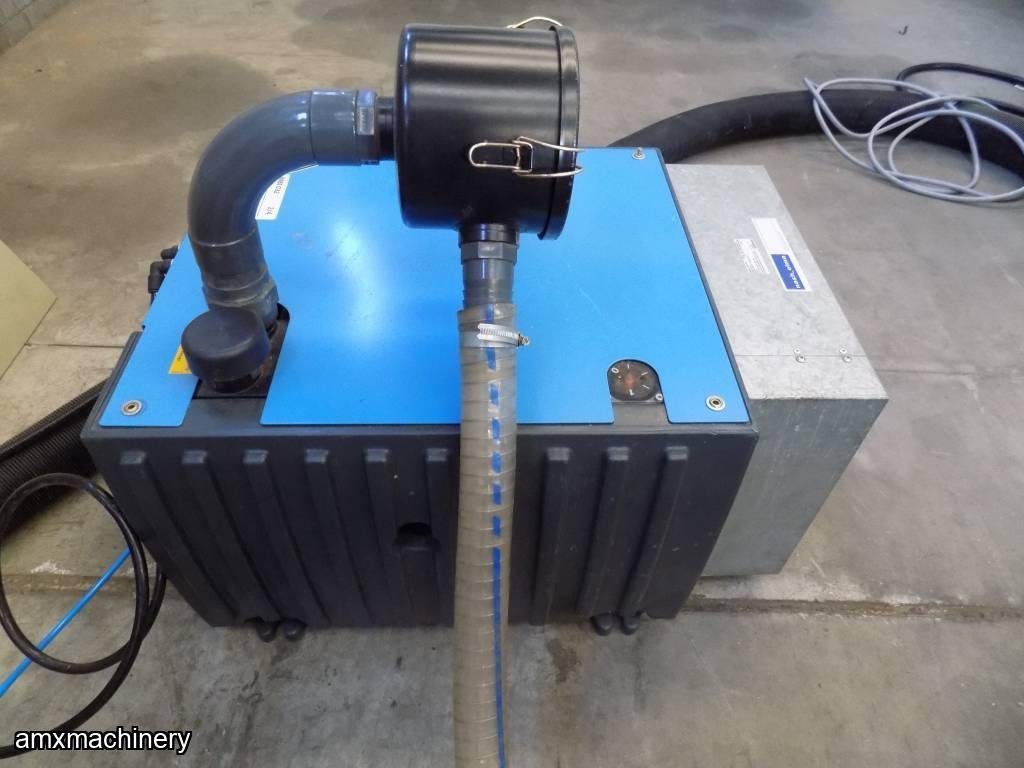

Vacuum pump mc/h: Yes
Machine conditions: top conditions
